PF1017 | 45° V-Shaped Corner LED Profile for Seamless Architectural Integration
The PF1017 is a precision-engineered 45° corner aluminum LED profile, designed for seamless integration into cabinetry, shelving, and architectural detailing. Constructed from high-grade 6063-T5 aluminum, it accommodates LED strips up to 10mm wide, ensuring efficient heat dissipation and a sleek finish. With multiple diffuser options and a minimalist design, it offers both functionality and aesthetic appeal for various lighting applications.
Key Features
- Form Factor & Size: 16mm × 16mm triangular profile for 45° corner installations
- Mounting Type: Surface mount using adhesive tape or included brackets
- Wattage Range: Supports LED strips up to 15W/m
- Lumen Output: Dependent on installed LED strip; profile supports high-output applications
- Optics: 100° beam angle with diffuser options for tailored light distribution
- CCT Range: Compatible with LED strips ranging from 2700K to 4000K, including Tunable White, RGB, and RGBW
- IP Rating: IP20 – suitable for indoor applications
- Accessories: Includes end caps and mounting clips; diffusers available in opal, semi-clear, and clear finishes
- Control/Driver Options: Compatible with various LED drivers; not included
Ideal Applications

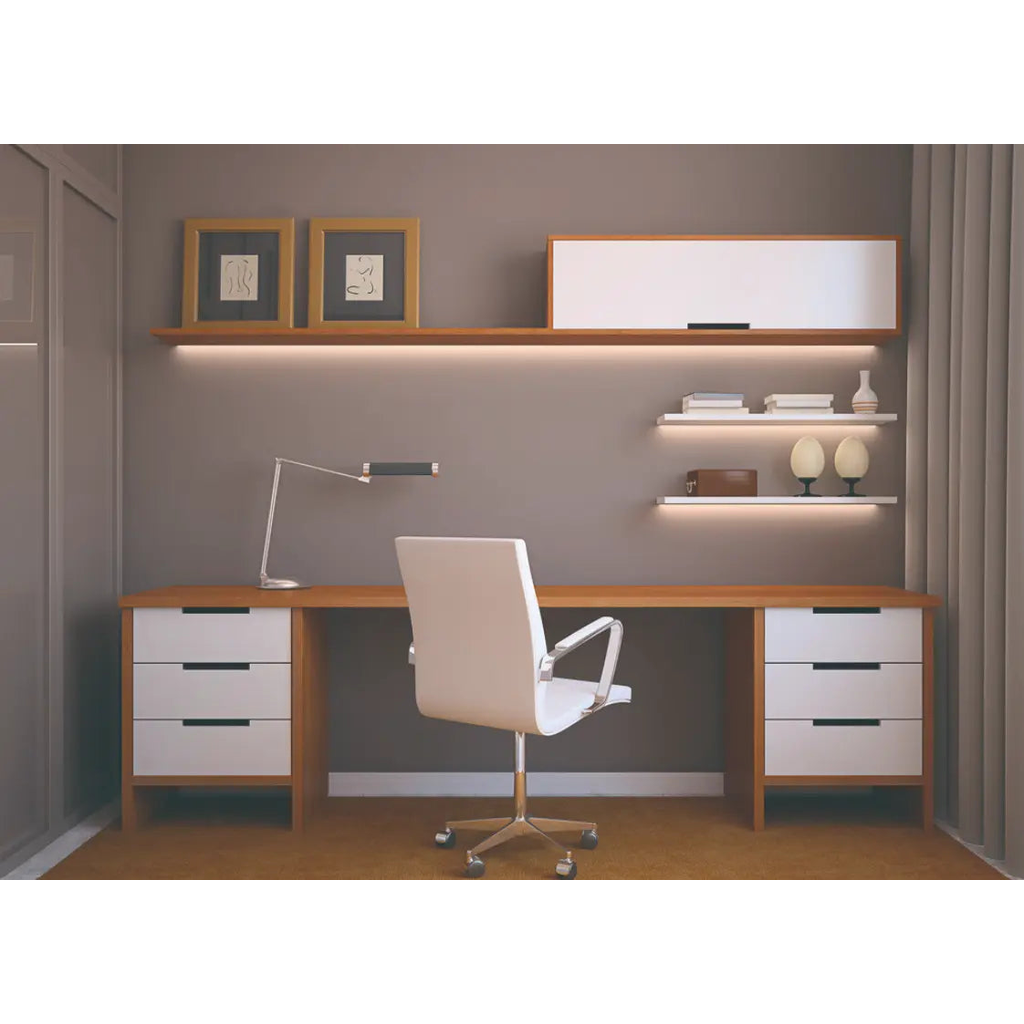

- Under-cabinet and shelf lighting in kitchens and workspaces
- Accent lighting in retail displays and showcases
- Cove lighting in residential and commercial interiors
- Staircase and corridor illumination
- Integrated lighting in furniture and cabinetry
- Architectural detailing in hotels and hospitality venues
Technical Summary
| Specification | Details |
|---|---|
| Power Range | Up to 15W/m |
| Lumen Output | Dependent on LED strip used |
| Efficacy | Dependent on LED strip used |
| Dimensions | 16mm × 16mm |
| Max LED Width | 10mm |
| CCT Range | 2700K – 4000K, Tunable White, RGB, RGBW |
| CRI | Dependent on LED strip used |
| Beam Angles | 100° |
| IP Rating | IP20 |
| Driver Type | Not included; compatible with standard drivers |
| Mounting Type | Surface mount |
| Diffuser Options | Opal, semi-clear, clear |
| Material & Finish | 6063-T5 aluminum; silver anodized, powder-coated white/black |
| Lifetime | Dependent on LED strip used |
| Warranty | 5 years |
Why Specify PR1017?
The PF1017 stands out for its precise 45° design, facilitating seamless corner installations that enhance both form and function. Its robust aluminum construction ensures effective heat dissipation, prolonging the lifespan of LED strips. With versatile diffuser options and compatibility with various LED strips and drivers, including Tunable White, RGB, and RGBW, it offers designers and architects a reliable solution for sophisticated lighting applications.
