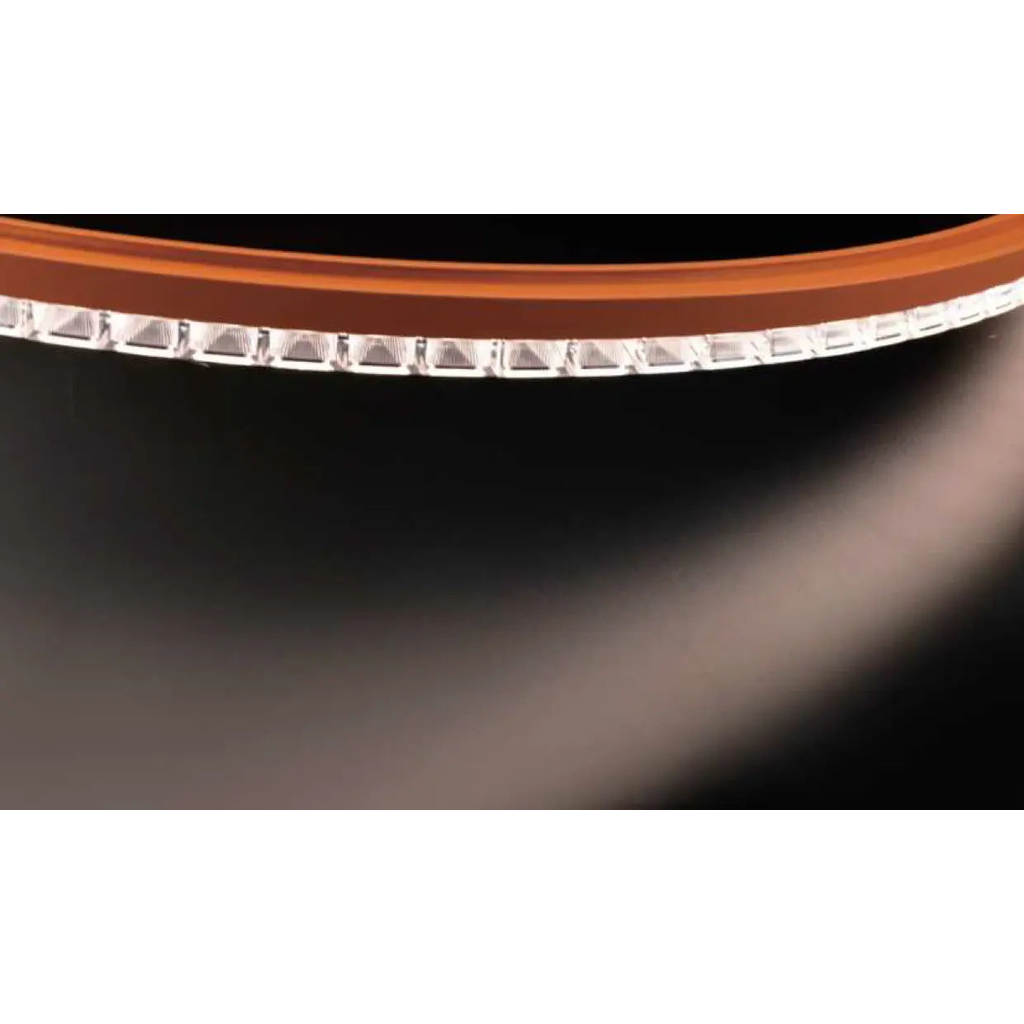

PF1023 | Circular Suspended Profile with UGR<19 Optics

The PF1023 is a circular suspended LED profile crafted from high-quality extruded aluminium and engineered for glare-free ambient lighting. Designed with four diameter options; 460mm, 650mm, 1050mm, and 1250mm — this anti-glare fixture features integrated LED modules, an optical lens (UGR<19), and clean suspension detail for high-end architectural spaces.

Key Features

• Circular form factor in four standard sizes: Ø460 / Ø650 / Ø1050 / Ø1250mm
• Suspended mounting via discreet steel wire and central bracket
• Wattage range: 28W–78W depending on diameter
• Lumen output: 2600lm–7254lm across sizes
• Integrated anti-glare lens: UGR<19 for visual comfort
• CCT compatibility: Tuneable White, RGB, and RGBW available
• Ingress protection: IP20 rated for indoor environments
• Diffuser/accessories: UGR<19 lens, steel wire, hanging bracket, integrated LED module
• Driver options: Compatible with remote drivers (not specified in catalogue)

Ideal Applications

• Boardrooms & executive meeting spaces
• Commercial reception areas
• Hospitality venues & boutique hotels
• Circular dining or conference tables
• Contemporary atriums and lobbies
• High-end retail displays

Technical Summary

• Power range: 28W–78W
• Lumen output: 2600lm–7254lm
• Efficacy: Not stated
• Dimensions: Ø460mm / Ø650mm / Ø1050mm / Ø1250mm
• Max LED width: Integrated (not exposed)
• CCT range: Tuneable White, RGB, RGBW
• CRI: Not stated
• Beam angles: Not specified (UGR<19 lens included)
• IP rating: IP20
• Driver type: Remote (not specified)
• Mounting type: Suspended
• Diffuser/accessory options: UGR<19 lens, hanging bracket, steel wire
• Material & finish: Extruded aluminium, Core and Creative Colour finished



Why Specify PF1023?

The PF1023 offers a visually striking, low-glare circular luminaire with exceptional finish and clean suspension detailing. Available in bold diameter options, it delivers architectural elegance while supporting practical output levels, perfect for commercial spaces seeking style without compromising comfort. Its anti-glare lens and integrated build make it a reliable go-to for specifiers targeting high-end interiors.
