PF1024 | Slimline Suspended Ring with Frosted Diffuser

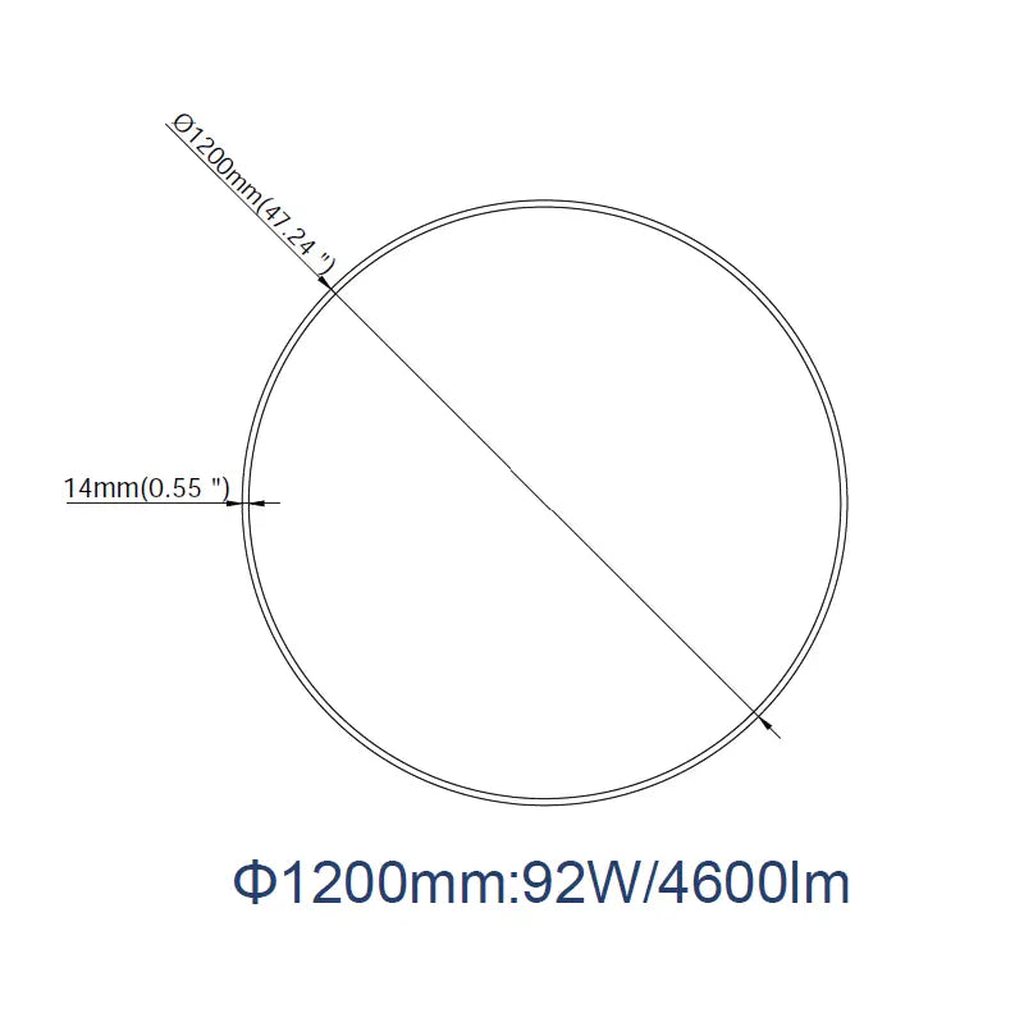

The PF1024 is a minimalist circular LED profile, precision-engineered from extruded aluminium with a discreet 14mm x 40mm profile. It delivers clean, diffused illumination through a PMMA frosted cover and is available in three generous diameters: Ø600mm, Ø900mm, and Ø1200mm. Designed for lightweight suspension and aesthetic impact in contemporary commercial environments.

Key Features

• Ultra-slim 14×40mm profile for modern suspended installations
• Available diameters: Ø600 / Ø900 / Ø1200mm
• Wattage range: 45W–92W
• Lumen output: 2250lm–4600lm
• PMMA frosted diffuser for soft, uniform illumination
• CCT compatibility: Tunable White, RGB, RGBW
• IP rating: IP20
• Mounting: Suspended via steel wire and bracket
• Accessories: PMMA cover, LED strip, hanging bracket, steel wire

Ideal Applications

• High-end retail ceilings
• Open-plan coworking zones
• Restaurant and lounge areas
• Boutique hotel foyers
• Design studios and creative offices
• Minimalist architectural spaces

Technical Summary

• Power range: 45W–92W
• Lumen output: 2250lm–4600lm
• Efficacy: Not stated
• Dimensions / length: Ø600mm / Ø900mm / Ø1200mm
• Max LED width: Not specified
• CCT range: Tuneable White, RGB, RGBW
• CRI: Not stated
• Beam angles: Diffused (via frosted PMMA cover)
• IP rating: IP20
• Driver type: Not stated (external assumed)
• Mounting type: Suspended
• Diffuser/accessory options: PMMA frosted cover, LED strip, steel wire
• Material & finish: Extruded aluminium; Black, White, Terra Red, Blue, Green


Why Specify PF1024?

The PF1024 is a sleek architectural ring light designed to elevate clean, modern interiors. Its slim form factor and frosted diffuser deliver high-quality ambient light with a lightweight footprint. Ideal for designers and specifiers seeking circular form without visual clutter, it’s a versatile option with real design clarity.
