PF1028 | Mid-Width Bendable LED Profile for Radius and Linear Runs

The PF1028 is a medium-width flexible LED profile measuring 37.84mm x 13.62mm, designed to meet the demands of both straight and curved architectural applications.

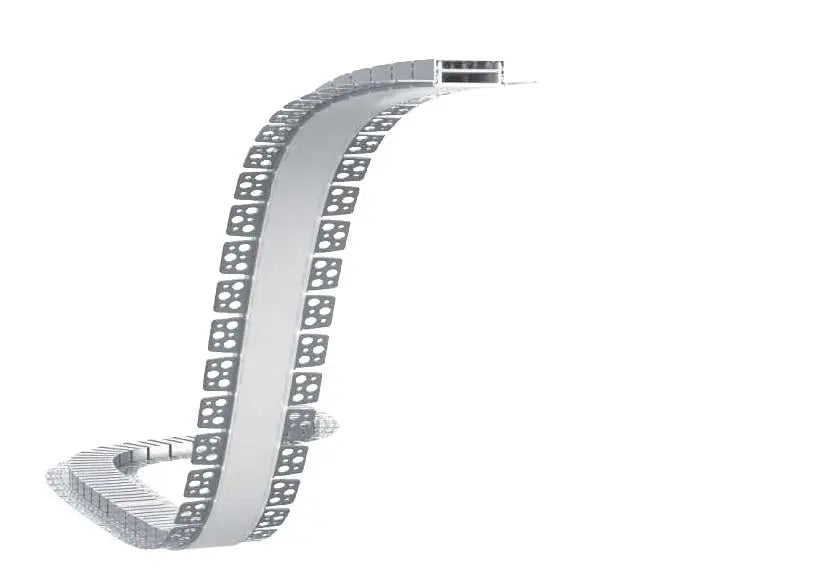

Supporting both top and side bends (up to 900mm), this profile delivers a perfect balance between flexibility, form, and thermal mass, ideal for continuous lighting lines with architectural flow.

Key Features

• 37.84×13.62mm mid-width profile for versatile installations

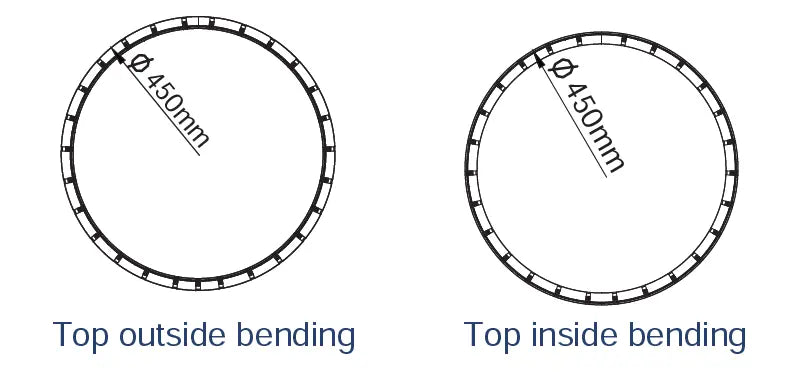

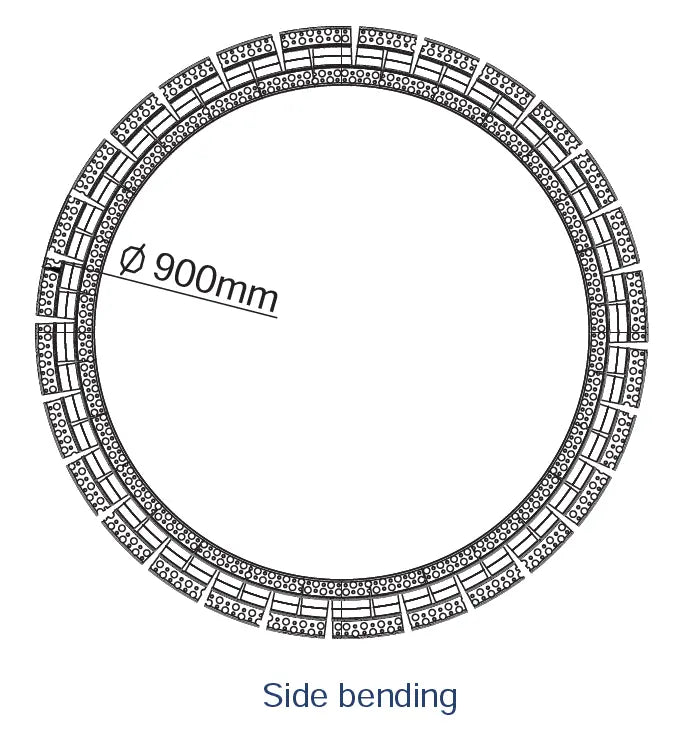

• Supports side and top bending 450mm to 900mm radius
• Max length: 5 metres
• Material: Anodised extruded aluminium, black or white finish
• Accessories: Silicone diffusers and end caps
• CCT compatibility: Tuneable White, RGB, RGBW
• IP rating: IP20

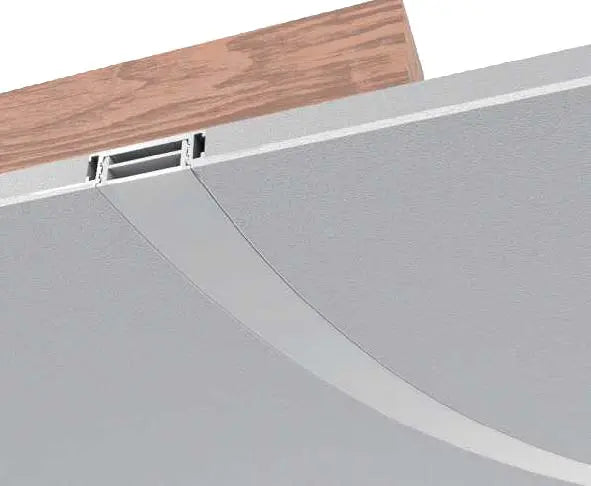

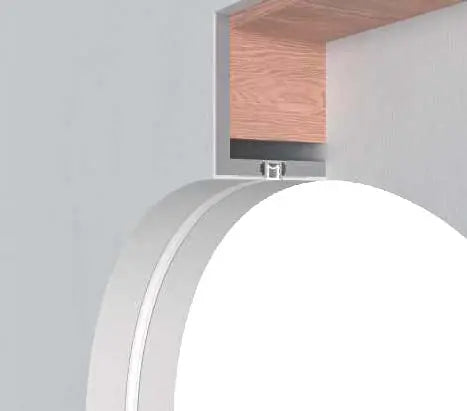

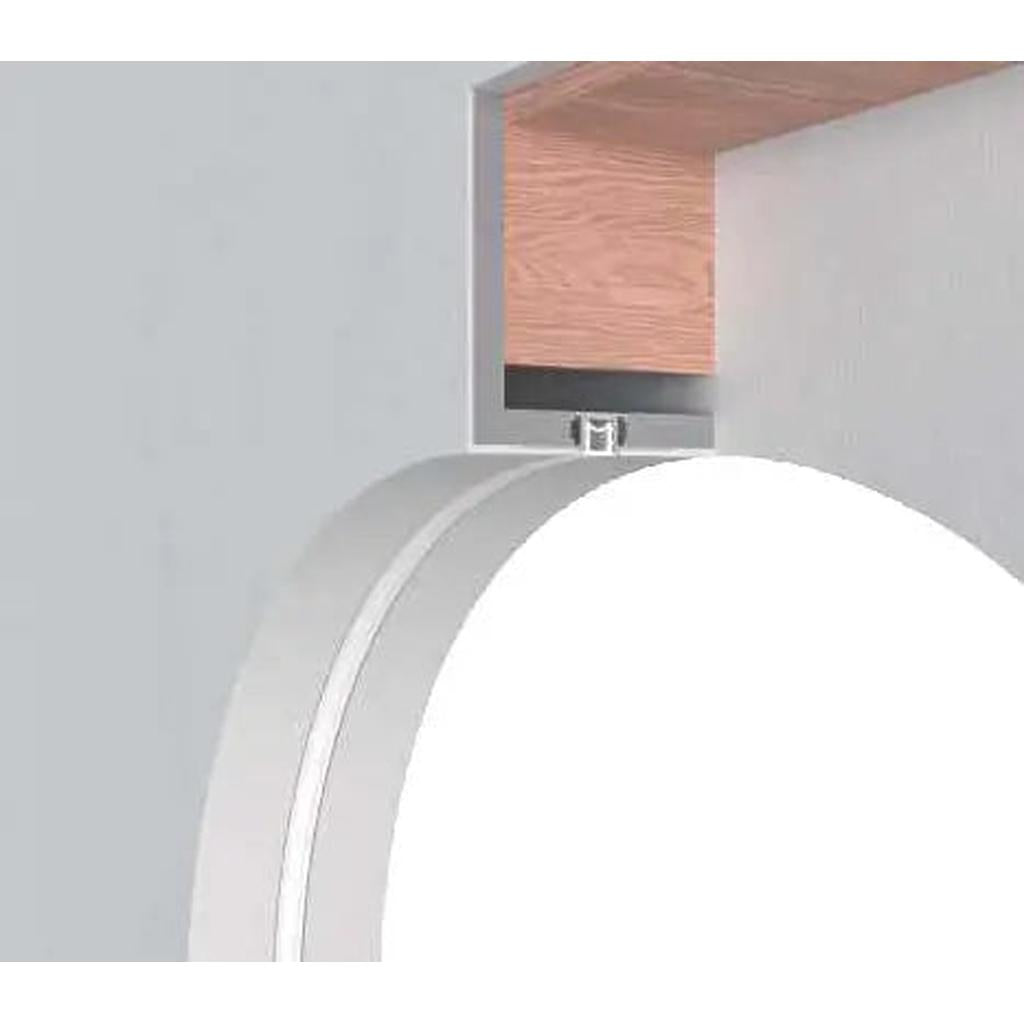

• Mounting type: Surface or free-form curves

Ideal Applications

• Architectural contours and circular lighting lines
• Retail display surrounds and features
• Hospitality soffits and recessed curves
• Joinery elements and fitted furniture
• Brand spaces and creative installations
• Indirect perimeter lighting in commercial zones

Technical Summary

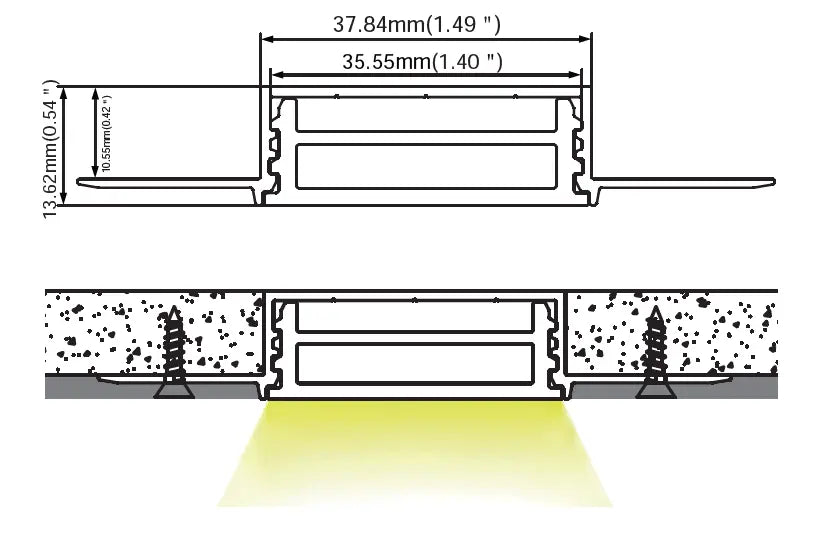

• Dimensions: 37.84×13.62mm
• Max LED width:
• CCT range: Tuneable White, RGB, RGBW

• Beam angles: Dependent on internal LED and diffuser
• IP rating: IP20

• Mounting type: Flexible surface mount
• Diffuser/accessory options: Silicone diffusers, end caps
• Material & finish: Extruded aluminium, Anodised White or Black

Why Specify PF1028?

The PF1028 is the go-to profile for designers who need architectural scale in a bendable format. Its proportions strike a smart balance, wide enough to carry serious light, yet flexible enough to contour with elegance. Ideal when linear light needs to curve without compromise.
