PF1029 | Flush Wall-Recessed LED Profile with Plaster-In Finish

The PF1029 is a recessed LED profile engineered for seamless integration into plasterboard walls. Measuring 37.6mm x 15mm, it features a stepped-edge body for direct plaster-in installation and a glare-reducing design.

With a full 5m extrusion length and clean accessory suite, this profile delivers a flush, professional finish that disappears into the architecture, until you switch it on.

Key Features

• 37.6×15mm recessed body for clean architectural flush installs

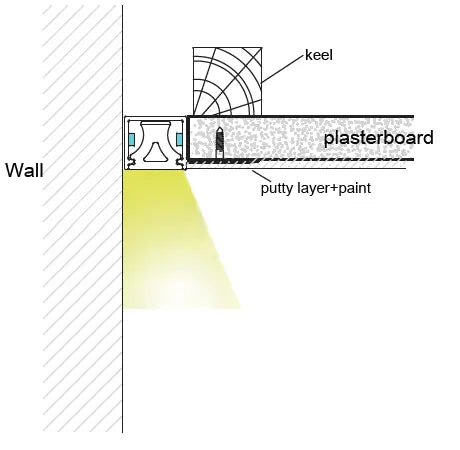

• Direct plaster-in design with putty-ready flanges and step profile
• Max length: 5 metres
• Material: Anodised extruded aluminium, white or black
• Mounting: Wall recessed into plasterboard system
• Accessories: End caps, silicone diffusers
• CCT compatibility: Tuneable White, RGB, RGBW
• IP rating: IP20
• Edge detail: Designed for putty layer and skim coat over flange

Ideal Applications

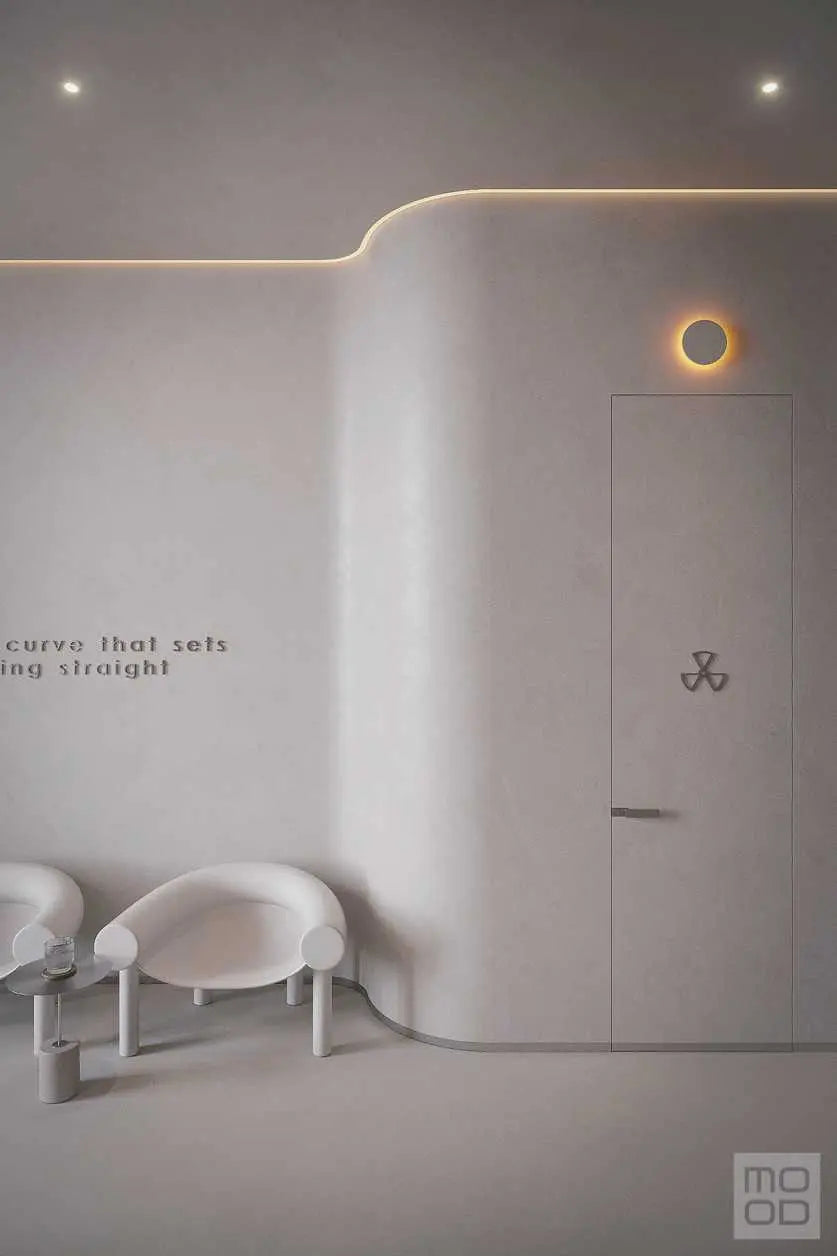

• Architectural wall-wash features
• Hallway up lighting or downlighting
• Clean vertical light accents
• Luxury residential corridors
• Hospitality ambient wall frames
• Retail entrance features

Technical Summary

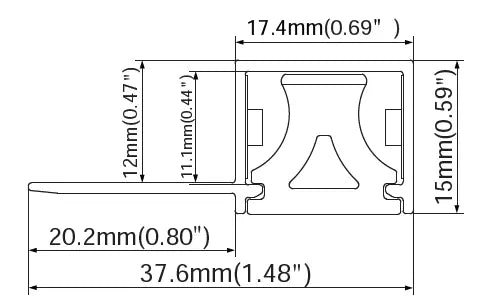

• Dimensions: 37.6×15mm
• Max LED width:
• CCT range: Tuneable White, RGB, RGBW
• Beam angles: Depends on internal LED and diffuser
• IP rating: IP20
• Mounting type: Wall-recessed into plasterboard
• Diffuser/accessory options: Silicone diffusers, end caps
• Material & finish: Extruded aluminium; Anodised Black or White



Why Specify PF1029?

The PF1029 makes light disappear, until you want it noticed. It recesses seamlessly into walls, offering a premium architectural detail that complements high-spec interiors. This profile is built for designers who don’t want to see the fitting, only the glow.
