PF1030

PF1030 | Ceiling-Recessed Plaster-In LED Profile

The PF1030 is a ceiling-recessed LED profile with integrated plaster flanges, designed for flush-fit installs into plasterboard ceilings.

With a 39.75mm × 15.45mm footprint and stepped sidewalls for seamless skim finishes, it’s ideal for clean linear light with no visible trim, just pure architectural illumination.

Key Features

• 39.75×15.45mm recessed profile for ceiling applications
• Designed for plasterboard installation with flanged side detail
• Max length: 5 metres
• Material: Extruded aluminum, anodised white or black
• Accessories: Silicone diffusers, end caps
• CCT compatibility: Tuneable White, RGB, RGBW
• IP rating: IP20

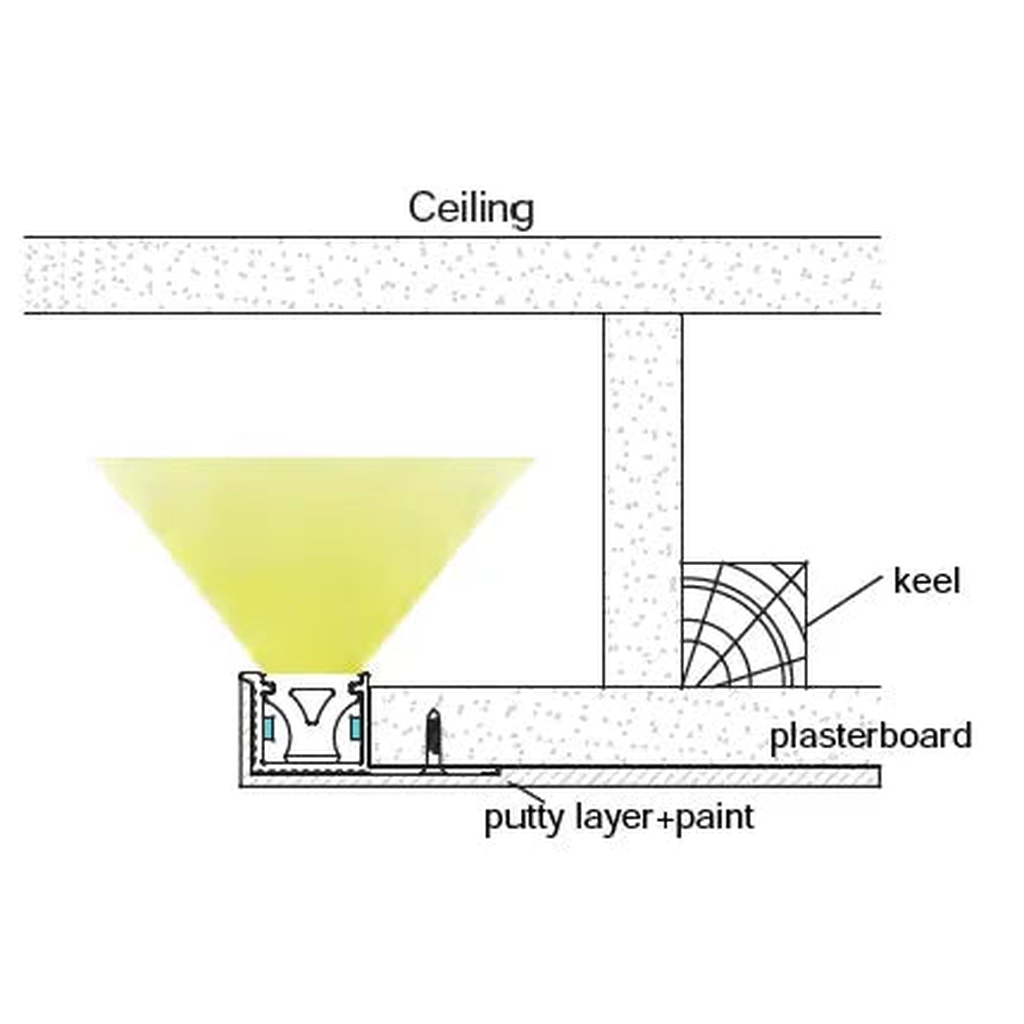

• Mounting: Flush to ceiling with skimmed-in plastered edges
• Smart sidewall tapering allows perfect blend into putty/paint layers

Ideal Applications

• Premium commercial ceilings
• Hotel corridors and soft ceiling frames
• Gallery-grade ambient ceiling strips
• Upscale residential linear lighting
• Conference rooms with minimal visual noise
• Any space where fittings must vanish into the build

Technical Summary

• Dimensions: 39.75×15.45mm
• Max LED width:
• CCT range: Tuneable White, RGB, RGBW
• Beam angles: Dependent on internal LED and diffuser
• IP rating: IP20
• Mounting type: Ceiling-recessed into plasterboard
• Diffuser/accessory options: Silicone diffusers, end caps
• Material & finish: Extruded aluminium; Anodised White or Black

• Why Specify PF1030?

The PF1030 gives architects and designers a flawless ceiling line — no trims, no mess, just pure light. Whether it’s directional LED strips or RGB accents, this profile hides everything but the glow. Clean installs, sharp results, no compromise.
