PF1031

PF1031 | Compact Linear Profile for Surface & Curve Integration

The PF1031 is a compact, highly adaptable LED profile designed for ultra-low-profile integration.

At just 17.4mm x 15mm, it fits effortlessly into millwork, furniture, or shallow reveals. With support for top-bend installations and available silicone diffusers, this 5m extrusion is your go-to for subtle but precise linear light.

Key Features

• Slim 17.4×15mm profile for tight, shallow installations

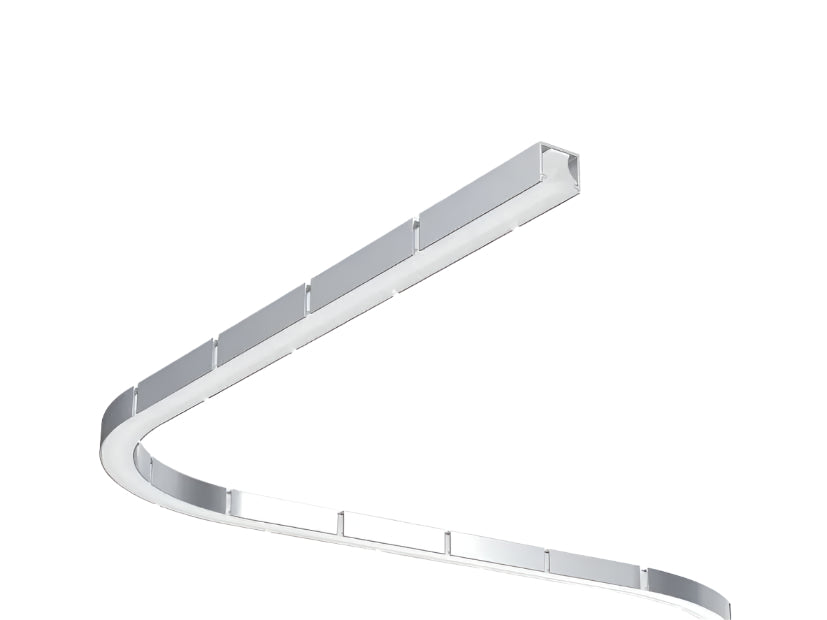

• Top-bend flexibility for mild curved surfaces
• Max length: 5 metres
• Material: Anodised aluminium — black or white
• Mounting options: Surface or recessed with mounting clips
• Accessories: Silicone diffusers, end caps, metal clips
• CCT compatibility: Tuneable White, RGB, RGBW
• IP rating: IP20

Ideal Applications

• Under-cabinet and shelf lighting
• Display and showcase integration
• Joinery and interior trim detailing
• Reception desks and counters

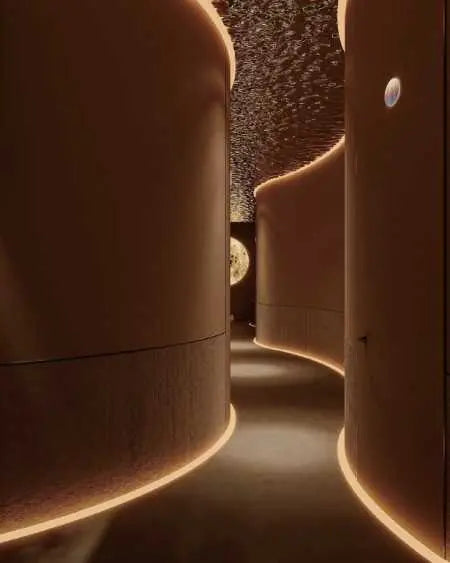

• Curved wall reveals and shallow channels
• Soft accent lighting in retail or residential

Technical Summary

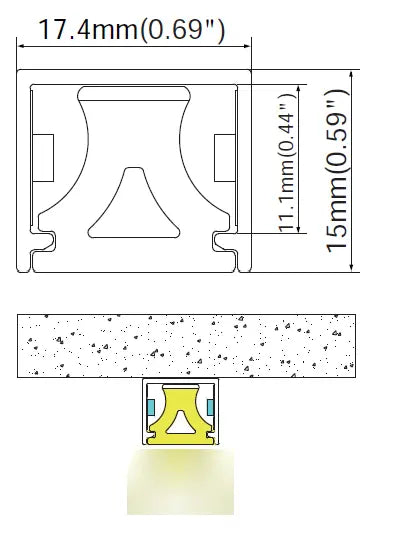

• Dimensions: 17.4×15mm
• Max LED width: Not specified
• CCT range: Tuneable White, RGB, RGBW
• Beam angles: Based on internal LED and diffuser
• IP rating: IP20
• Mounting type: Surface or shallow recessed
• Diffuser/accessory options: Silicone diffuser, metal clips, end caps
• Material & finish: Extruded aluminium Anodised White or Black



Why Specify PF1031?

The PF1031 offers flexibility and minimalism in one neat package. Ideal for designers who need compact profiles that can curve, mount flush, or disappear entirely into architectural details. It’s clean, tight, and always ready to shine — quietly but confidently.
