PF1034

PF1034 | Deep Set Linear Recessed Profile for Feature Wall Integration

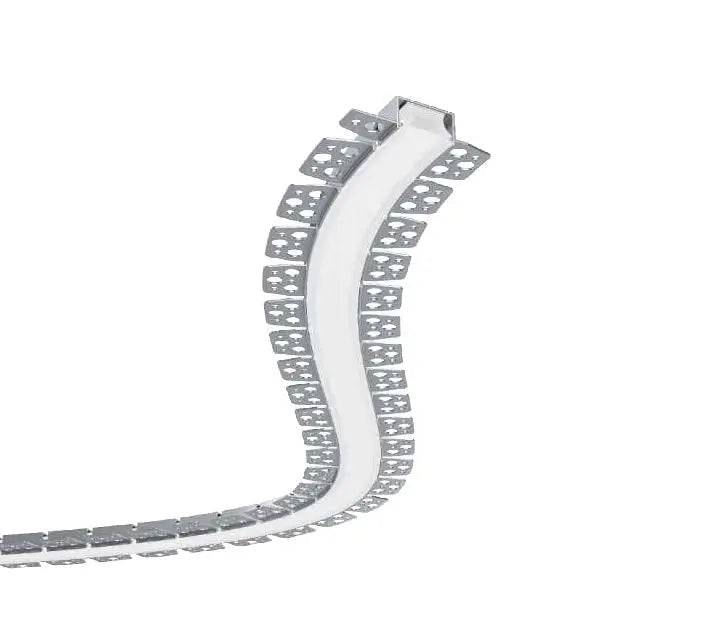

The PF1034 is a premium deep-channel recessed LED profile built for architectural reveals and statement linear lighting.

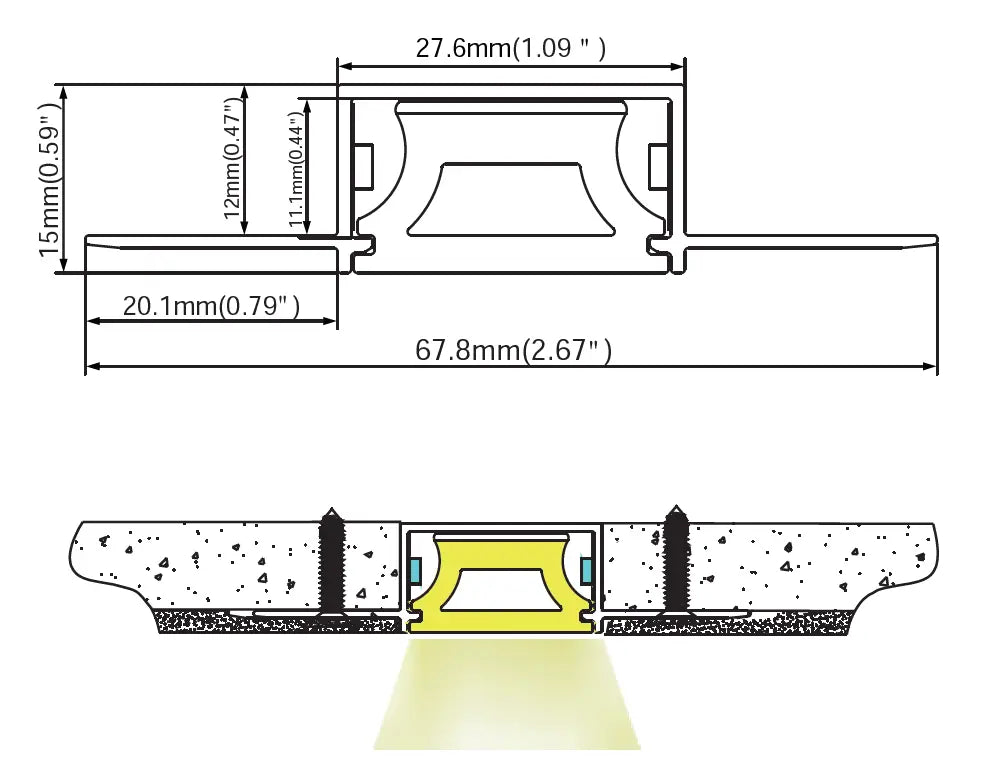

With a broad 67.8mm x 15mm form factor and a flush plasterboard fit, this 5m extrusion is engineered for edge-to-edge illumination in large-scale installations.

Key Features

• 67.8×15mm recessed profile wide for high-output LED applications
• Plasterboard integration for smooth, trimless finish
• Max length: 5 metres
• Material: Anodised extruded aluminium, black or white
• Mounting: Flush recessed into walls or ceilings
• Accessories: Silicone diffusers, end caps
• CCT compatibility: Tuneable White, RGB, RGBW
• IP rating: IP20
• Edge detail: Stepped flange allows seamless skim coating

Ideal Applications

• High-output cove or base lighting
• Perimeter light reveals in commercial spaces
• Wide hallway feature strips
• Reception feature walls
• Contemporary hotel lobbies
• Large-format retail architectural lighting

Technical Summary

• Dimensions: 67.8×15mm
• Max LED width:
• CCT range: Tuneable White, RGB, RGBW
• Beam angles: Based on LED and diffuser
• IP rating: IP20
• Mounting type: Recessed (plasterboard)
• Diffuser/accessory options: Silicone diffuser, end caps
• Material & finish: Extruded aluminium, Anodised White or Black



Why Specify PF1034?

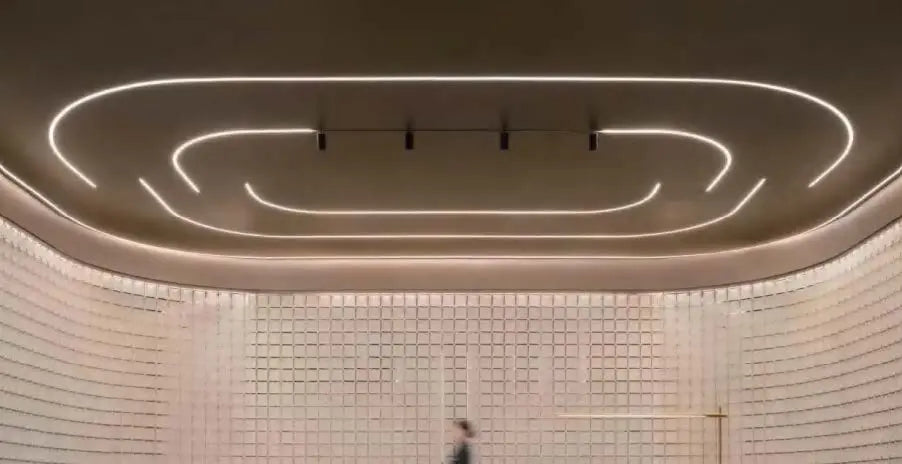

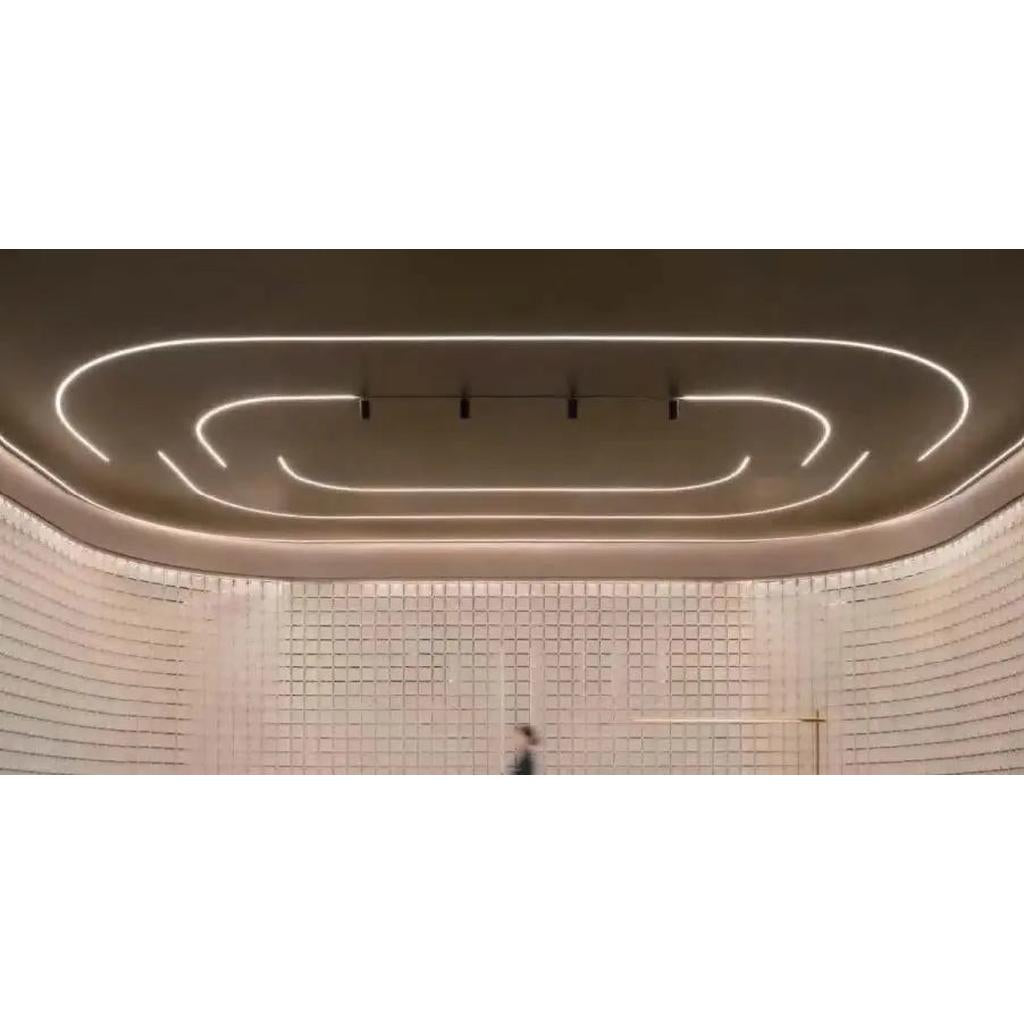

The PF1034 brings width, presence, and architectural polish to any install. It’s perfect when the brief calls for a continuous ribbon of light, deeply embedded into the structure. Think subtle drama, not visible fixtures, just glowing architectural form.
