PT1001

PT1001

STREET

The modern LED luminaire is designed for illuminating park alleys, squares, and streets, offering high luminous efficacy and impressive luminous flux. Utilizing energy-saving LED technology, this luminaire is equipped with optics options, including ST for street lighting and VSM for symmetric lighting, ensuring optimal illumination for various outdoor environments. Its efficient design not only enhances visibility but also contributes to energy conservation.

  • Materials: Die-cast aluminum body (RAL 7012), tempered glass, gaskets. Standard drivers with overload, short circuit and overheating protection. Built-in 40cm long power cord 2x 1,5mm, for pole Ø60mm. Possibility of painting in any RAL colour.
  • Installation: Pole mounted

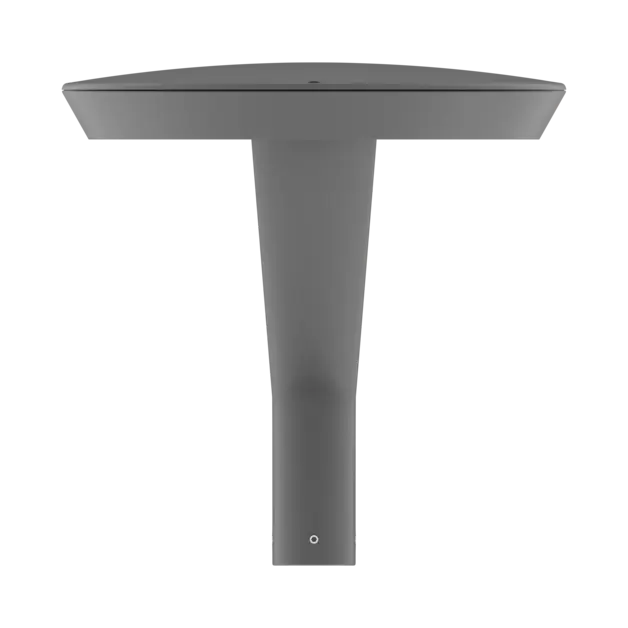

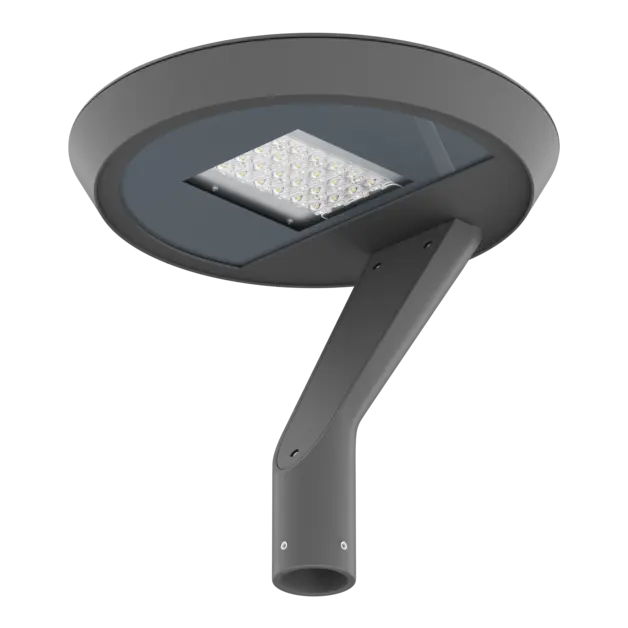

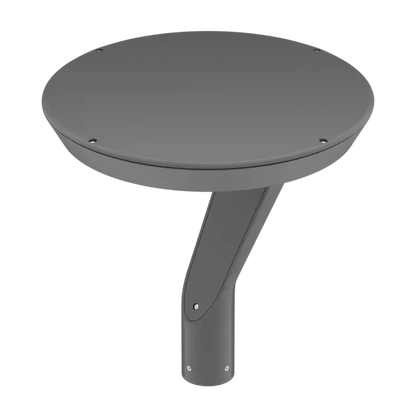

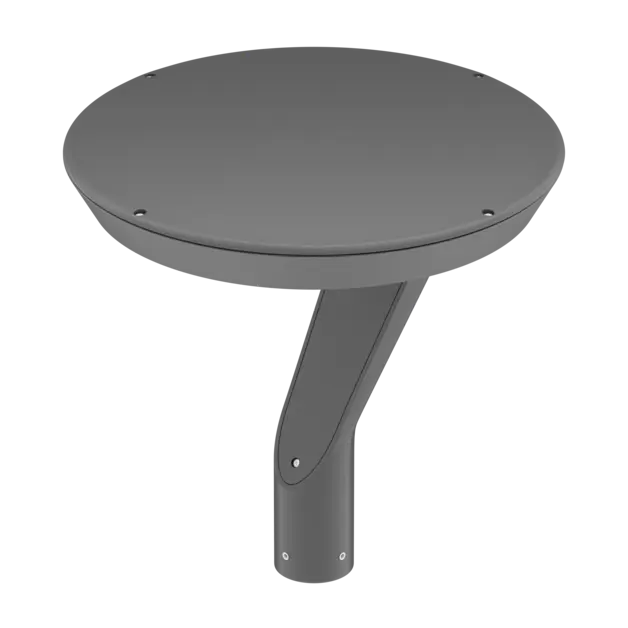

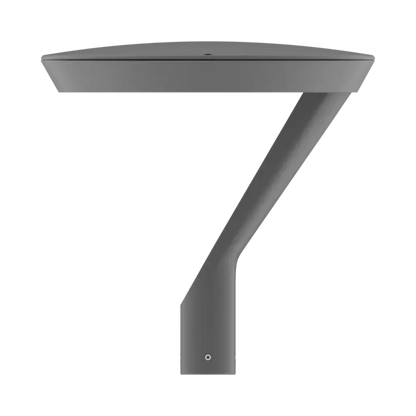

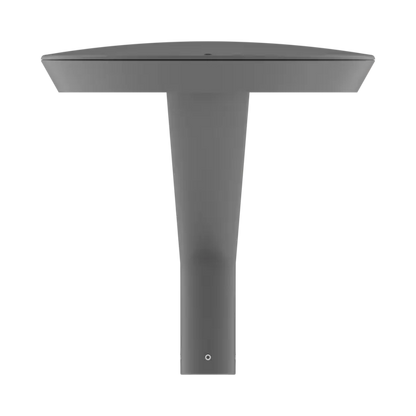

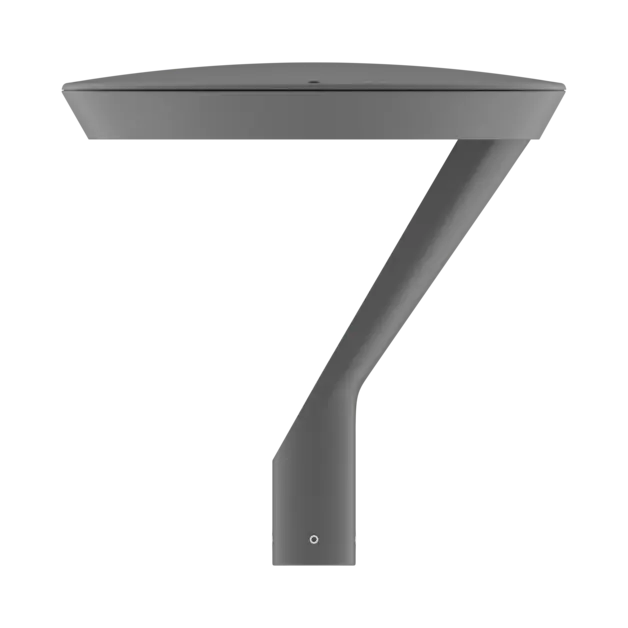

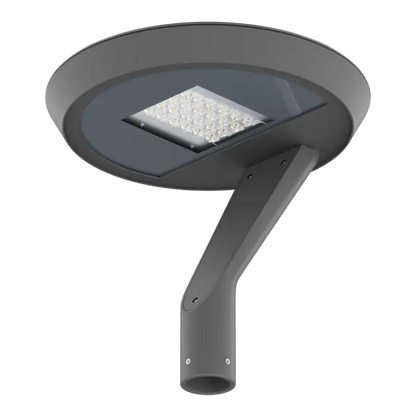

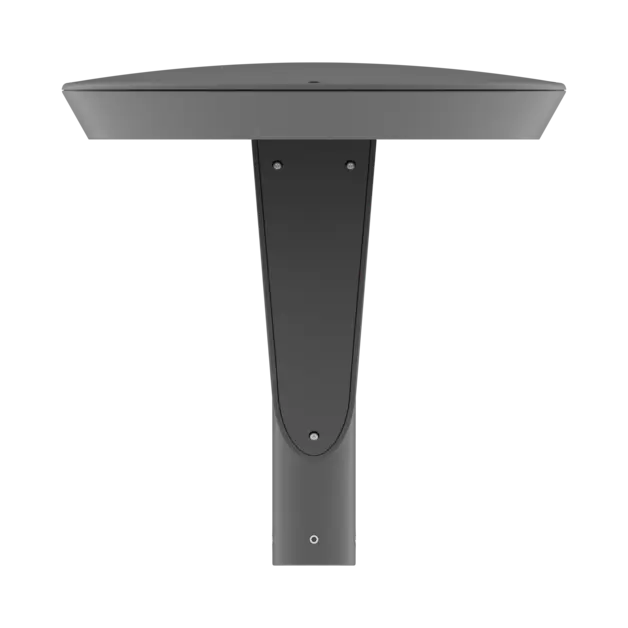

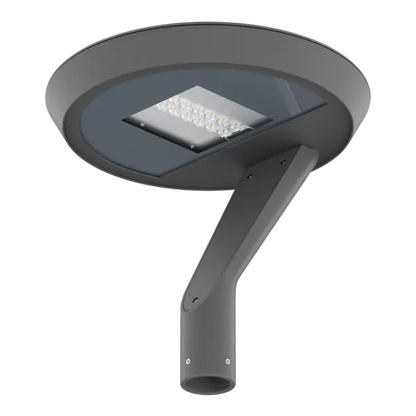

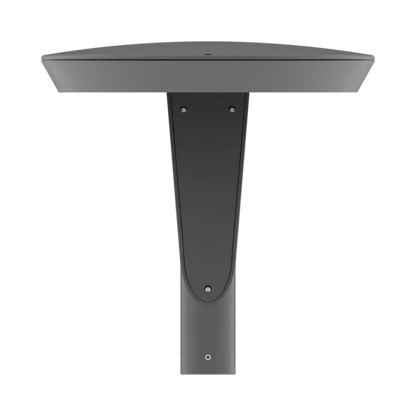

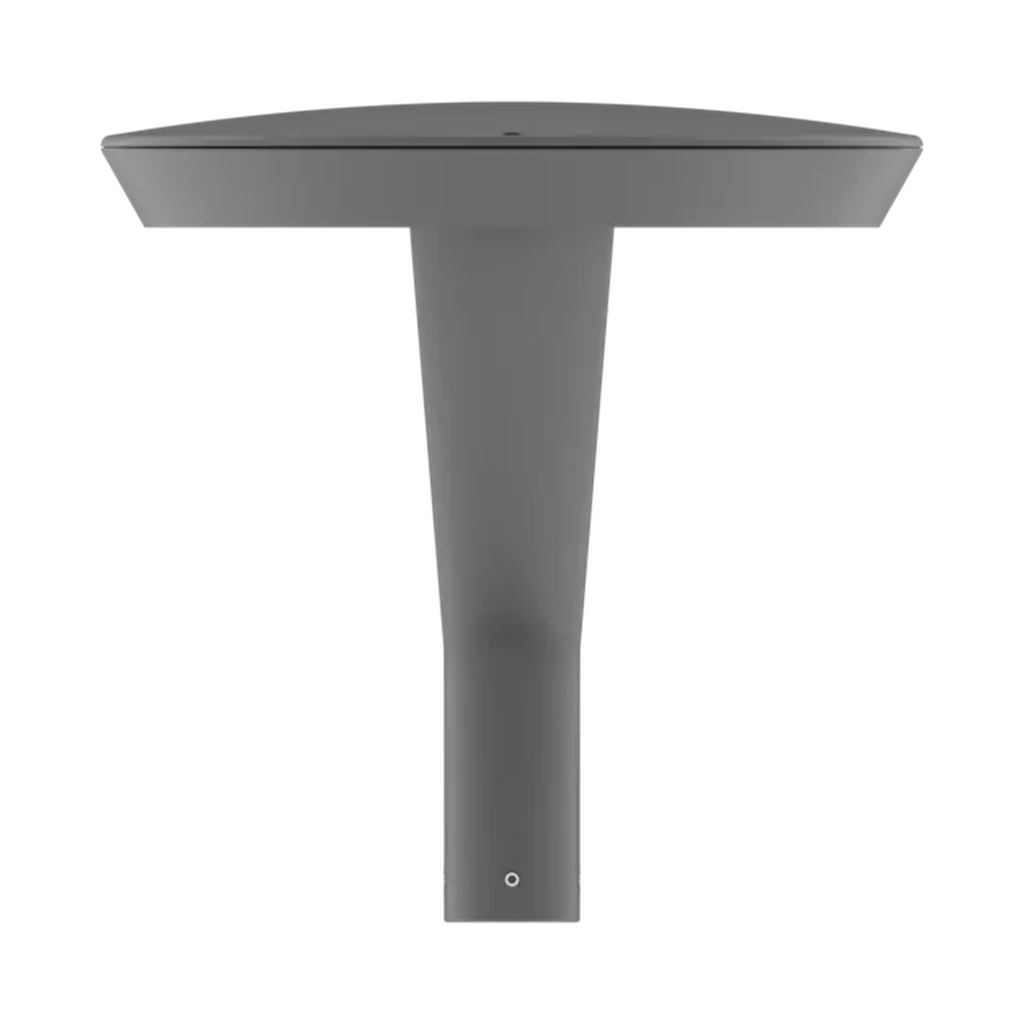

PT1001 | Architectural LED Pole-Mounted Luminaire

The is a PT1001 pole-mounted LED luminaire designed for professional outdoor lighting applications. Its modern design and high luminous efficacy make it an ideal choice for illuminating pathways, building surroundings, squares, and similar environments.​

🔍 Key Features:

Architectural Design: Crafted from die-cast aluminium with a powder-coated finish in RAL 7012 (anthracite), offering durability and a sleek appearance.​

High Luminous Efficacy: Delivers up to 163 lm/W, ensuring energy-efficient illumination.​

Uniform Illumination: Equipped with tempered glass and LNS optics, providing even light distribution.​

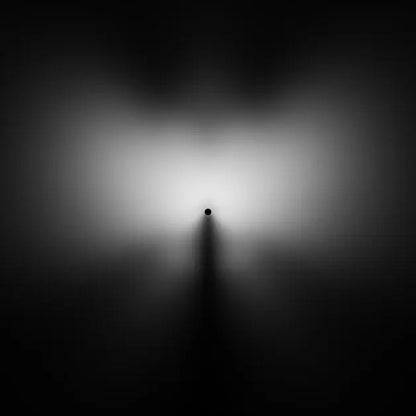

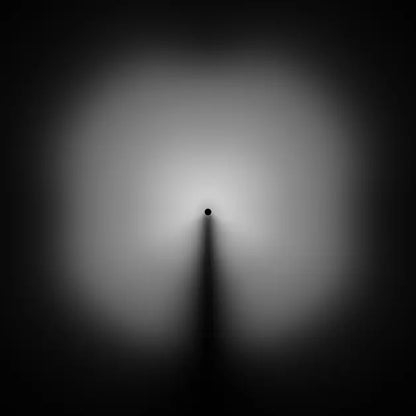

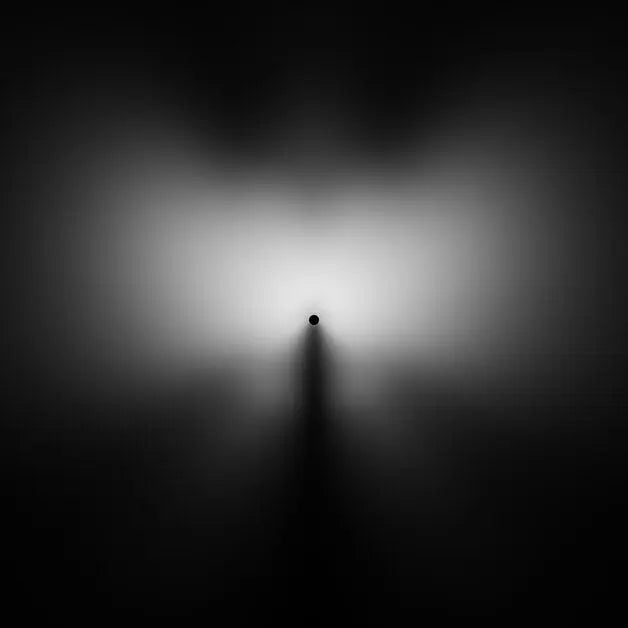

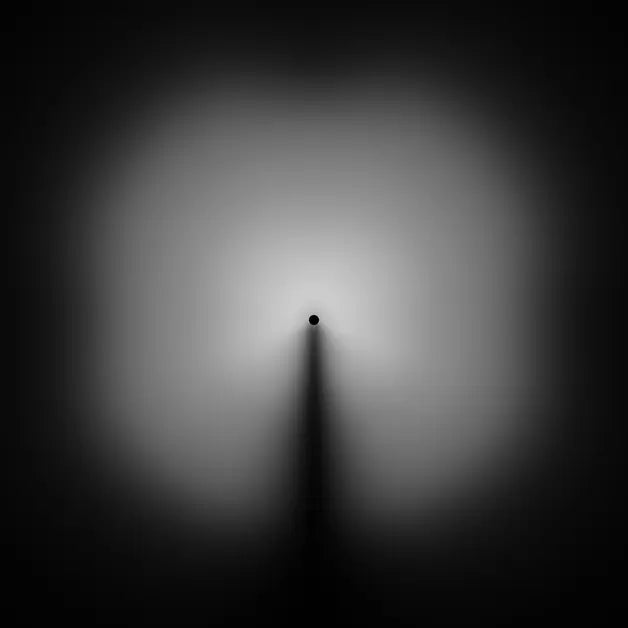

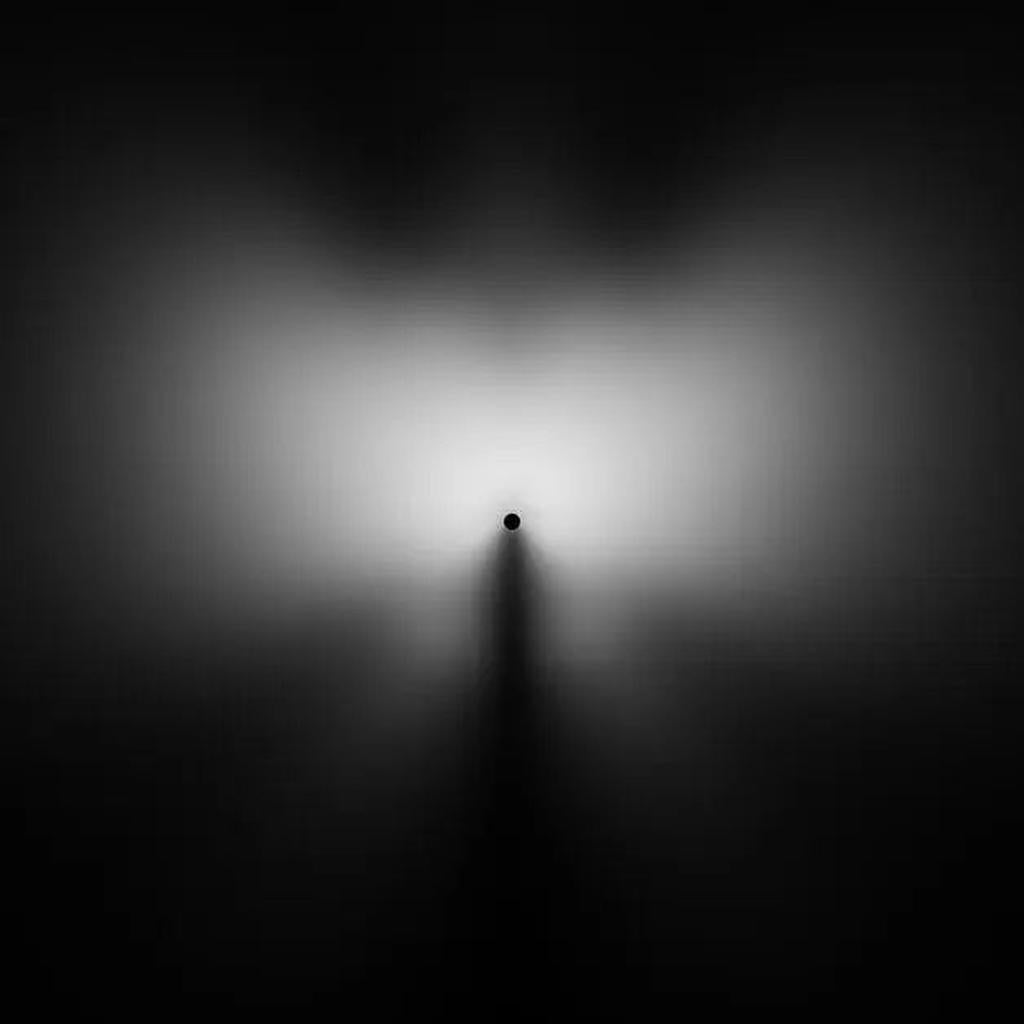

Versatile Optics: Available with ST (street) or VSM (symmetric) optical systems to suit various lighting requirements.​

Robust Construction: Features a sealed driver compartment with built-in protections against overvoltage, short circuits, and thermal overloads.​

Pole-Mounted Installation: Designed for mounting on poles with a diameter of Ø60mm, supplied with a 40cm power cable for easy connection.​

Control Options: Available with ON/OFF drivers. Optional motion sensor and emergency module integrations.​

🏢 Ideal Applications:

Perfect for parks, building surroundings, street lighting, parking areas, and residential outdoor spaces where efficient and reliable lighting is essential.​

📐 Technical Specifications:

Light Source: Integrated LED​

Power Consumption: 9–28W​

Luminous Flux: 1,315–4,470 lm​

Luminous Efficacy: 136–163 lm/W​

Colour Temperature: 3000K or 4000K​

CRI: 70​

Optical System: ST (street) or VSM (symmetric)​

Driver Options: ON/OFF​

Emergency Module: Optional​

Motion Sensor: Optional​

Protection Rating: IP65​

Impact Resistance: IK04​

Class of Protection: Class II​

Housing Material: Die-cast aluminium​

Diffuser Material: Tempered glass​

Mounting: Pole-mounted (Ø60mm)​

Weight: 7.5 kg​

The PT1001 combines modern design with high-performance lighting, making it a versatile choice for enhancing outdoor environments with both style and functionality.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
