STREET

The modern LED luminaire is specifically designed for street lighting, offering high luminous efficacy and luminous flux for optimal visibility. Utilizing energy-saving LED technology, this luminaire provides several optics options, including AS (asymmetric), ST (street), and PC (pedestrian crossings). Customization options are available upon request, including DALI, 1-10V, and Casambi controls, as well as knife switches and DW light distribution. The luminaire can be painted in any color from the RAL palette, with RAL 7046 as the standard option. Additionally, it features overvoltage protection up to 10 kV and an extended warranty. Enhanced control options include TimeDIM for interval adjustments and a lowered voltage recognition system with flux and power reduction capabilities (VoltIN). The CLO (Constant Lumen Output) feature ensures consistent performance, potentially affecting power consumption and lifespan during prolonged operation.

PT1002 | High-Efficiency LED Street Lighting Luminaire

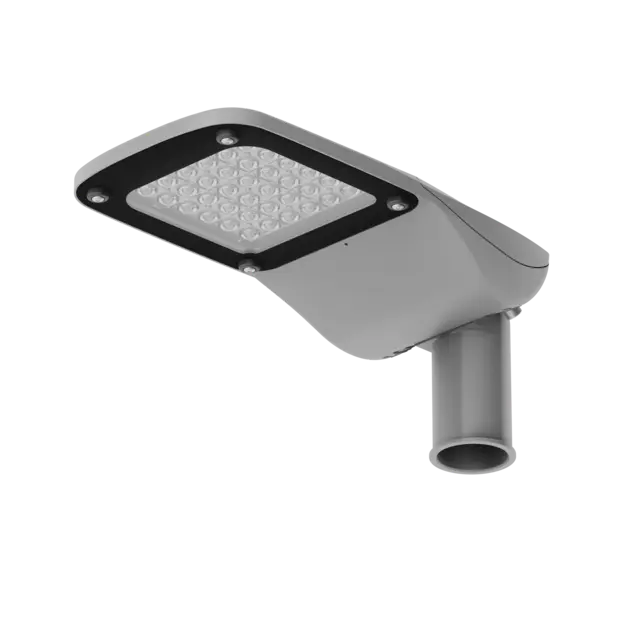

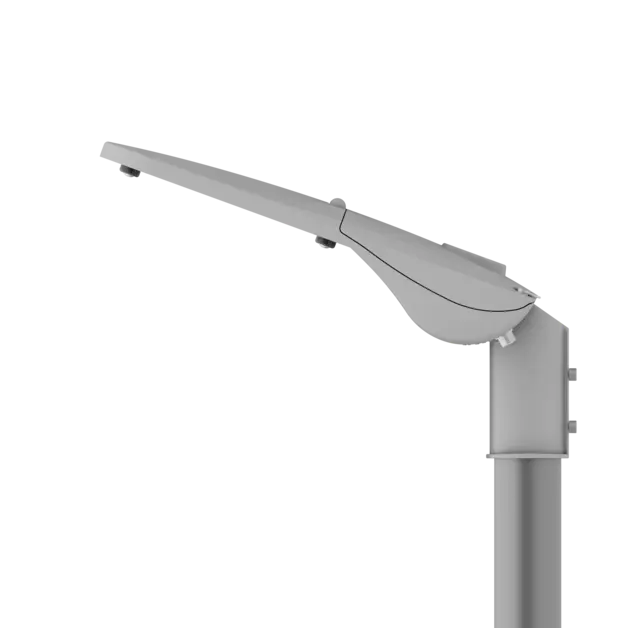

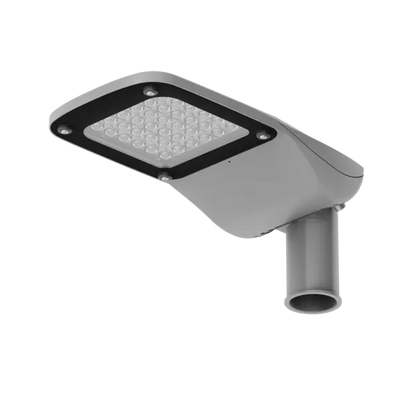

The PT1002 is a pole-mounted LED luminaire designed for professional street lighting applications. Its modern design and high luminous efficacy make it an ideal choice for illuminating streets, parks, and urban environments.​

🔍 Key Features:

• Architectural Design: Crafted from die-cast aluminium with a powder-coated finish in RAL 7046 (standard), offering durability and a sleek appearance.​
• High Luminous Efficacy: Delivers up to 182 lm/W, ensuring energy-efficient illumination.​

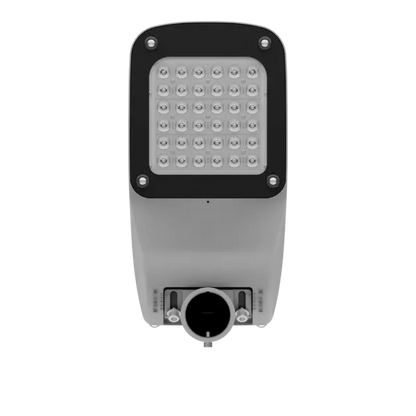

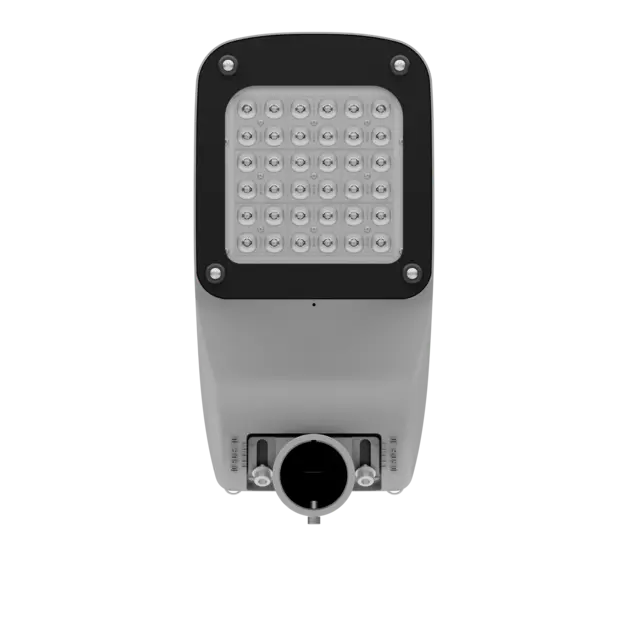

• Uniform Illumination: Equipped with tempered glass and LNS optics, providing even light distribution.​
• Versatile Optics: Available with AS (asymmetric), ST (street), or PC (pedestrian crossing) optical systems to suit various lighting requirements.​

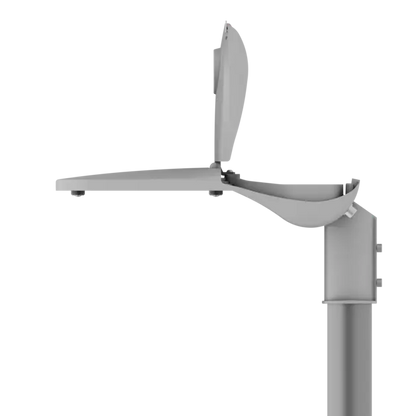

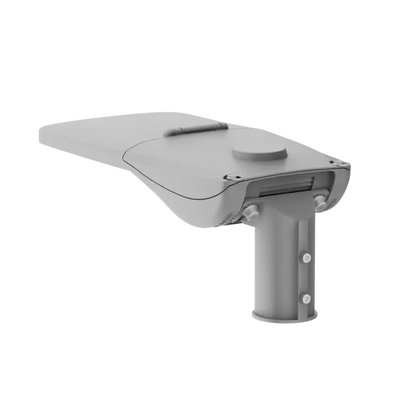

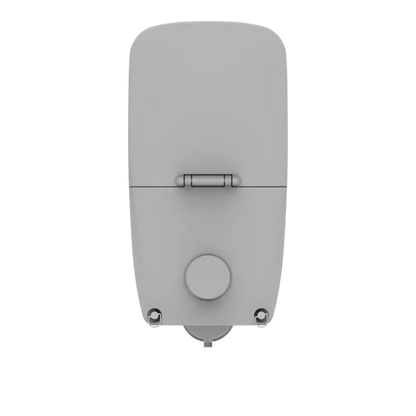

• Robust Construction: Features a sealed driver compartment with built-in protections against overvoltage, short circuits, and thermal overloads.​

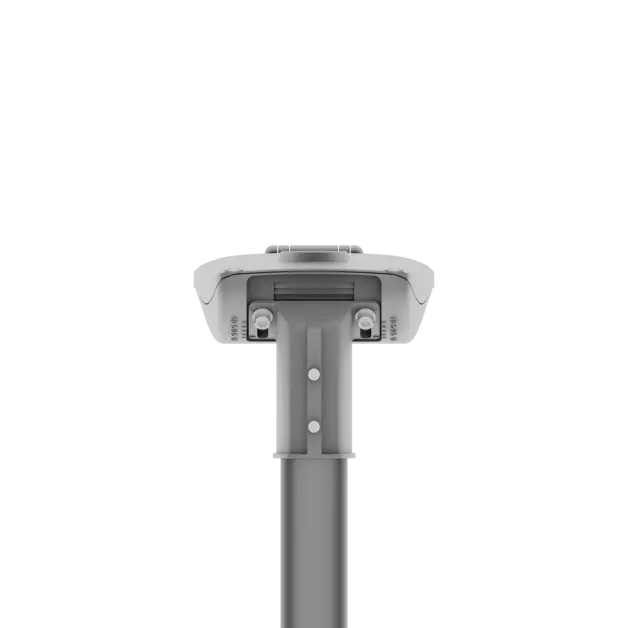

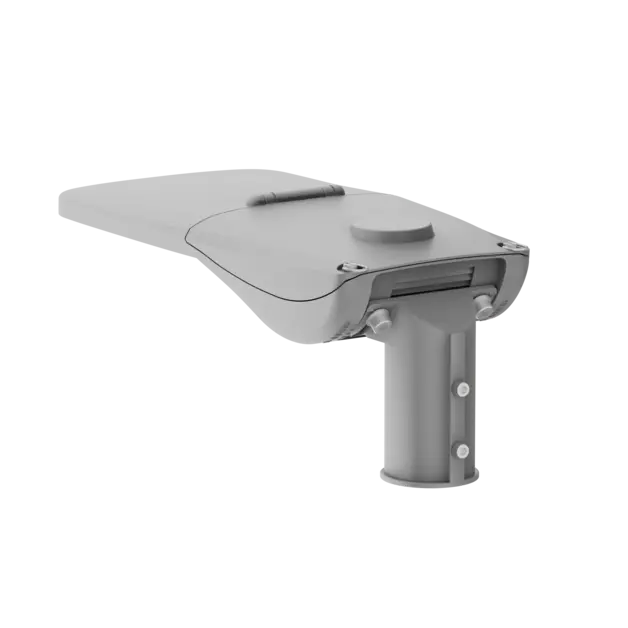

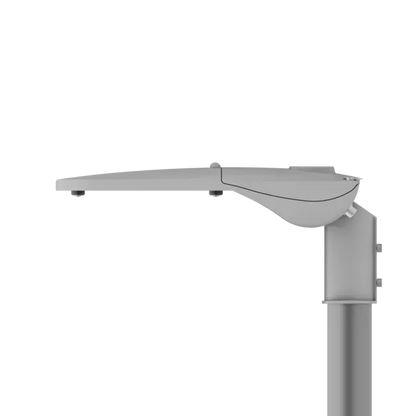

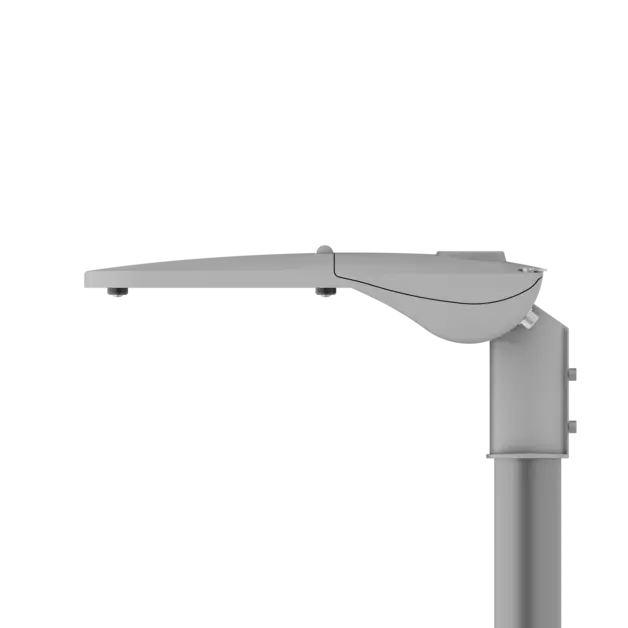

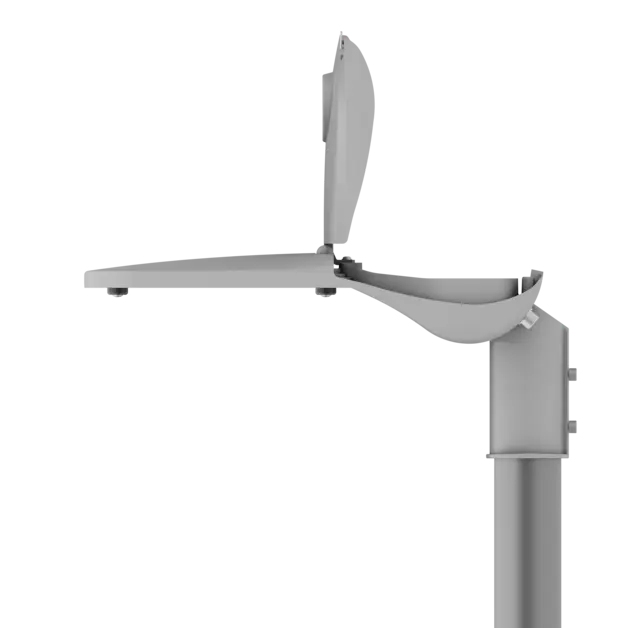

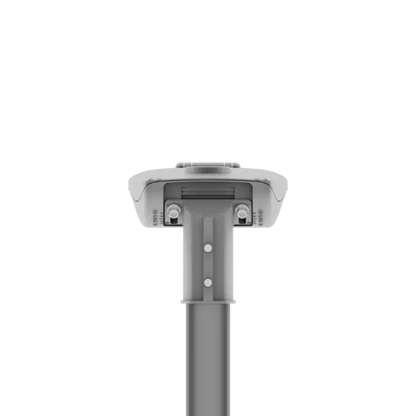

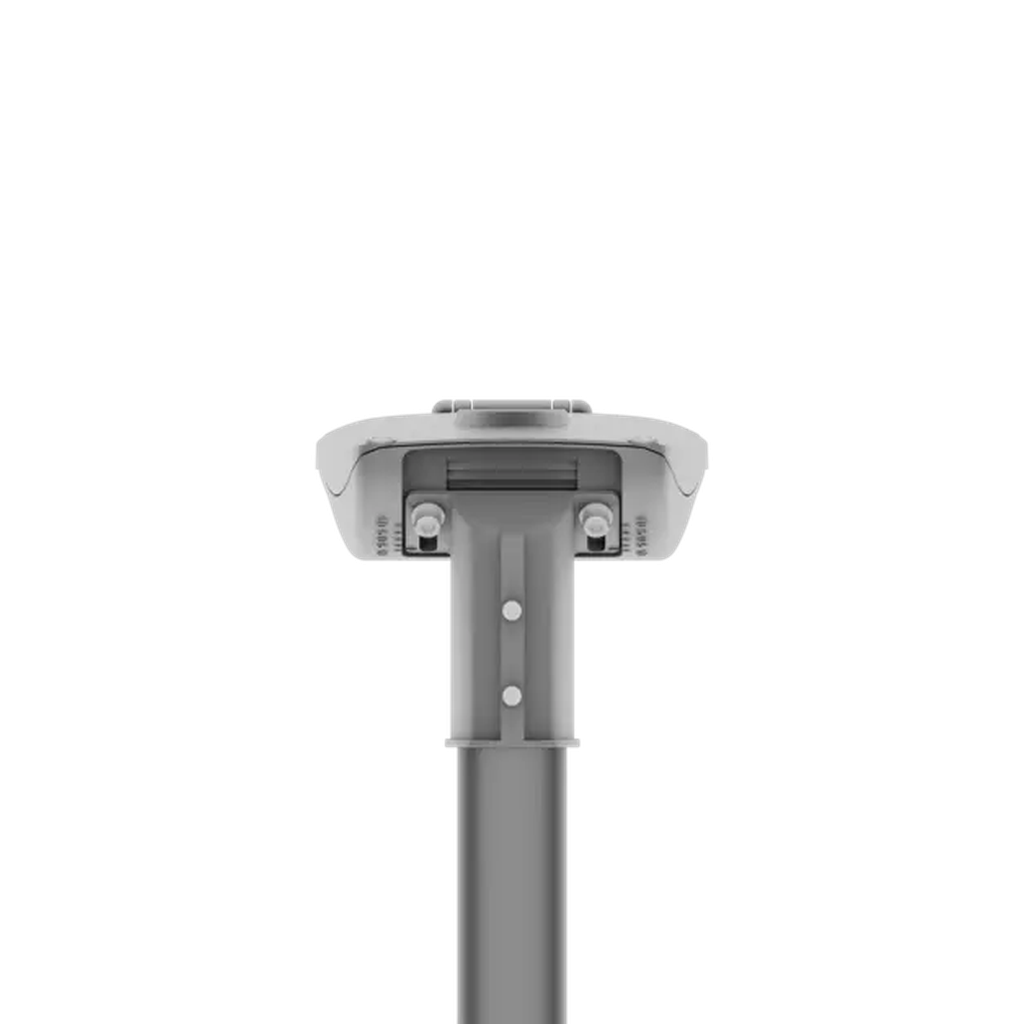

• Pole-Mounted Installation: Designed for mounting on poles with a diameter of Ø60mm, supplied with a 40cm power cable for easy connection.​
• Control Options: Available with ON/OFF, DALI, 1-10V, or Casambi drivers. Optional motion sensor and emergency module integrations.

🏢 Ideal Applications:

• Perfect for streets, parks, car parks, and residential outdoor spaces where efficient and reliable lighting is essential.​

📐 Technical Specifications:

• Light Source: Integrated LED​
• Power Consumption: 18–98W​
• Luminous Flux: 2,900–16,300 lm​
• Luminous Efficacy: 153–182 lm/W​
• Colour Temperature: 3000K or 4000K​
• CRI: 70​
• MacAdam SDCM: 3​
• Driver Options: ON/OFF, DALI, 1-10V, Casambi​
• Motion Sensor: Optional​
• Protection Rating: IP65​
• Impact Resistance: IK08​
• Class of Protection: Class I or II​
• Housing Material: Die-cast aluminium​
• Diffuser Material: Tempered glass​
• Mounting: Pole-mounted (Ø60mm)​
• Weight: 4.1 kg​

The PT1002 combines modern design with high-performance lighting, making it a versatile choice for enhancing outdoor environments with both style and functionality.
