SC1004

SC1004

SUSPENDED

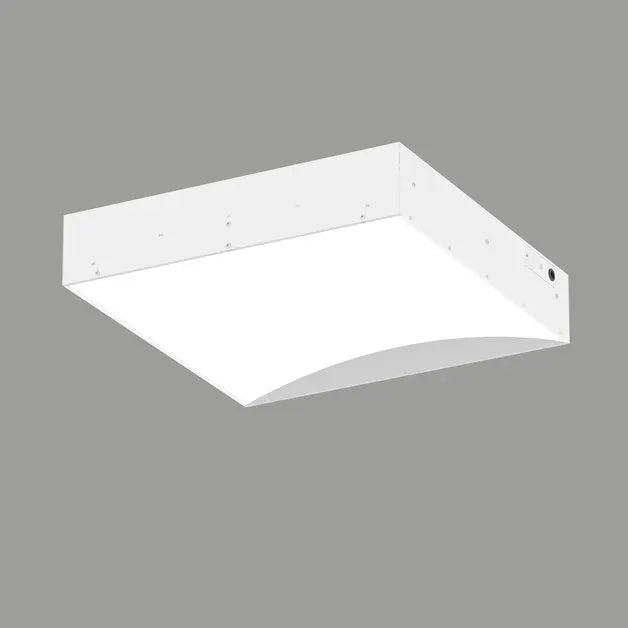

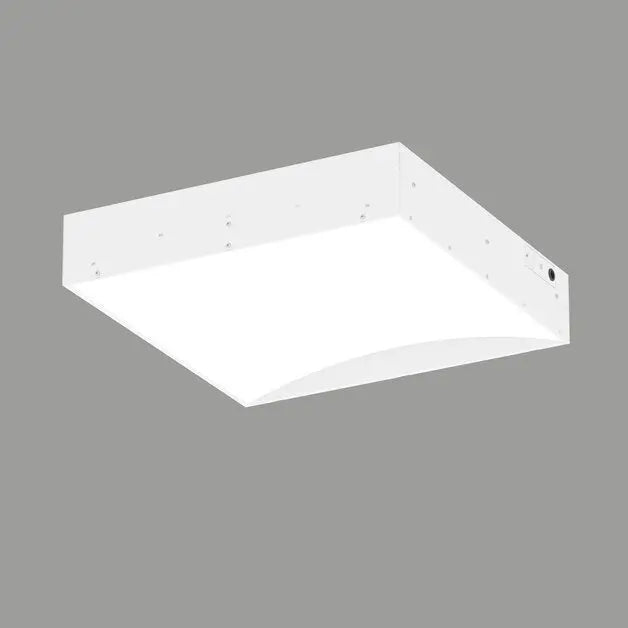

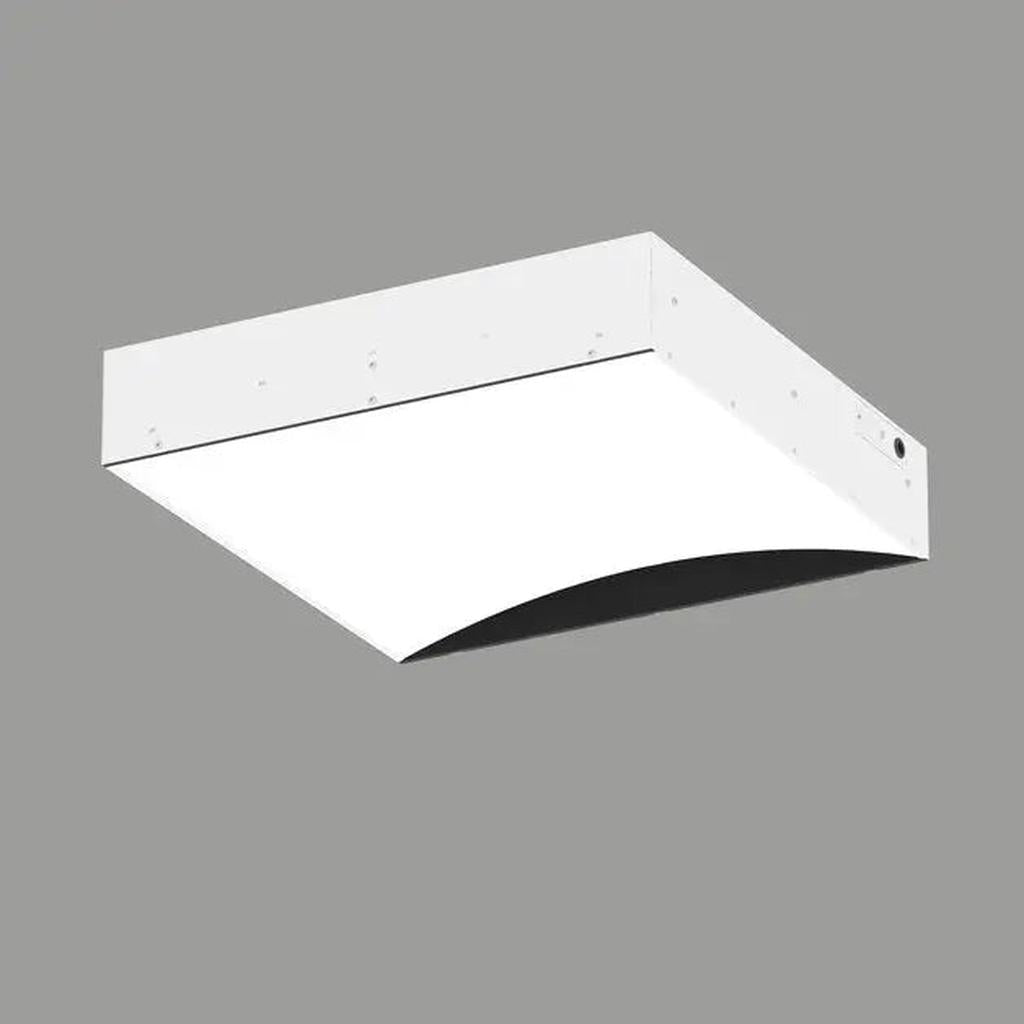

This elegant general lighting luminaire is designed specifically for installation in suspended ceilings. It boasts a beautifully concave OPAL diffuser that enhances light distribution and aesthetics. Available accessories include special decorative overlays in a selection of white, grey, or black finishes. For a more tailored appearance, the luminaire can also be painted in any colour from the RAL palette upon request, ensuring it seamlessly integrates into any interior design.

  • Materials: Housing made of electrostatically painted sheet steel in white. Milky OPAL lampshade. Decorative covers
  • Installation:

SC1004 | Recessed Lay-In Modular LED Luminaire for Grid Ceiling Systems

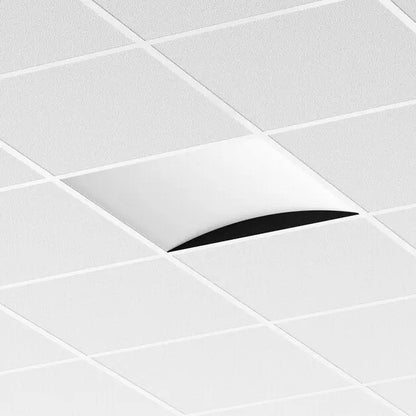

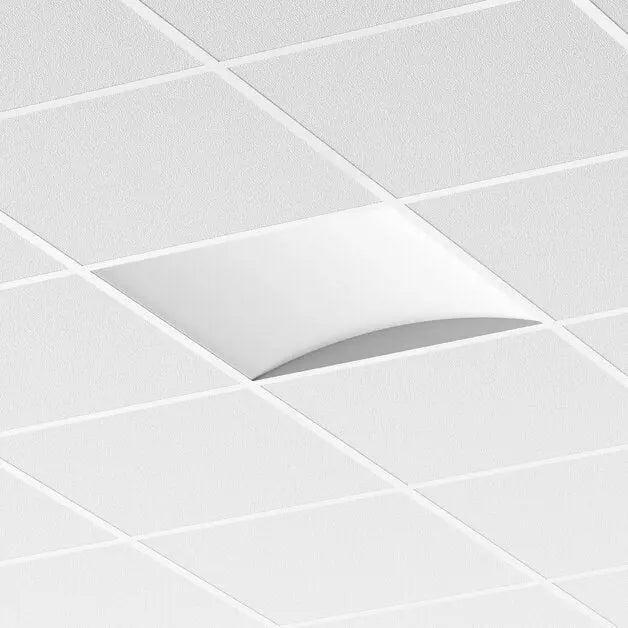

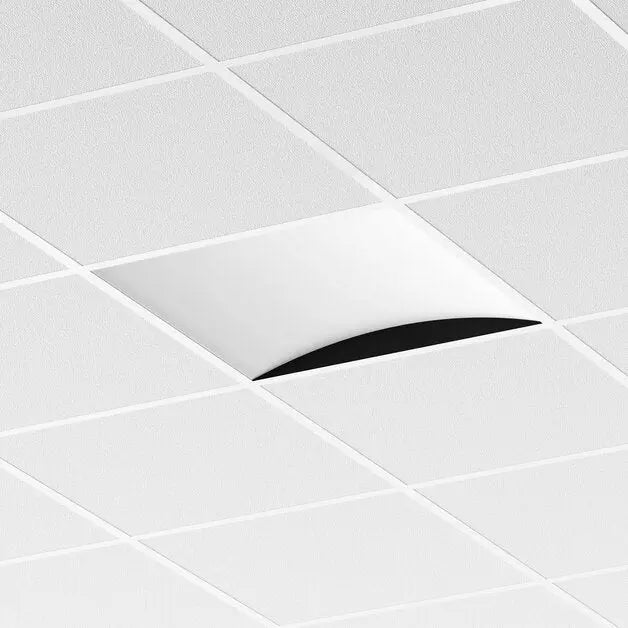

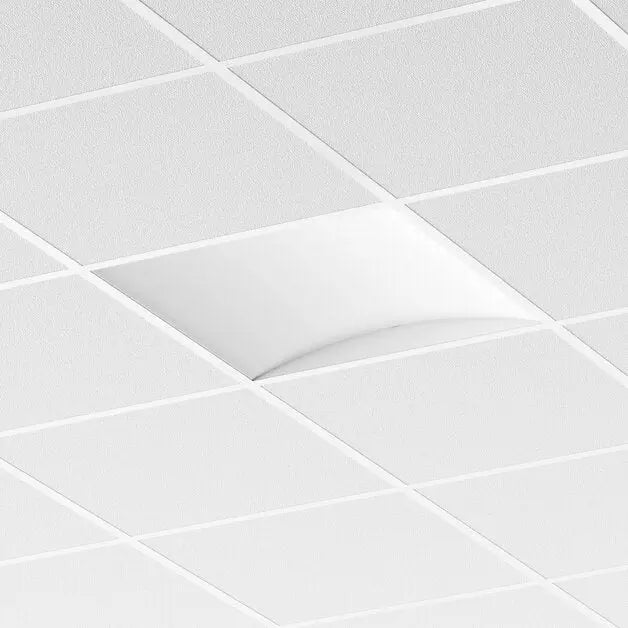

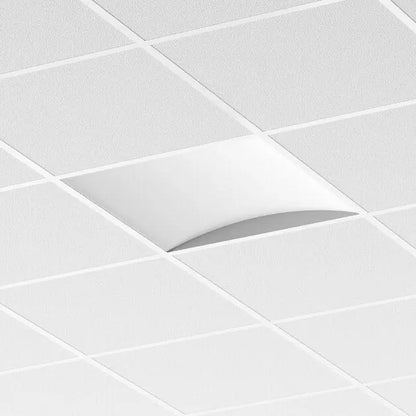

The SC1004 is a recessed lay-in modular LED luminaire designed for fast and seamless integration into standard exposed T-bar ceiling grids.

With a clean architectural profile, high luminous efficacy, and low-glare illumination, it is perfectly suited to professional and public sector environments.

🔍 Key Features:

  • Lay-In Grid Compatibility: Engineered for 600x600mm and 625x625mm modular ceiling grids, enabling quick, tool-free installation.​
  • High Luminous Efficacy: Delivers up to 125 lm/W, ensuring excellent brightness levels with optimized energy efficiency.​
  • Low Glare Comfort: Precision diffuser design ensures soft, evenly distributed illumination with reduced glare for comfortable working environments.​
  • Durable Construction: Robust powder-coated steel housing and high-transparency opal PMMA diffuser for consistent, long-term performance.​
  • Flexible Control Options: Available with ON/OFF or DALI dimmable drivers; optional emergency pack available for critical infrastructure compliance.​
  • Certified Quality: CE-compliant, guaranteeing safe, dependable operation in commercial and institutional projects.​

🏢 Ideal Applications:

  • Office workspaces and meeting rooms
  • Retail environments and showrooms
  • Educational facilities and lecture theatres
  • Healthcare and clinical centres
  • Public buildings and civic facilities​

📐 Technical Specifications:

  • Power Consumption: 34W​
  • Luminous Flux: 4,250 lm​
  • Luminous Efficacy: Up to 125 lm/W​
  • Colour Temperature: 3000K or 4000K​
  • CRI: >80​
  • MacAdam SDCM: 3​
  • UGR: <19 (depending on ceiling height and grid layout)​
  • Driver Options: ON/OFF, DALI​
  • Emergency Module: Optional (1h emergency backup available)​
  • Protection Rating: IP40 (below ceiling), IP20 (above ceiling)​
  • Impact Resistance: IK04​
  • Class of Protection: Class I​
  • Housing Material: Steel (powder-coated)​
  • Diffuser Material: PMMA (opal)​
  • Mounting Options: Recessed lay-in installation into 600x600mm or 625x625mm ceiling grids​
  • Dimensions: 595mm x 595mm / 620mm x 620mm options​
  • Weight: ~3.5 kg​

⚡ Quick takeaway:

  • The SC1004 is your clean, efficient modular lighting choice,built for fast, high-quality installations where energy performance, comfort, and visual clarity all matter.
  • When you need grid ceiling lighting that just works — flawlessly and efficiently. 🎯

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE LUMEN LENGTH (L) WIDTH (W) HEIGHT (H)
31

4,430 llm

 595 595 120
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
