SC1005

SC1005

SUSPENDED

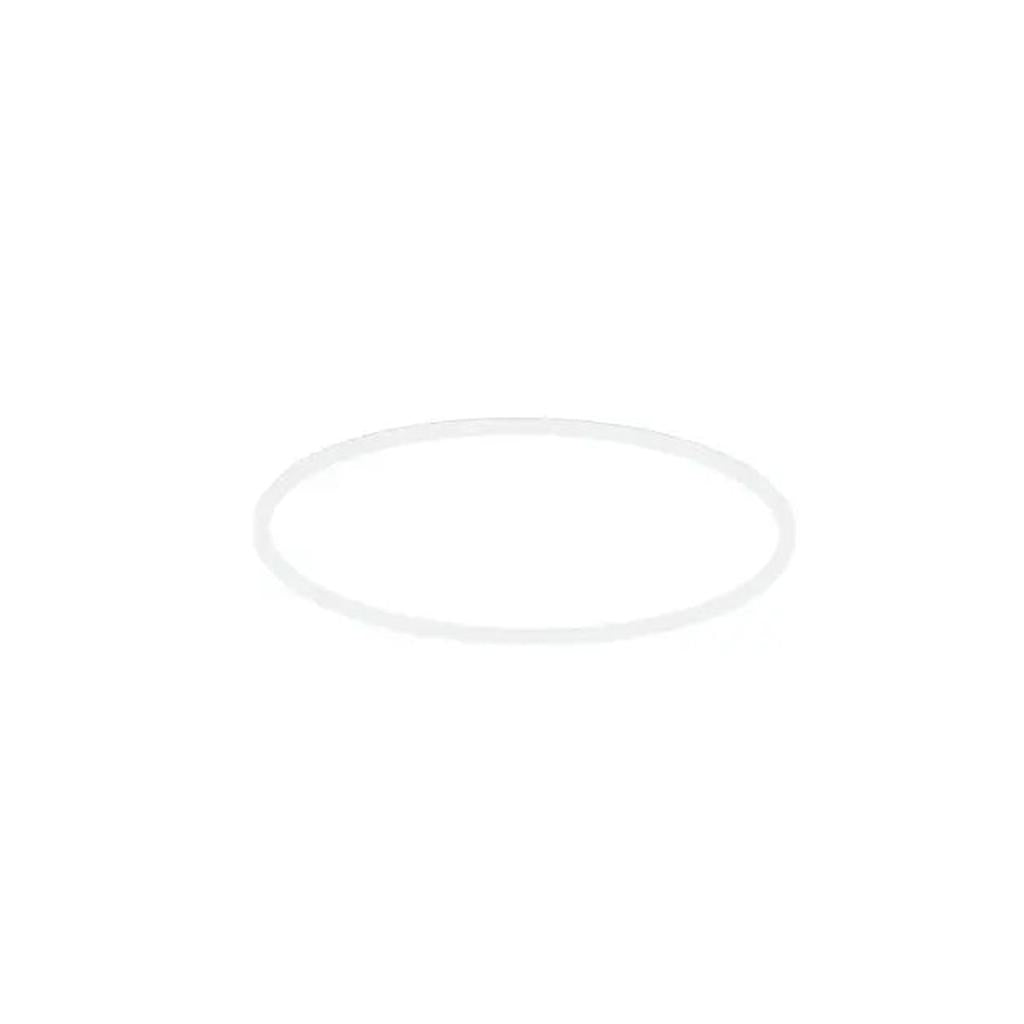

The SC1005 is a high-quality luminaire that delivers a subtle and evenly distributed circular light beam. Designed with an opal diffuser, it seamlessly blends with the ceiling surface, enhancing the overall aesthetic. This luminaire is equipped with energy-efficient LED light sources, making it an ideal choice for illuminating offices, corridors, and lobbies, where both functionality and style are paramount.

  • Materials: Housing made of steel (600x600), aluminium frame (GK), electrostatically painted in white (standard color) with all other RAL colors available, diffuser - opal plate (PMMA).
  • Installation:

SC1005 | Recessed Circular LED Luminaire for Modular Ceiling Systems

The SC1005 is a recessed circular LED luminaire designed for grid ceiling systems, offering a distinctive architectural look while maintaining high energy efficiency.

Its clean round profile and bright, uniform light make it ideal for contemporary commercial and public environments.



🔍 Key Features:

Architectural Circular Design: Round form factor provides a softer visual aesthetic compared to traditional square panels.​

High Luminous Efficacy: Delivers up to 128 lm/W, balancing excellent brightness with low energy consumption.​

Grid Ceiling Compatibility: Designed specifically for 600x600mm modular grid ceilings, ensuring easy integration and clean installation.​

Durable Construction: Features a steel body with a powder-coated finish and a high-quality opal PMMA diffuser for uniform light distribution.​

Driver Flexibility: Available with ON/OFF or DALI dimmable drivers; optional emergency module ensures suitability for safety-critical areas.​

Certified Quality: CE-compliant, offering dependable performance and safety assurance across a range of commercial projects.​



🏢 Ideal Applications:

Offices and meeting rooms

Retail stores and boutique spaces

Hotel lobbies and hospitality areas

Educational and healthcare facilities

Reception areas and corridors​


📐 Technical Specifications:

Power Consumption: 34W​

Luminous Flux: 4,350 lm​

Luminous Efficacy: Up to 128 lm/W​

Colour Temperature: 3000K or 4000K​

CRI: >80​

MacAdam SDCM: 3​

UGR: <19 (depending on ceiling height and layout)​

Driver Options: ON/OFF, DALI​

Emergency Module: Optional (1h emergency backup available)​

Protection Rating: IP40 (below ceiling), IP20 (above ceiling)​

Impact Resistance: IK04​

Class of Protection: Class I​

Housing Material: Steel (powder-coated)​

Diffuser Material: PMMA (opal)​

Mounting Options: Recessed into 600x600mm modular grid ceilings​

Dimensions: 595mm diameter (to fit 600x600mm grid module)​

Weight: ~2.5 kg​



⚡ Quick takeaway

The SC1005 offers a fresh, softer twist on grid lighting — ideal when you want to break up the monotony of endless square panels without losing modular ceiling simplicity.


Perfect for modern office refits, boutique stores, or hospitality designs wanting a little visual edge. 🎯

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE llm/W DIAMETER (Ø) HEIGHT (H)
37

4,430 llm

 475 76
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
