SC1006

SC1006

SUSPENDED

The SC1006 is a premium luminaire that provides a subtle and evenly distributed circular light beam. Featuring an opal diffuser, it harmoniously integrates with the ceiling surface, creating a cohesive look. This version is equipped with energy-efficient LED light sources, making it an excellent choice for lighting offices, corridors, and lobbies, where both elegance and functionality are essential.

  • Materials: Housing made of steel (600x600), aluminium frame (GK), electrostatically painted in white (standard color) with all other RAL colors available, diffuser - opal plate (PMMA).
  • Installation:

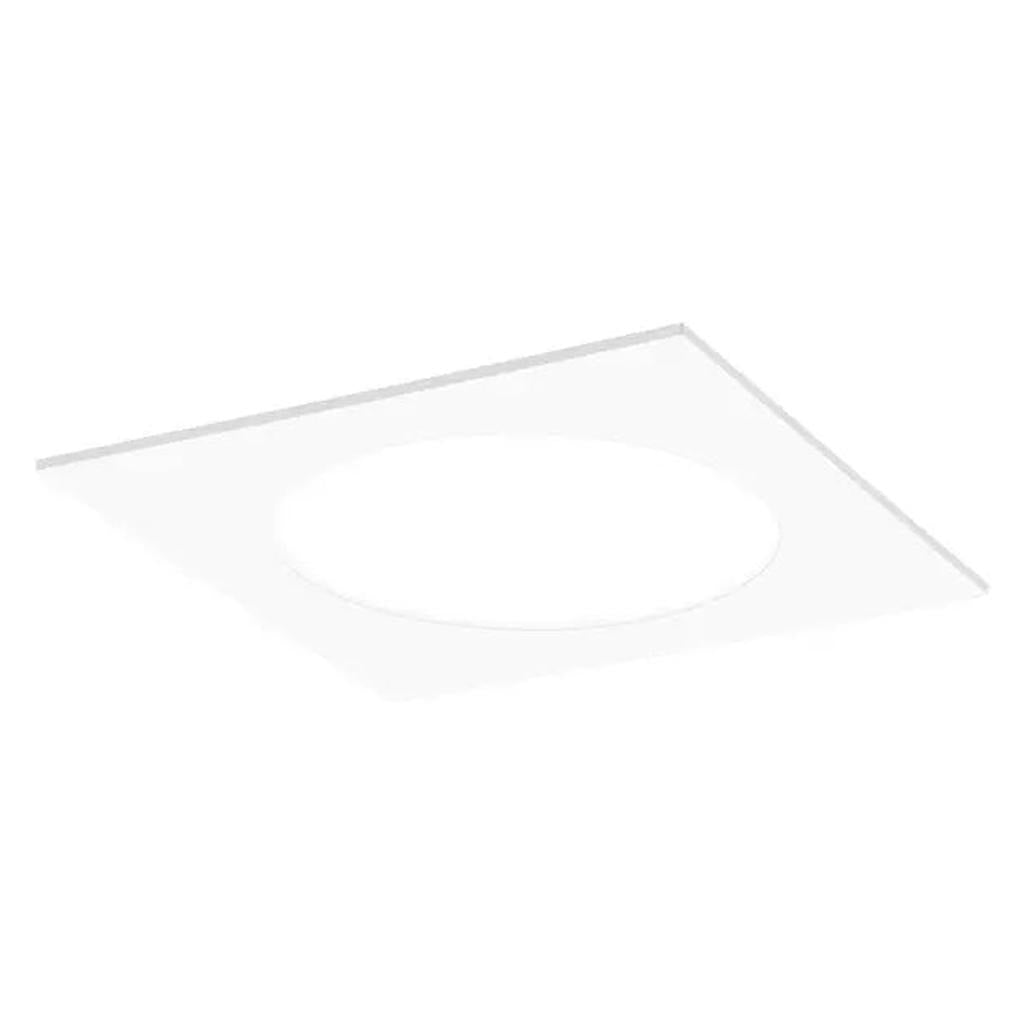

SC1006 | Recessed Circular LED Luminaire for Modular Ceiling Systems

The SC1006 is a recessed circular LED luminaire designed for modular ceiling systems, offering modern aesthetics combined with high luminous efficiency.

Its minimalist round profile delivers a distinctive lighting effect, ideal for contemporary commercial interiors.

🔍 Key Features:

  • Architectural Circular Form: Rounded, clean design enhances ceiling aesthetics and adds visual softness compared to square panels.​
  • High Luminous Efficacy: Provides up to 120 lm/W, ensuring bright, energy-efficient lighting for commercial environments.​
  • Grid Ceiling Integration: Designed to fit standard 600x600mm or 625x625mm modular grid ceilings, allowing straightforward installation.​
  • Durable Construction: Features a steel body with powder-coated finish and a PMMA opal diffuser, delivering uniform light distribution and long-term reliability.​
  • Driver Flexibility: Available with ON/OFF or DALI dimmable drivers; optional emergency backup for safety-critical spaces.​
  • Certified Quality: CE-compliant, ensuring dependable operation across demanding commercial applications.​

🏢 Ideal Applications:

  • Offices and conference rooms
  • Retail stores and showrooms
  • Educational facilities and libraries
  • Hospitality and reception areas
  • Healthcare and public buildings​

📐 Technical Specifications:

  • Power Consumption: 34W​
  • Luminous Flux: 4,100 lm​
  • Luminous Efficacy: Up to 120 lm/W​
  • Colour Temperature: 3000K or 4000K​
  • CRI: >80​
  • MacAdam SDCM: 3​
  • UGR: <22 (depending on installation height and ceiling design)​
  • Driver Options: ON/OFF, DALI​
  • Emergency Module: Optional (1h emergency backup available)​
  • Protection Rating: IP40 (below ceiling), IP20 (above ceiling)​
  • Impact Resistance: IK04​
  • Class of Protection: Class I​
  • Housing Material: Steel (powder-coated)​
  • Diffuser Material: PMMA (opal)​
  • Mounting Options: Recessed into modular grid ceilings (600x600mm or 625x625mm)​
  • Dimensions: Ø595mm to fit modular ceiling panels​
  • Weight: ~3.2 kg​

⚡ Final takeaway

  • The SC1006 is a recessed round modular champion — perfect for designers who want to soften the ceiling aesthetic while keeping all the modular, high-efficiency benefits.
  • Think modern offices, boutique retail spaces, or hospitality fit-outs needing a distinctive but practical lighting touch. 🎯

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE LUMEN DIAMETER HEIGHT (H)
37

4,430 llm

 475 76
CONTINUE TO CUSTOMISE
