SC1009

SC1009

SUSPENDED

This LED direct-indirect panel luminaire is designed to deliver soft and uniform illumination, featuring side opal sections that enhance light diffusion. High glare control is achieved through the use of specially designed louvers and premium microprismatic materials, ensuring a comfortable lighting experience. The advanced electronics contribute to maintaining high efficacy and extended lifespan. Compliant with EN12464-1 standards, this luminaire is suitable for various applications, including offices, corridors, and open spaces. Additionally, bespoke adaptations for custom ceiling types, such as SAS and Armstrong, are available upon request, making it a versatile choice for any environment.

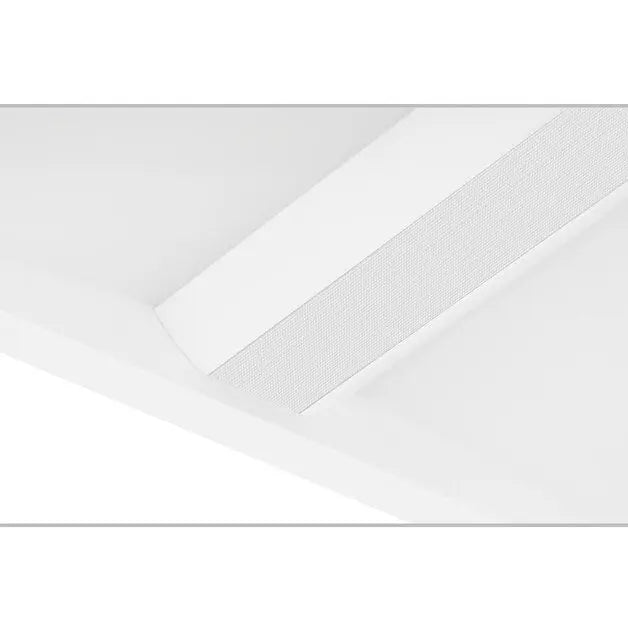

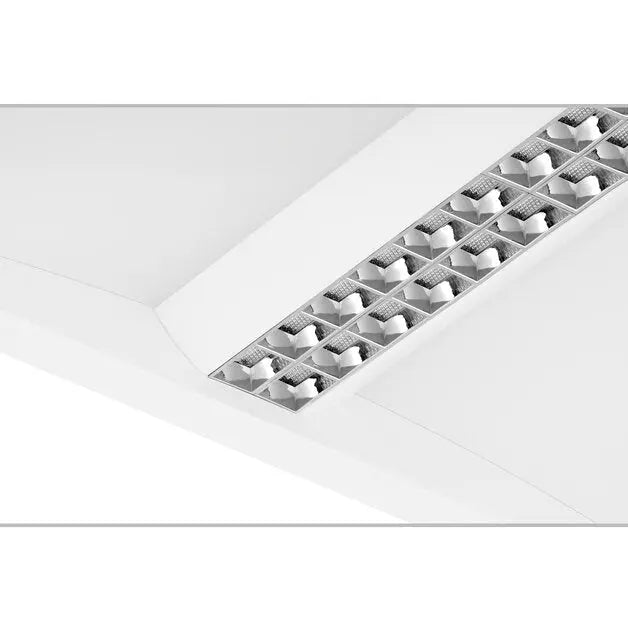

  • Materials: Body made of powder painted steel sheet. Direct light distribution: microprismatic diffuser MPRM or parabolic louver PAR (white or metallised). Indirect light distribution: structural OPAL diffusers.
  • Installation:

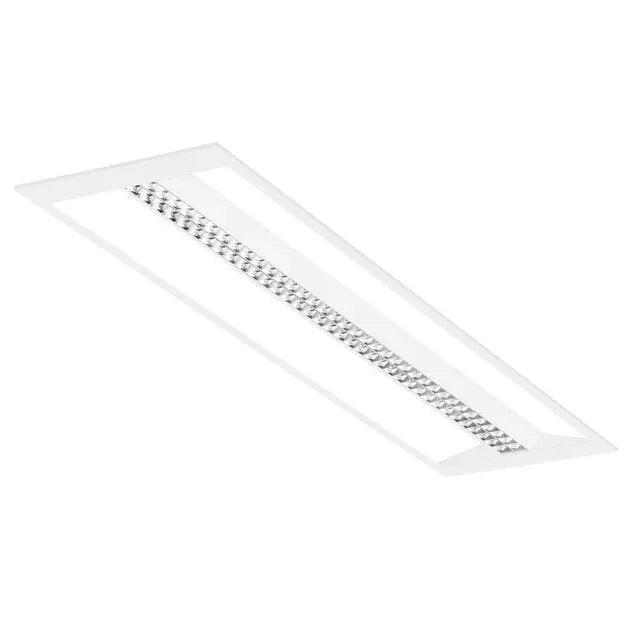

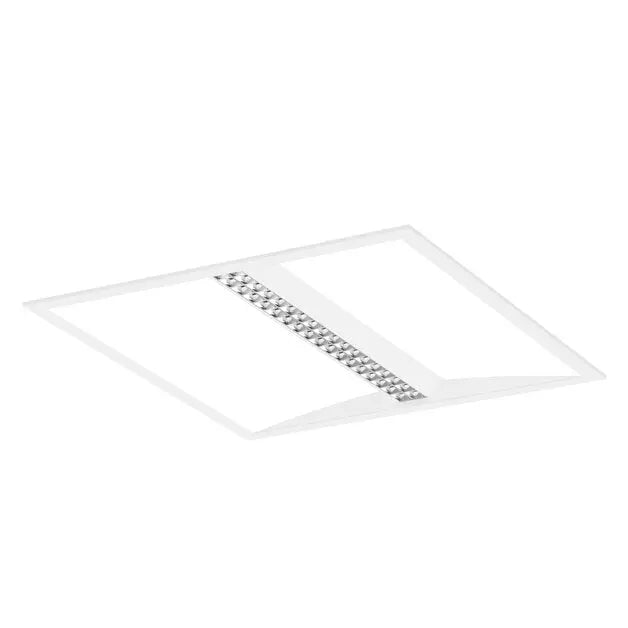

SC1009 | Recessed Modular Low-Glare LED Luminaire for Grid Ceiling Systems

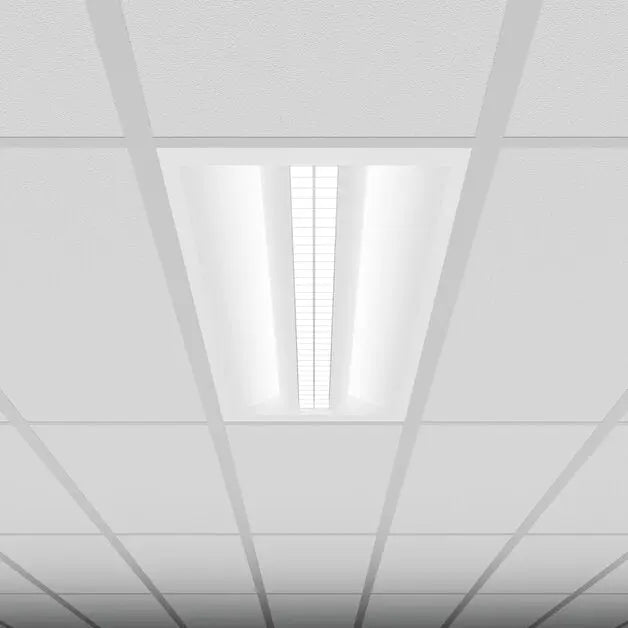

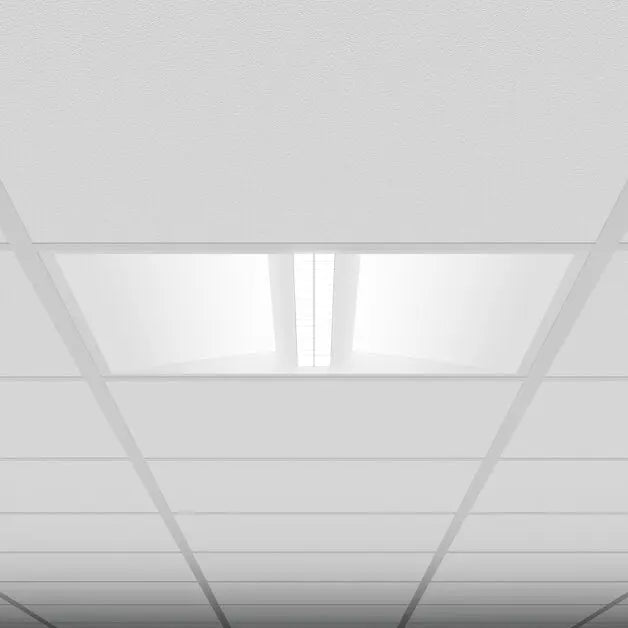

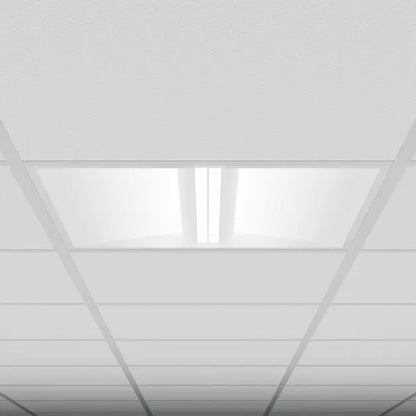

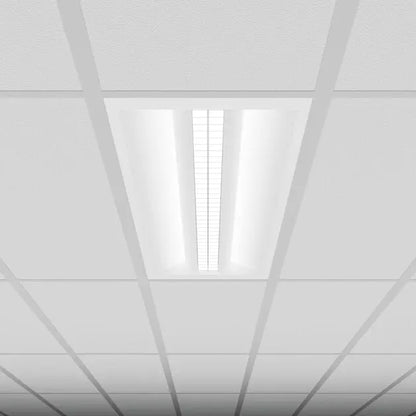

The SC1009 is a recessed modular LED luminaire engineered for lay-in installation into grid ceilings.

Designed with high-efficiency performance and low-glare optical control, it is ideal for modern office environments, educational spaces, and healthcare applications requiring superior visual comfort.

🔍 Key Features:

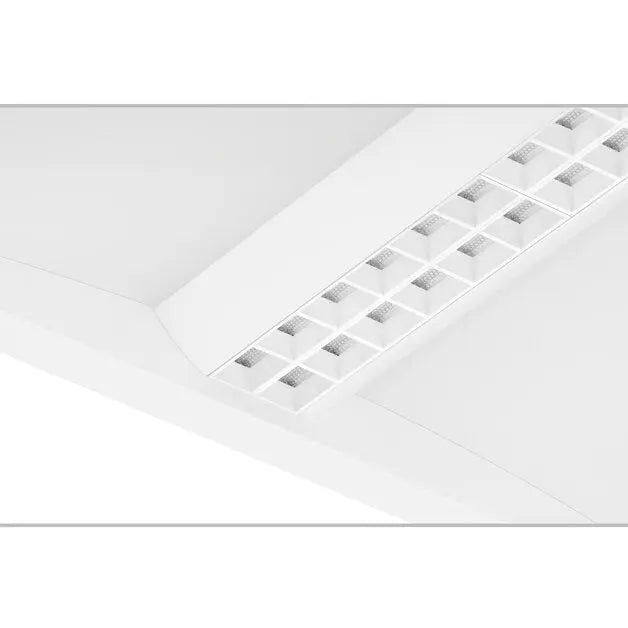

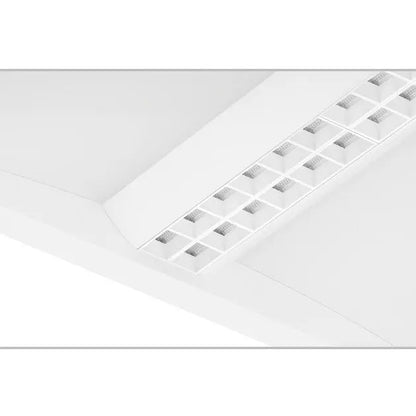

  • Low-Glare Louvered Optic: Specialized optics minimize glare, enhancing visual comfort and supporting compliance with modern workplace lighting standards.​
  • Lay-In Grid Compatibility: Designed for easy integration into 600x600mm and 625x625mm exposed T-bar ceiling grids.​
  • High Luminous Efficacy: Delivers up to 138 lm/W, offering outstanding energy efficiency without compromising light quality.​
  • Architectural Finish: Minimalist recessed design with a technical look suited for premium commercial and public environments.​
  • Driver Flexibility: Available with ON/OFF or DALI dimmable drivers; optional emergency version enhances system resilience.​
  • Certified Quality: CE-compliant, guaranteeing reliable, safe operation for professional installations.​

🏢 Ideal Applications:

  • Offices and open-plan workspaces
  • Educational facilities and universities
  • Healthcare environments and clinics
  • Retail stores requiring technical ceiling lighting
  • Public sector and government buildings​

📐 Technical Specifications:

  • Power Consumption: 34W​
  • Luminous Flux: 4,700 lm​
  • Luminous Efficacy: Up to 138 lm/W​
  • Colour Temperature: 3000K or 4000K​
  • CRI: >80​
  • MacAdam SDCM: 3​
  • UGR: <19 (compliant with workplace lighting standards)​
  • Driver Options: ON/OFF, DALI​
  • Emergency Module: Optional (1h emergency backup available)​
  • Protection Rating: IP40 (below ceiling), IP20 (above ceiling)​
  • Impact Resistance: IK04​
  • Class of Protection: Class I​
  • Housing Material: Steel (powder-coated)​
  • Diffuser Material: High-transparency PMMA with louvered optic design​
  • Mounting Options: Recessed lay-in installation into modular 600x600mm or 625x625mm ceiling grids​
  • Dimensions: 595mm x 595mm / 620mm x 620mm options​
  • Weight: ~3.5 kg​

⚡ Quick takeaway:

  • The SC1009 is your go-to low-glare modular luminaire, perfect for creating productive, comfortable environments in high-demand applications like offices, schools, and hospitals.
  • When you need to light spaces brilliantly without dazzling the occupants. 🎯

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE LUMEN LENGTH (L) WIDTH (W) HEIGHT (H)
36

4,050 llm

 595 595 73
39

4,100 llm

 1195 595 73
40

4,350 llm

 595 595 73
44

4,700 llm

 1195 595 73
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
