SC1010

SC1010

SUSPENDED

This modern louver luminaire is designed for LED light sources, offering exceptional technical and optical performance. Featuring aluminum parabolic louvers, it achieves a remarkably low glare rate, making it an excellent choice for environments where visual comfort is essential. Its low power consumption compared to traditional light sources further enhances its efficiency. With an innovative optical system, this luminaire is particularly well-suited for illuminating office spaces, especially those involving computer work, ensuring optimal lighting conditions for productivity and comfort.

  • Materials: White housing made of electrostatically painted steel, parabolic louver made of anodized, polished aluminum of high purity, LED module with additional microprismatic diffuser.
  • Installation:

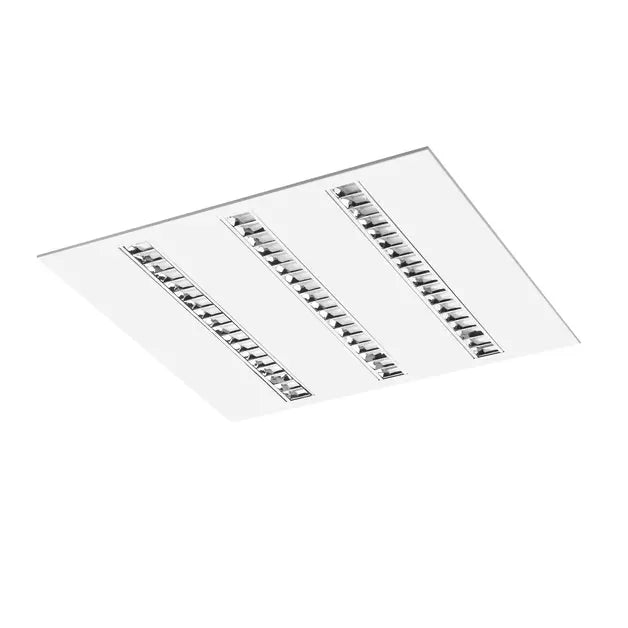

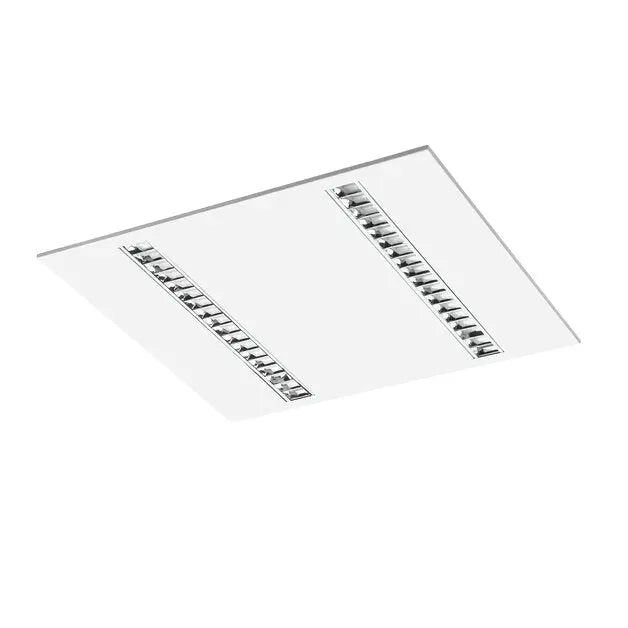

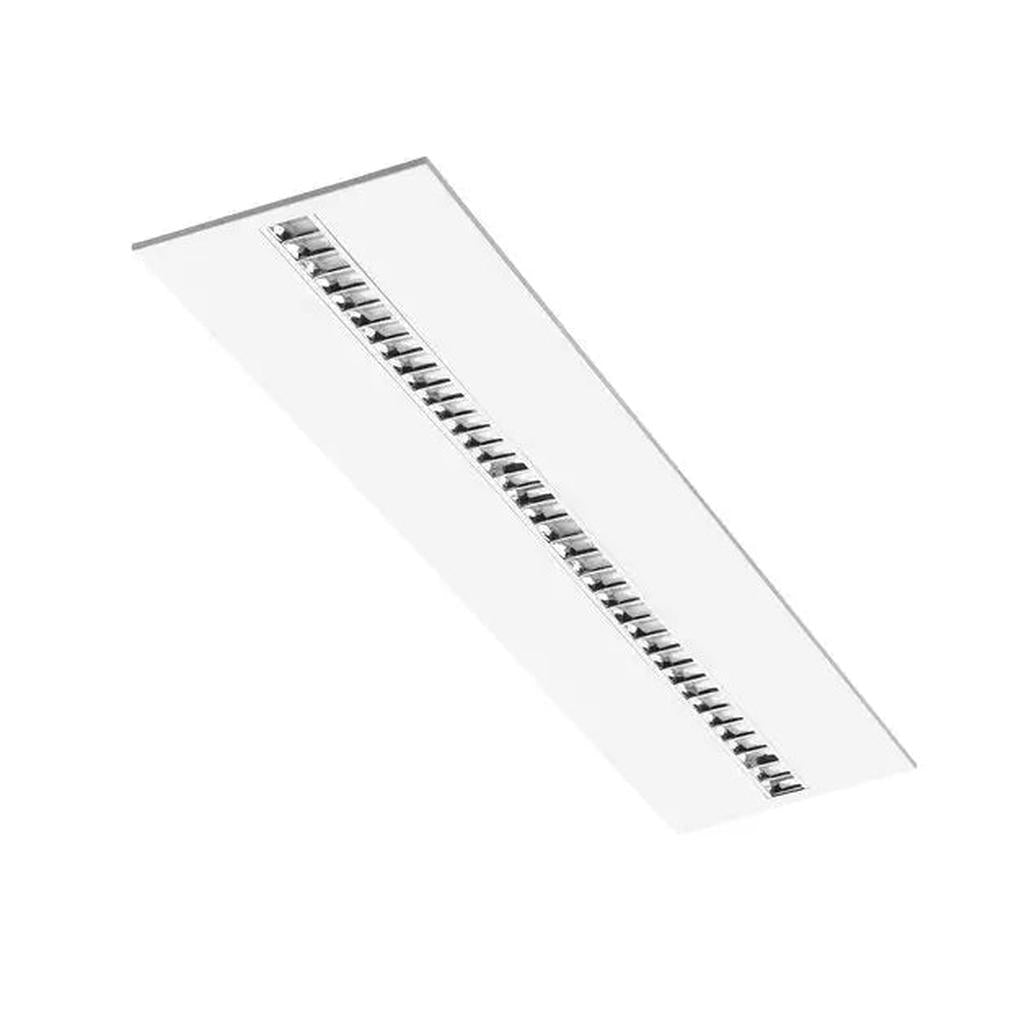

SC1010 | Recessed Lay-In Parabolic LED Luminaire for Grid Ceiling Systems

The SC1010 is a recessed lay-in modular LED luminaire engineered for precision glare control and high-efficiency lighting in modular ceiling systems.

Using parabolic optics to enhance visual comfort, it is the ideal choice for professional workspaces and public interiors where glare management is critical.

🔍 Key Features:

  • Parabolic Reflector Design: Integrated reflective optics provide optimized light distribution, reducing glare and enhancing occupant comfort.​
  • Lay-In Grid Compatibility: Designed for rapid drop-in installation into 600x600mm or 625x625mm exposed T-bar ceiling grids.​
  • High Luminous Efficacy: Achieves up to 120 lm/W, delivering bright, efficient illumination with minimized energy usage.​
  • Durable Construction: Steel housing with powder-coated finish and precision optical components for robust, reliable long-term performance.​
  • Flexible Control Options: Available with ON/OFF or DALI dimmable drivers; optional emergency module for enhanced safety and compliance.​
  • Certified Quality: CE and ENEC 28 certified, ensuring full compliance with European performance, safety, and reliability standards

🏢 Ideal Applications:

  • Office spaces and conference areas
  • Educational institutions and libraries
  • Healthcare facilities and clinical areas
  • Retail interiors
  • Government and public buildings​

📐 SC1010 Technical Specifications:

  • Power Consumption: 34W​
  • Luminous Flux: 4,100 lm​
  • Luminous Efficacy: Up to 120 lm/W​
  • Colour Temperature: 3000K or 4000K​
  • CRI: >80​
  • MacAdam SDCM: 3​
  • UGR: <19 (depending on ceiling height and grid layout)​
  • Driver Options: ON/OFF, DALI​
  • Emergency Module: Optional (1h emergency backup available)​
  • Protection Rating: IP40 (below ceiling), IP20 (above ceiling)​
  • Impact Resistance: IK04​
  • Class of Protection: Class I​
  • Housing Material: Steel (powder-coated)​
  • Optics Type: Parabolic reflectors for controlled light distribution and glare reduction​
  • Mounting Options: Recessed lay-in installation into 600x600mm or 625x625mm ceiling grids​
  • Dimensions: 595mm x 595mm / 620mm x 620mm options​
  • Weight: ~3.5 kg​

⚡ Quick takeaway:

  • The SC1010 is designed for demanding office and public spaces, offering glare-controlled performance, energy efficiency, and the reassurance of ENEC 28 Certification, a clear quality marker trusted by professional specifiers.
  • Serious lighting for serious environments. 🎯

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE LUMEN LENGTH (L) WIDTH (W) HEIGHT (H)
19

2,330 llm

 595 595 60
2-Cell
27

3,320 llm

 595 595 60
2-Cell
28

3,490 llm

 595 595 60
2-Cell
40

4,980 llm

 595 595 60
3-Cell
42

4,750 llm

 595 595 60
2-Cell
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
