SC1013

SC1013

SUSPENDED

This modern louver luminaire is designed for LED light sources, offering superior technical and optical performance. It features parabolic louvers that ensure a remarkably low glare rate, making it an ideal choice for environments where visual comfort is paramount. With its low power consumption compared to traditional light sources, this luminaire promotes energy efficiency without compromising on brightness. The innovative optical system makes it especially suitable for illuminating office spaces, particularly for tasks involving computer work, enhancing productivity while reducing eye strain.

  • Materials: White housing made of electrostatically painted steel, parabolic louver made of metallised plastic or white made of plastic, LED module with additional micro prismatic diffusor.
  • Installation:

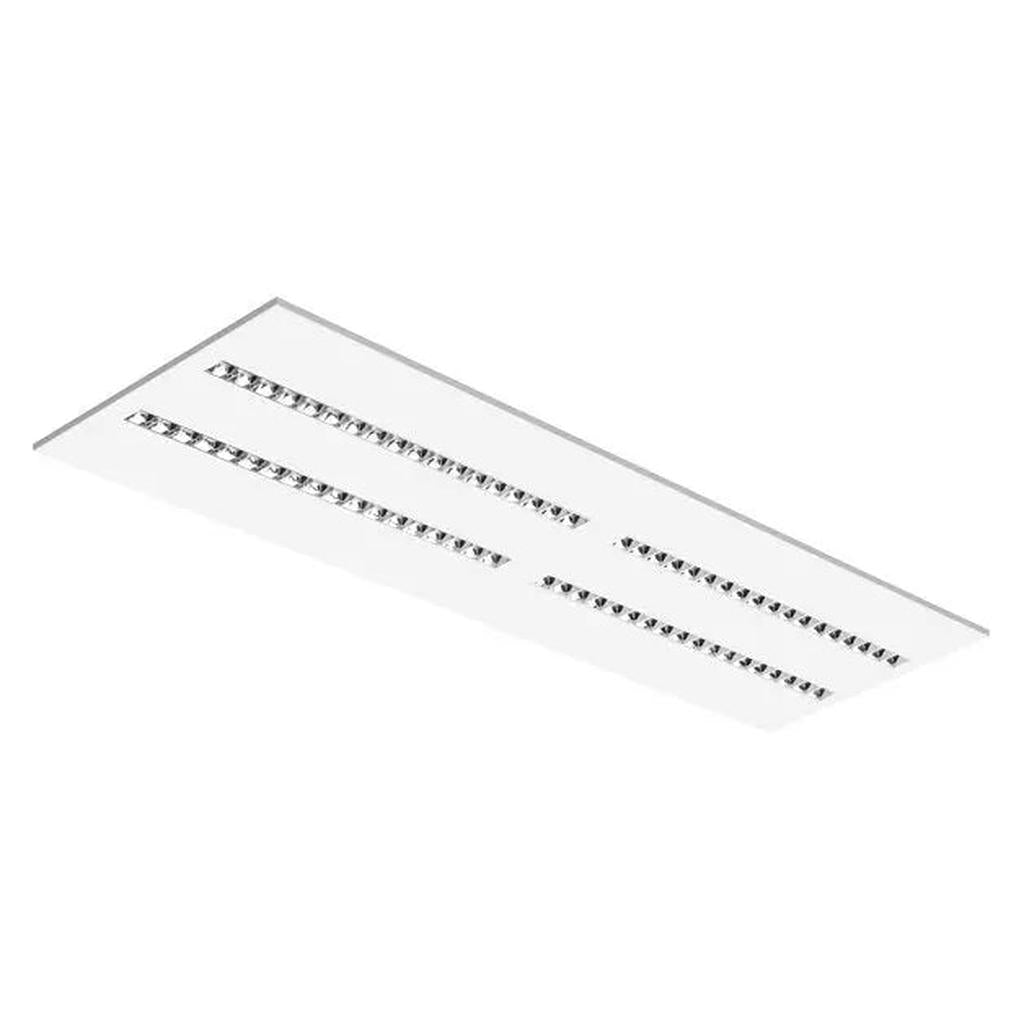

SC1013 | Recessed Lay-In Parabolic LED Luminaire for Grid Ceiling Systems

The SC1013 is a recessed lay-in modular LED luminaire designed for grid ceiling installations where glare control and visual comfort are essential.

Featuring precision parabolic optics, it delivers efficient, low-glare illumination ideal for office and educational environments.

🔍 Key Features:

  • Parabolic Low-Glare Design: Equipped with reflective parabolic louvres for optimized light control and reduced glare, enhancing occupant comfort.​
  • Lay-In Grid Compatibility: Engineered for quick drop-in installation into 600x600mm or 625x625mm modular ceiling grids.​
  • High Luminous Efficacy: Delivers up to 125 lm/W, providing bright, energy-efficient lighting across large spaces.​
  • Durable Construction: Manufactured with a powder-coated steel body and quality optics to ensure long-term, consistent performance.​
  • Flexible Control Options: Available with ON/OFF or DALI dimmable drivers; optional emergency module ensures compliance with safety regulations.​
  • Certified Quality: CE-compliant, guaranteeing safe, reliable operation for commercial projects.

🏢 Ideal Applications:

  • Office spaces and meeting rooms
  • Educational facilities and classrooms
  • Healthcare and clinical environments
  • Public sector and government buildings
  • Retail showrooms and commercial interiors​

📐 Technical Specifications:

  • Power Consumption: 34W​
  • Luminous Flux: 4,250 lm​
  • Luminous Efficacy: Up to 125 lm/W​
  • Colour Temperature: 3000K or 4000K​
  • CRI: >80​
  • MacAdam SDCM: 3​
  • UGR: <19 (depending on mounting height and optic specification)​
  • Driver Options: ON/OFF, DALI​
  • Emergency Module: Optional (1h emergency backup available)​
  • Protection Rating: IP40 (below ceiling), IP20 (above ceiling)​
  • Impact Resistance: IK04​
  • Class of Protection: Class I​
  • Housing Material: Steel (powder-coated)​
  • Optics Type: Parabolic reflectors for controlled beam distribution​
  • Mounting Options: Recessed lay-in installation into 600x600mm or 625x625mm ceiling grids​
  • Dimensions: 595mm x 595mm / 620mm x 620mm options​
  • Weight: ~3.5 kg​

⚡ Quick takeaway:

  • The SC1013 is your precision-engineered office lighting solution, combining low-glare comfort, fast grid installation, and sleek modular design.
  • Perfect when you need workspaces to feel bright, balanced, and easy on the eyes. 🎯

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE LUMEN LENGTH (L) WIDTH (W) HEIGHT (H)
28

3,440 llm

 595 595 45
3-Cell
37

4,600 llm

 595 595 45
4-Cell
