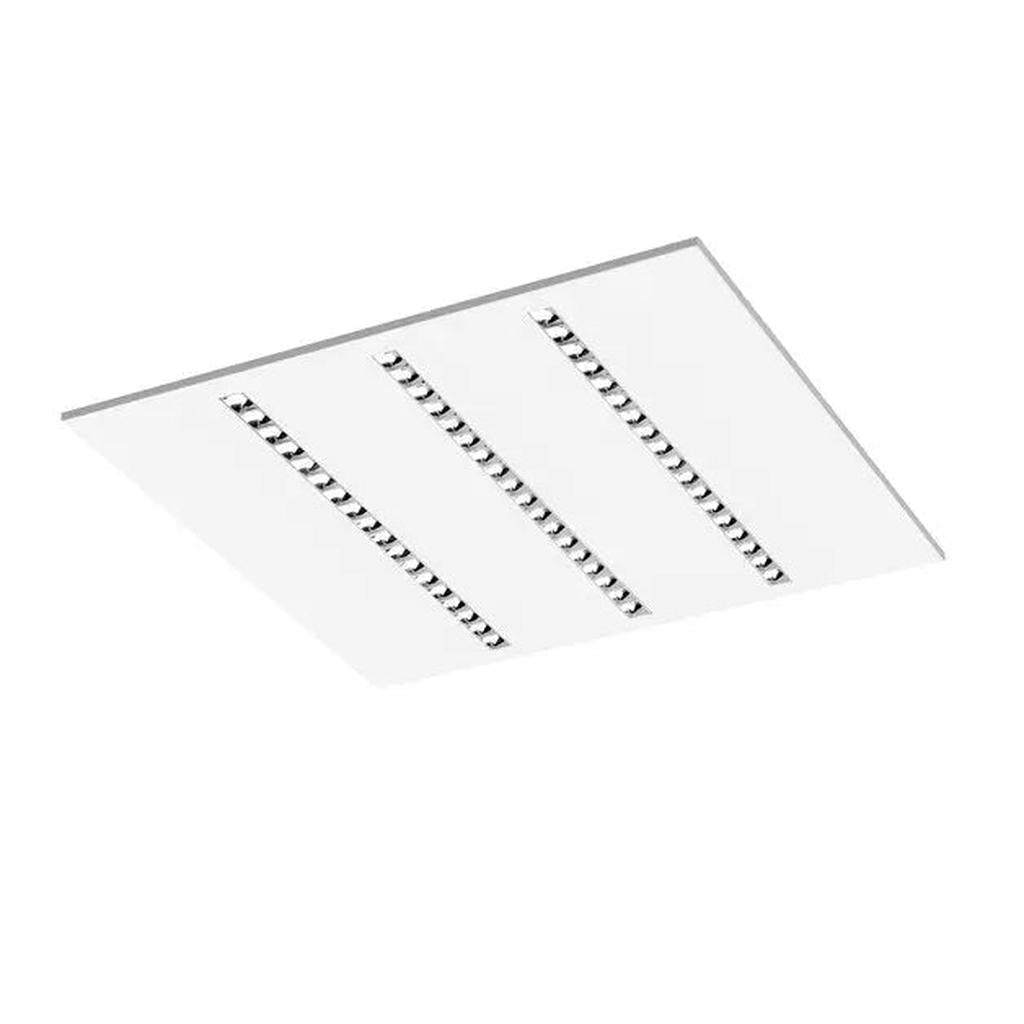

SC1014

SC1014

SUSPENDED

This modern louver luminaire is specifically designed for LED light sources, delivering exceptional technical and optical performance. It features parabolic louvers that provide a very low glare rate, enhancing visual comfort in workspaces. Additionally, its low power consumption compared to traditional light sources makes it an energy-efficient choice. The innovative optical system ensures optimal illumination, making this luminaire particularly well-suited for office environments, especially for tasks involving computer use, thereby promoting productivity and reducing eye strain.

  • Materials: White housing made of electrostatically painted steel, parabolic louver made of metallised plastic or white made of plastic, LED module with additional micro prismatic diffusor.
  • Installation:

SC1014 | Surface-Mounted Modular-Style LED Luminaire for Solid Ceiling Installations

The SC1014 is a surface-mounted modular-style LED luminaire engineered for direct installation onto solid ceilings.

Combining clean architectural lines with high luminous efficacy and low-glare illumination, it is an ideal solution for modern commercial and public environments where recessed installation is not possible.

🔍 Key Features:

  • Surface-Mounted Modular Design: Installs directly onto ceilings, replicating the look of recessed modular lighting without the need for ceiling cavities.​
  • High Luminous Efficacy: Achieves up to 125 lm/W, ensuring bright, energy-efficient illumination across open spaces.​
  • Low Glare Comfort: Features an opal PMMA diffuser to deliver soft, even light distribution with minimized glare.​
  • Durable Construction: Built with a powder-coated steel housing for robustness and longevity, even in demanding commercial settings.​
  • Flexible Control Options: Available with ON/OFF or DALI dimmable drivers; optional emergency module available for safety-critical installations.​
  • Certified Quality: CE-compliant, ensuring safe, reliable operation across all commercial and public sector applications.​

🏢 Ideal Applications:

  • Office workspaces and meeting rooms
  • Retail stores and shopping centres
  • Educational facilities and lecture rooms
  • Healthcare centres and clinics
  • Public sector and municipal buildings​

📐 Technical Specifications:

  • Power Consumption: 34W​
  • Luminous Flux: 4,250 lm​
  • Luminous Efficacy: Up to 125 lm/W​
  • Colour Temperature: 3000K or 4000K​
  • CRI: >80​
  • MacAdam SDCM: 3​
  • UGR: <19 (depending on installation height and room configuration)​
  • Driver Options: ON/OFF, DALI​
  • Emergency Module: Optional (1h emergency backup available)​
  • Protection Rating: IP40​
  • Impact Resistance: IK04​
  • Class of Protection: Class I​
  • Housing Material: Steel (powder-coated)​
  • Diffuser Material: PMMA (opal)​
  • Mounting Options: Surface-mounted directly onto solid ceilings​
  • Dimensions: 595mm x 595mm​
  • Weight: ~3.5 kg​

⚡ Quick takeaway:

  • The SC1014 is your fast, surface-mounted modular solution — ideal when you need clean, comfortable lighting but can't or don't want to recess fittings.
  • Maximum lighting quality, minimum installation fuss. 🎯

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE LUMEN LENGTH (L) WIDTH (W) HEIGHT (H)
28

3,440 llm

 595 595 45
3-Cell
37

4,600 llm

 595 595 45
4-Cell
