• SC1015.
1 1

SC1015

SC1015

SUSPENDED

This asymmetric luminaire is expertly designed for seamless installation into modular ceilings measuring 600x600, accommodating both visible support structures and plasterboard ceilings. It is particularly well-suited for illuminating school boards and shop shelves, providing effective lighting that enhances visibility and focus in educational and retail environments. The luminaire's versatile design ensures it blends effortlessly into various settings, delivering both functionality and aesthetic appeal.

  • Materials: Powder painted housing made of steel sheets (color: white), reflector made of polished aluminum.
  • Installation:

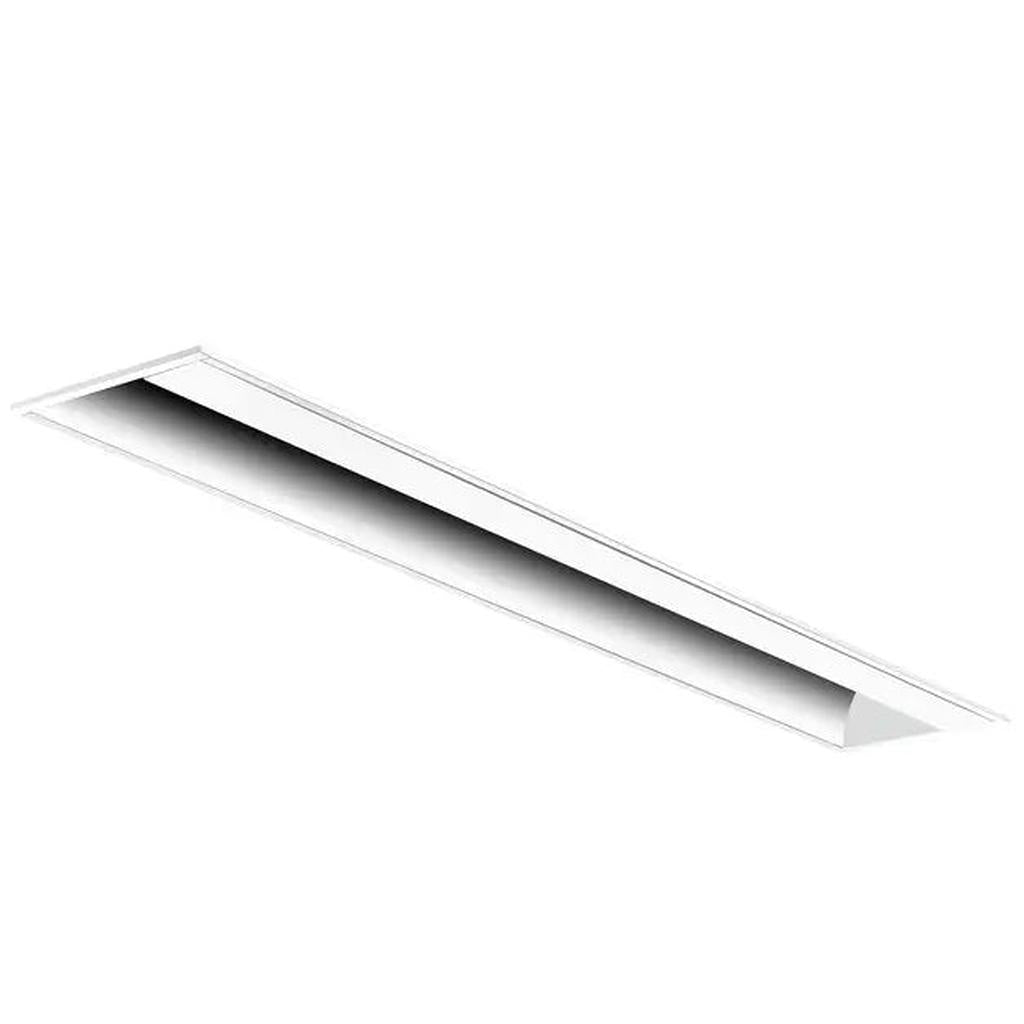

SC1015 | Recessed Asymmetrical LED Linear Luminaire for Wall Washing Applications

The SC1015 is a recessed asymmetrical LED luminaire engineered for precise wall washing and vertical surface illumination.

Its high-efficiency design and clean architectural lines make it ideal for commercial and public spaces requiring accentuated lighting effects.

🔍 Key Features:

  • Asymmetrical Light Distribution: Optimized for uniform wall washing, creating striking visual emphasis on vertical surfaces.​
  • High Luminous Efficacy: Delivers up to 134 lm/W, ensuring excellent brightness with energy-efficient operation.​
  • Discreet Recessed Installation: Minimalist recessed design allows seamless integration into ceilings, maintaining clean architectural aesthetics.​
  • Robust Construction: Features an aluminum body and durable PMMA diffuser for consistent performance and longevity.​
  • Flexible Driver Options: Available with ON/OFF or DALI drivers for tailored lighting control; optional emergency backup available.​
  • Certified Quality: Manufactured to CE standards, delivering dependable, safe operation.​

🏢 Ideal Applications:

  • Retail display areas
  • Museums and gallery walls
  • Hotel and hospitality lobbies
  • Commercial corridors
  • Architectural feature walls​

📐 SC1015 Technical Specifications:

  • Power Consumption: 17W / 34W / 51W​
  • Luminous Flux: 2,300 lm / 4,600 lm / 6,900 lm​
  • Luminous Efficacy: Up to 134 lm/W​
  • Colour Temperature: 3000K or 4000K​
  • CRI: >80​
  • MacAdam SDCM: 3​
  • UGR: <19 (depending on installation height and angle)​
  • Driver Options: ON/OFF, DALI​
  • Emergency Module: Optional (1h emergency version available)​
  • Protection Rating: IP20​
  • Impact Resistance: IK04​
  • Class of Protection: Class I​
  • Housing Material: Aluminum (powder-coated)​
  • Diffuser Material: PMMA (opal)​
  • Mounting Options: Recessed into ceiling (trimmed)​
  • Dimensions: 590mm / 1170mm / 1450mm lengths available​
  • Weight: ~1.8–3.0 kg (depending on length)​

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE LUMEN LENGTH (L) WIDTH (W) HEIGHT (H)
17

1,610 llm

 595 180 80
32
3,410 llm
 1195 180 80
