SC1016

SC1016

SUSPENDED

The SC1016 luminaire is distinguished by its excellent luminous performance, ensuring bright and even lighting across the surface of the diffuser. Designed for quick and efficient installation, it is ideal for use in public facilities featuring plasterboard ceilings. Its uniform luminance not only enhances visibility but also contributes to a comfortable and inviting atmosphere in various settings, making it a reliable choice for spaces requiring effective lighting solutions.

  • Materials: Powder painted steel sheet body (standard colour: white). OPAL, microprismatic (MPRM) diffusers
  • Installation:

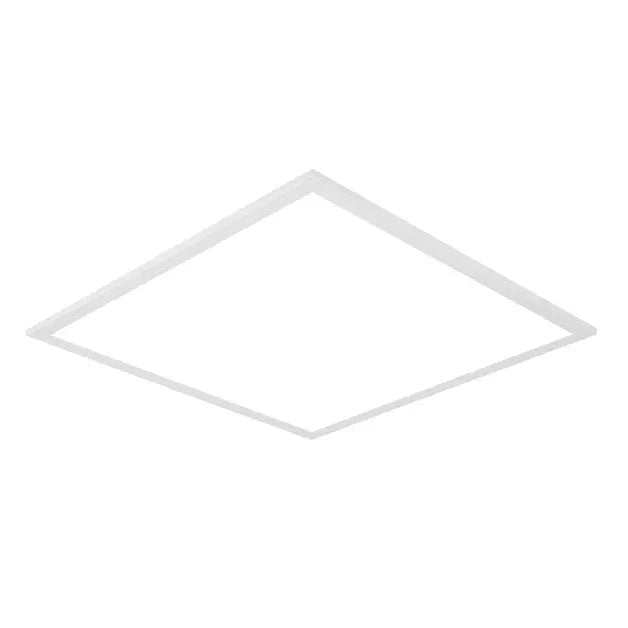

SC1016 | Recessed Lay-In Modular LED Luminaire for Grid Ceiling Systems

The SC1016 is a recessed modular LED luminaire engineered for simple lay-in installation into exposed T-bar ceiling grids.

Offering a combination of high luminous efficacy, visual comfort, and robust construction, it is ideal for a wide range of commercial and public sector applications.

🔍 Key Features:

  • Lay-In Grid Compatibility: Designed for quick and seamless installation into 600x600mm or 625x625mm modular ceiling grids.​
  • High Luminous Efficacy: Achieves up to 125 lm/W, delivering bright, energy-efficient lighting across commercial interiors.​
  • Low Glare Illumination: Optimized diffuser ensures comfortable, evenly distributed light with controlled glare levels.​
  • Durable Construction: Features a powder-coated steel body and an opal PMMA diffuser for consistent performance and longevity.​
  • Driver Flexibility: Available with ON/OFF or DALI dimmable drivers; optional emergency module available for safety-critical installations.​
  • Certified Quality: CE-compliant, ensuring safe, reliable performance across all installation types.

🏢 Ideal Applications:

  • Offices and meeting rooms
  • Retail and showroom environments
  • Educational facilities
  • Healthcare institutions
  • Public sector and government buildings​

📐 Technical Specifications:

  • Power Consumption: 34W​
  • Luminous Flux: 4,250 lm​
  • Luminous Efficacy: Up to 125 lm/W​
  • Colour Temperature: 3000K or 4000K​
  • CRI: >80​
  • MacAdam SDCM: 3​
  • UGR: <19 (depending on ceiling height and grid layout)​
  • Driver Options: ON/OFF, DALI​
  • Emergency Module: Optional (1h emergency pack available)​
  • Protection Rating: IP40 (below ceiling), IP20 (above ceiling)​
  • Impact Resistance: IK04​
  • Class of Protection: Class I​
  • Housing Material: Steel (powder-coated)​
  • Diffuser Material: PMMA (opal)​
  • Mounting Options: Recessed lay-in installation into modular grid ceilings (600x600mm or 625x625mm)​
  • Dimensions: 595mm x 595mm / 620mm x 620mm options​
  • Weight: ~3.2–3.5 kg (depending on configuration)​

⚡ Quick takeaway:

  • The SC1016 is your dependable, efficient lay-in LED panel — offering quick install, strong performance, and a clean architectural finish without the cost and complexity of bespoke ceilings.
  • Built for commercial fit-outs, office refurbishments, and volume-driven project work. 🎯


DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE llm/W LENGTH (L) WIDTH (W) HEIGHT (H)
10

1,290 llm

 595
295
 70
17

2,260 llm

 595 295 70
18

2,830 llm

 595 595 70
31

4,710 llm

 595 595 70
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
