SC1017

SC1017

SUSPENDED

The SC1017 luminaire is notable for its impressive luminous performance, offering bright and consistent lighting that enhances visibility. Designed for quick and straightforward installation, it ensures efficiency in both residential and commercial settings. The uniform luminance across the diffuser surface creates a warm and inviting ambiance, making it an excellent choice for various applications where effective and aesthetically pleasing lighting is essential.

  • Materials: Aluminium frame (standard colour: white). Microprismatic (MPRM) diffuser. Diffuser of PRATO LED is made of 5 layers
  • Installation:

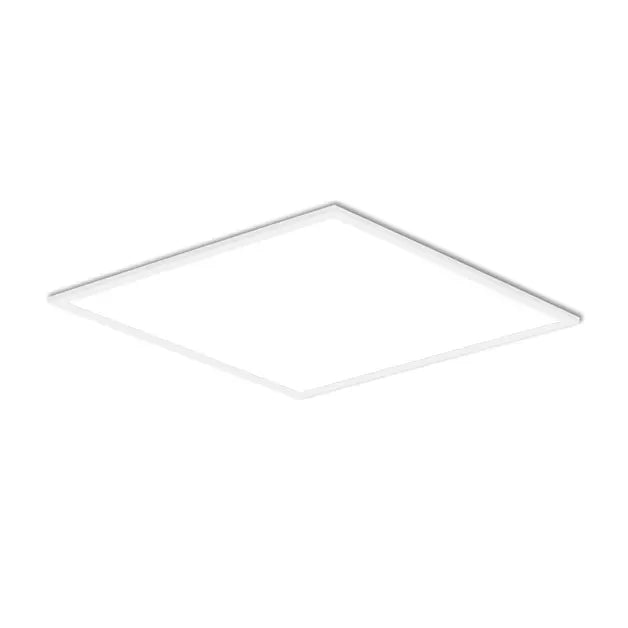

SC1017 | Recessed Lay-In Fixed LED Luminaire for Grid Ceiling Systems

The SC1017 is a recessed lay-in modular LED luminaire developed for modular ceiling systems requiring clean, efficient, fixed-beam illumination.

Combining high luminous efficacy with a minimalist design, it is ideal for commercial, educational, and healthcare applications demanding reliable, energy-efficient lighting.

🔍 Key Features:

  • Fixed Beam Distribution: Optimized light spread delivers broad, even illumination, minimizing shadows and creating visually comfortable environments.​
  • Lay-In Grid Compatibility: Designed for seamless drop-in installation into 600x600mm or 625x625mm T-bar modular ceiling grids.​
  • High Luminous Efficacy: Provides up to 120 lm/W, achieving bright, efficient lighting while supporting lower operational energy costs.​
  • Minimalist Design: Slim square design integrates smoothly into modern ceiling layouts, maintaining a clean architectural appearance.​
  • Flexible Control Options: Available with ON/OFF or DALI dimmable drivers; optional emergency module ensures compliance in safety-critical spaces.​
  • Certified Quality: CE compliant, ensuring reliability and conformity to essential European safety standards.

🏢 Ideal Applications:

  • Corporate offices and meeting spaces
  • Retail environments and showrooms
  • Educational institutions and classrooms
  • Healthcare facilities and clinics
  • Public sector and government buildings​

📐 Technical Specifications:

  • Power Consumption: 34W​
  • Luminous Flux: 4,100 lm​
  • Luminous Efficacy: Up to 120 lm/W​
  • Colour Temperature: 3000K or 4000K​
  • CRI: >80​
  • MacAdam SDCM: 3​
  • UGR: <19 (depending on ceiling height and layout)​
  • Driver Options: ON/OFF, DALI​
  • Emergency Module: Optional (1h emergency backup available)​
  • Protection Rating: IP40 (below ceiling), IP20 (above ceiling)​
  • Impact Resistance: IK04​
  • Class of Protection: Class I​
  • Housing Material: Steel (powder-coated)​
  • Diffuser Material: PMMA (opal)​
  • Mounting Options: Recessed lay-in installation into 600x600mm or 625x625mm ceiling grids​
  • Dimensions: 595mm x 595mm / 620mm x 620mm options​
  • Weight: ~3.5 kg​

⚡ Quick takeaway:

  • The SC1017 is a cost-effective, clean modular lighting option — delivering high-quality illumination in grid ceilings without over-complicating project specifications.
  • Simple, reliable, CE-certified — perfect for fast-track commercial fit-outs. 🎯

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE LUMEN LENGTH (L) WIDTH (W) HEIGHT (H)
26

3,230 llm

 595 595 12
36

4,130 llm

 595 595 12
37

4,320 llm

 1195 595 12
40

4,785 llm

 595 595 12
41

4,885 llm

 1195 595 12
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
