SC1019

SC1019

SUSPENDED

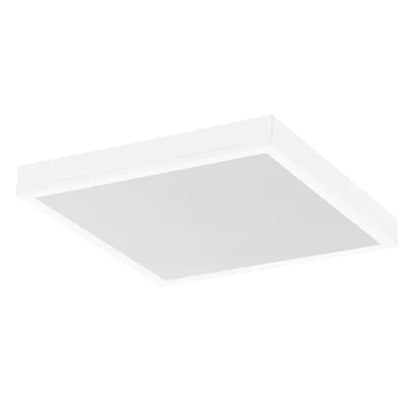

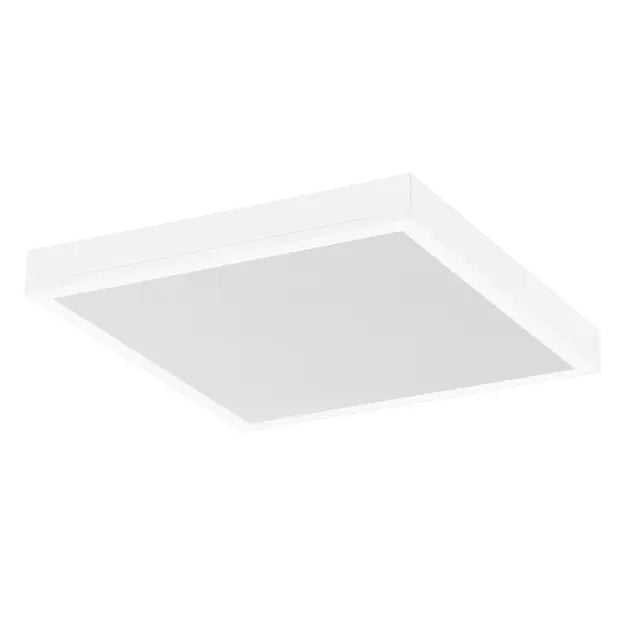

The SC1019 luminaire is notable for its impressive luminous performance, ensuring bright and consistent lighting across the diffuser surface. Designed for swift installation, it is well-suited for a variety of environments, including commercial and public spaces. The power supplies are enhanced with crucial safety features, including overload, short circuit, and overheating protection, which ensure reliable operation and peace of mind. This blend of efficiency, safety, and ease of installation makes the SC1019 an excellent choice for effective lighting solutions.

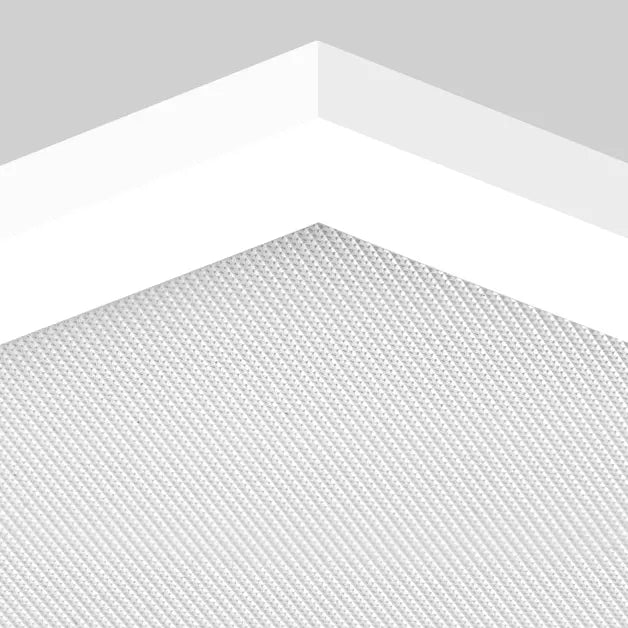

  • Materials: Aluminium frame (standard colour: white). Microprismatic (MPRM) diffuser. Driver outside the luminaire (in set)
  • Installation:

SC1019 | Recessed Lay-In Adjustable LED Luminaire for Grid Ceiling Systems

The SC1019 is a recessed lay-in modular LED luminaire offering directional adjustability within a standard modular ceiling grid.

Designed for enhanced flexibility, it combines high luminous efficacy, architectural precision, and glare control, making it ideal for dynamic commercial interiors.

🔍 Key Features:

  • Adjustable Light Direction: Adjustable internal LED modules allow precise aiming of light for accenting workspaces, displays, or architectural features.​
  • Lay-In Grid Compatibility: Fits directly into 600x600mm or 625x625mm modular T-bar ceiling grids for clean, efficient installations.​
  • High Luminous Efficacy: Provides up to 115 lm/W, ensuring strong, energy-efficient illumination across varied commercial applications.​
  • Architectural Design: Combines clean modular styling with flexibility, maintaining a professional appearance even with directional adjustments.​
  • Flexible Control Options: Available with ON/OFF or DALI dimmable drivers; optional emergency module available for added resilience.​
  • Certified Quality: CE Cirtified, meeting rigorous European safety, performance, and reliability standards.

🏢 Ideal Applications:

  • Offices and corporate headquarters
  • Retail spaces requiring flexible illumination
  • Educational environments and libraries
  • Healthcare facilities
  • Public sector and gallery spaces​

📐 Technical Specifications:

  • Power Consumption: 34W​
  • Luminous Flux: 3,900 lm​
  • Luminous Efficacy: Up to 115 lm/W​
  • Colour Temperature: 3000K or 4000K​
  • CRI: >80​
  • MacAdam SDCM: 3​
  • UGR: <19 (depending on adjustment and ceiling height)​
  • Driver Options: ON/OFF, DALI​
  • Emergency Module: Optional (1h emergency backup available)​
  • Protection Rating: IP40 (below ceiling), IP20 (above ceiling)​
  • Impact Resistance: IK04​
  • Class of Protection: Class I​
  • Housing Material: Steel (powder-coated)​
  • Diffuser Material: PMMA (opal), with adjustable LED module​
  • Mounting Options: Recessed lay-in installation into 600x600mm or 625x625mm modular ceilings​
  • Dimensions: 595mm x 595mm / 620mm x 620mm options​
  • Weight: ~3.6 kg​

⚡ Quick takeaway:

  • The SC1019 is your adjustable modular lighting solution — offering the precision of directional light inside a modular lay-in ceiling system, with the full reassurance of ENEC 28 Certification.
  • Perfect when your ceilings need to stay clean — but your lighting needs to flex with the space. 🎯

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.


WATTAGE LENGTH (L) WIDTH (W) HEIGHT (H)
34 595 595 67
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
