• SC1020.
1 1

SC1020

SC1020

SUSPENDED

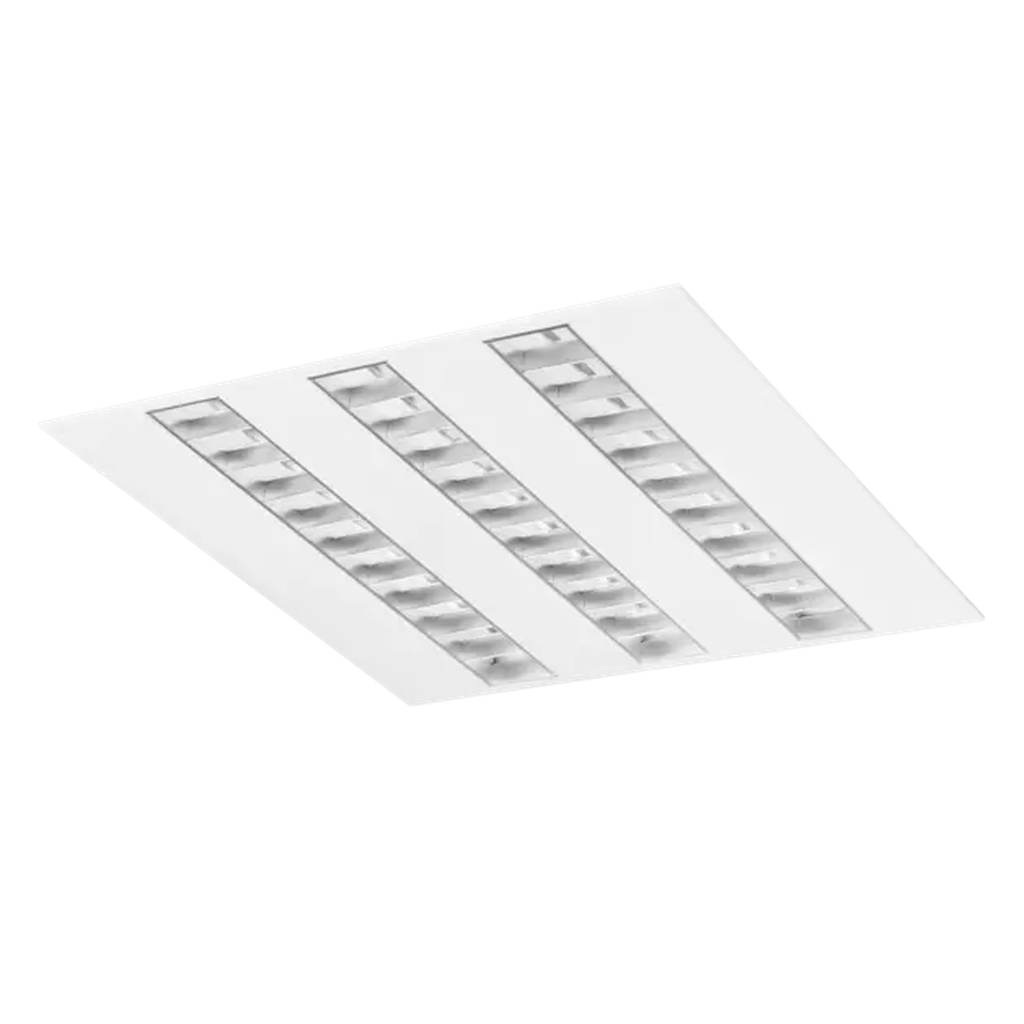

This modern LED luminaire boasts high optical and technical specifications, making it an ideal choice for installation in suspended ceilings. It features symmetrically arranged aluminum louvers, which not only enhance its aesthetic appeal but also contribute to effective light distribution. This design ensures minimal glare and optimal illumination, making it suitable for a variety of applications, including offices, conference rooms, and other professional environments. With its blend of functionality and style, this luminaire is perfect for enhancing the overall lighting experience in any space.

  • Materials: Powder painted steel sheet body in white color, parabolic (PAR-S) louver made of satin aluminum of high purity.
  • Installation:

SC1020 | Recessed Modular LED Luminaire for Grid Ceiling Installations

The SC1020 is a recessed modular LED luminaire engineered for high-efficiency lighting in grid ceiling systems. Designed for fast installation and consistent illumination, it offers a clean architectural appearance ideal for modern commercial spaces.

🔍 Key Features:

Modular Ceiling Compatibility: Designed for standard 600x600mm and 625x625mm grid ceilings for rapid, seamless integration.​

High Luminous Efficacy: Achieves up to 134 lm/W, ensuring energy-efficient performance while delivering excellent visual comfort.​

Uniform Light Distribution: Optimized diffuser ensures even, glare-controlled illumination across workspaces and communal areas.​

Durable Construction: Features a powder-coated steel body and PMMA opal diffuser for consistent light quality and extended service life.​

Driver Flexibility: Available with ON/OFF or DALI dimmable drivers; optional emergency module for critical applications.​

Certified Quality: Fully CE-compliant, ensuring safe, reliable, and professional operation.​



🏢 Ideal Applications:

Offices and open-plan workspaces

Educational facilities and classrooms

Healthcare centers and hospitals

Retail environments

Public sector buildings and libraries​



📐 Technical Specifications:

Power Consumption: 22W / 34W / 46W​

Luminous Flux: 3,100 lm / 4,700 lm / 6,200 lm​

Luminous Efficacy: Up to 134 lm/W​

Colour Temperature: 3000K or 4000K​

CRI: >80​

MacAdam SDCM: 3​

UGR: <19 (depending on installation height and spacing)​

Driver Options: ON/OFF, DALI​

Emergency Module: Optional (1h emergency pack available)​

Protection Rating: IP40 (below ceiling), IP20 (above ceiling)​

Impact Resistance: IK04​

Class of Protection: Class I​

Housing Material: Steel (powder-coated)​

Diffuser Material: PMMA (opal)​

Mounting Options: Recessed lay-in (modular grid ceilings 600x600mm or 625x625mm)​

Dimensions: 595x595mm / 620x620mm options​

Weight: ~2.8–4.0 kg (depending on model)​



⚡ Quick reality check:


The SC1020 is your dependable grid tile warrior — low-glare, clean-looking, fast to install, perfect for volume projects needing energy efficiency without overcomplicating specification.

Think “first choice” for CAT-A office fits, schools, or healthcare tender packs. 🎯



DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE llm/W LENGTH (L) WIDTH (W) HEIGHT (H)
31
3,320 llm
 595 595 50
45
4,980 llm
 595 595 50
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
