SC1021

SC1021

SUSPENDED

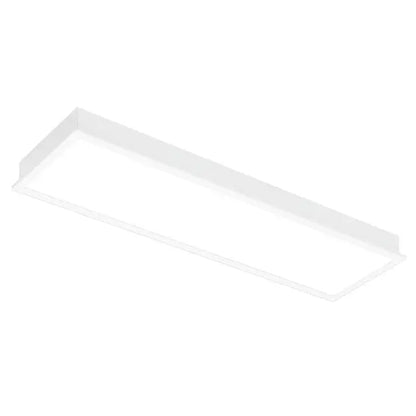

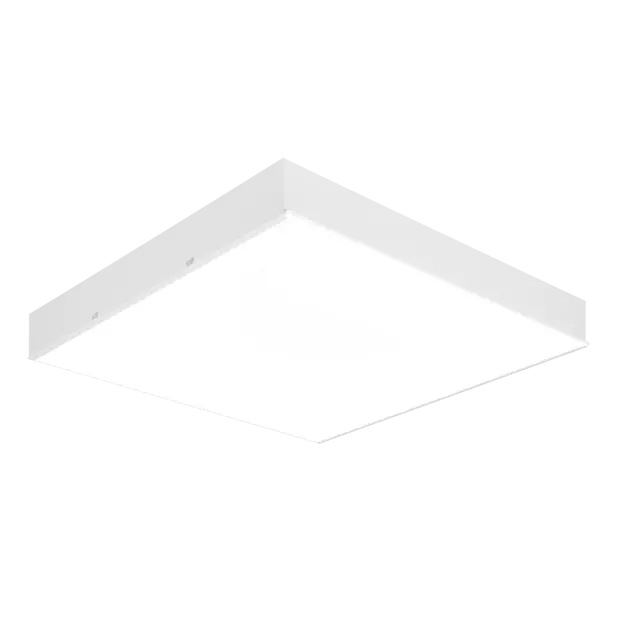

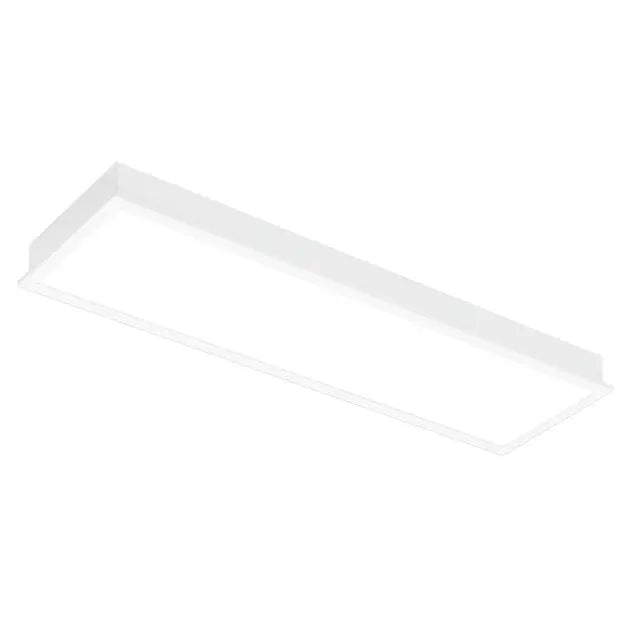

SC1021 is a highly efficient luminaire known for its excellent luminous performance and quick installation features. It delivers uniform luminance across the surface of the diffuser, ensuring consistent lighting quality. Designed specifically for installation in modular ceilings with a visible supporting structure, SC1021 is ideal for public facilities such as schools, hospitals, and commercial spaces. Its reliable design and effective light distribution make it a practical choice for enhancing visibility and comfort in any environment.

  • Materials: Powder painted steel sheet body (standard colour: white). OPAL and microprismatic (MPRM) diffusers.
  • Installation:

SC1021 | Recessed Lay-In Modular LED Luminaire for Architectural Grid Ceilings

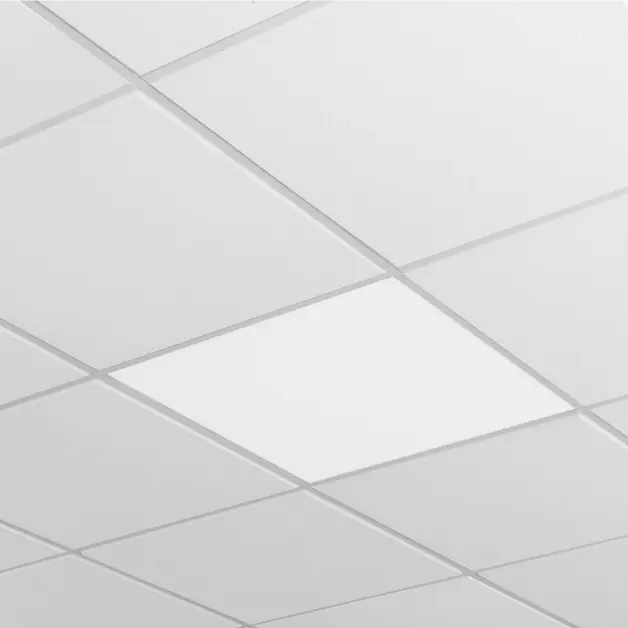

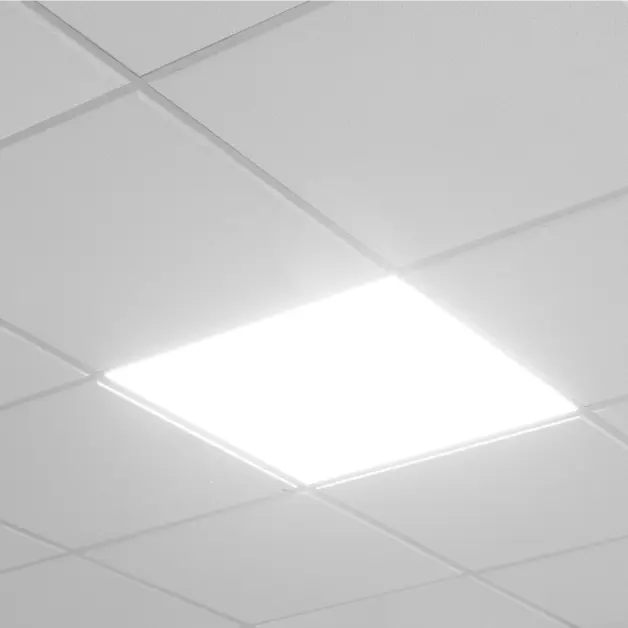

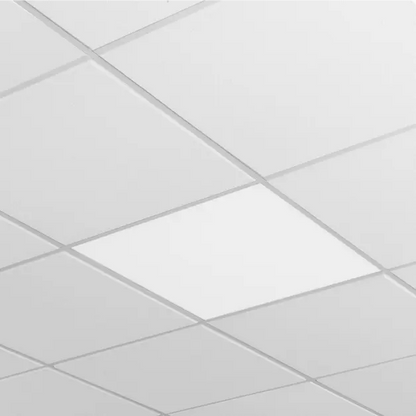

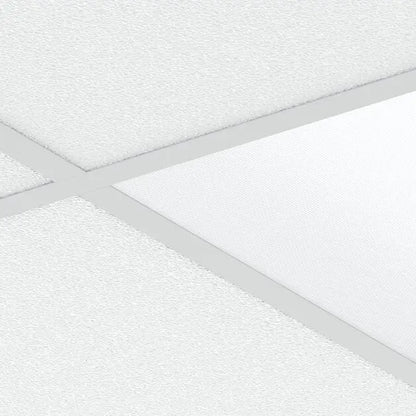

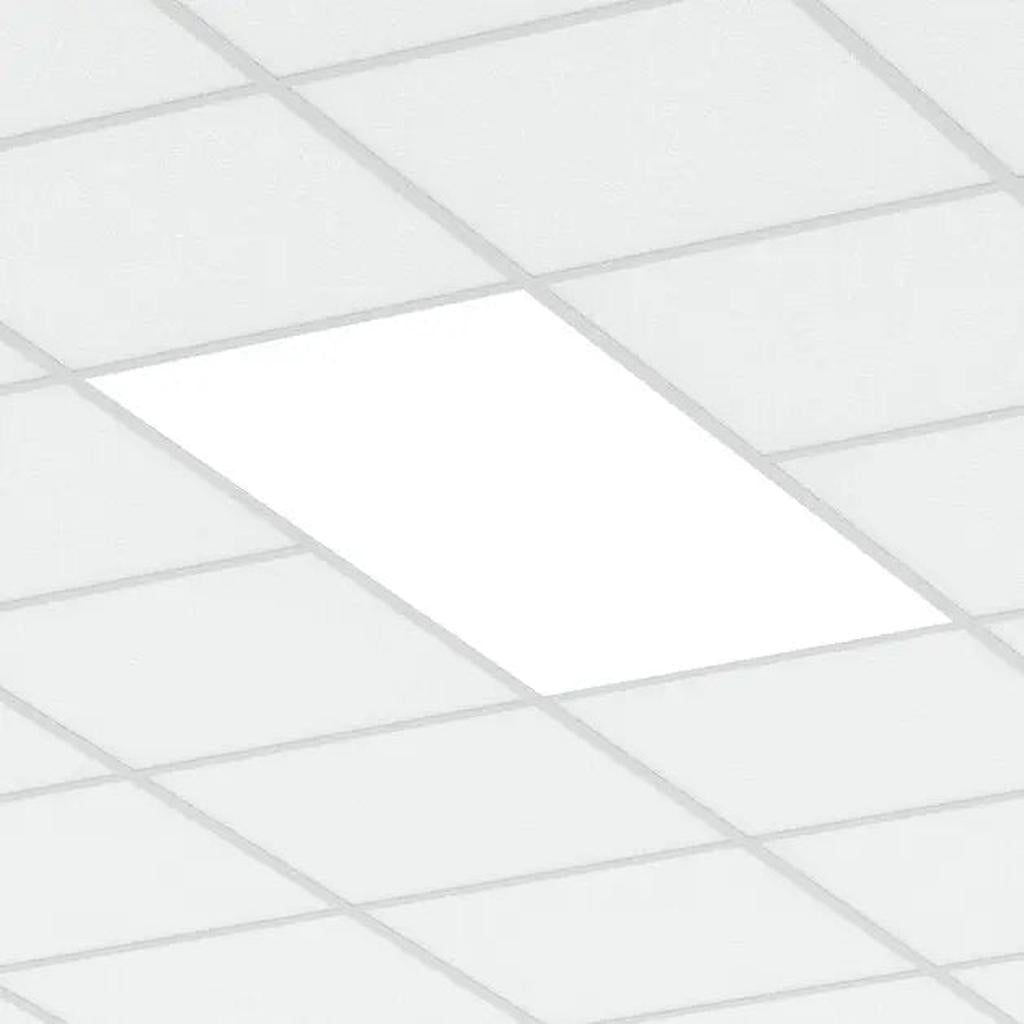

The SC1021 is a recessed modular LED luminaire engineered for lay-in installation into standard 600x600mm and 625x625mm grid ceilings.

Designed with a refined visual profile, it provides efficient, low-glare illumination while delivering a clean, modern architectural finish.

🔍 Key Features:

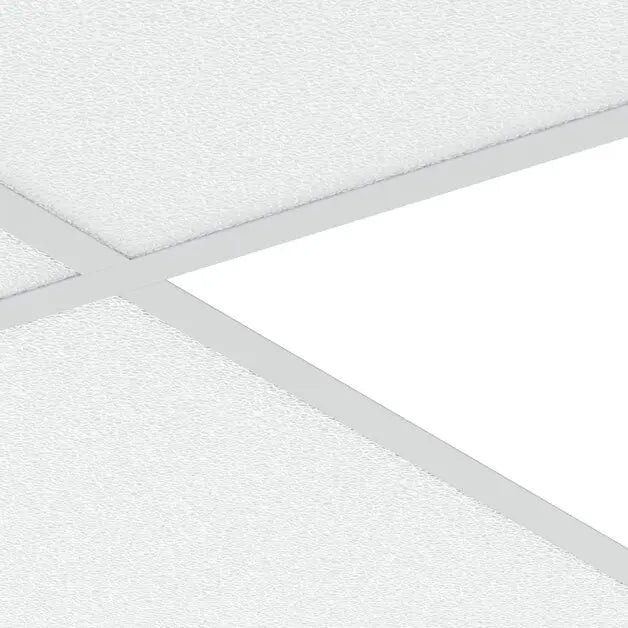

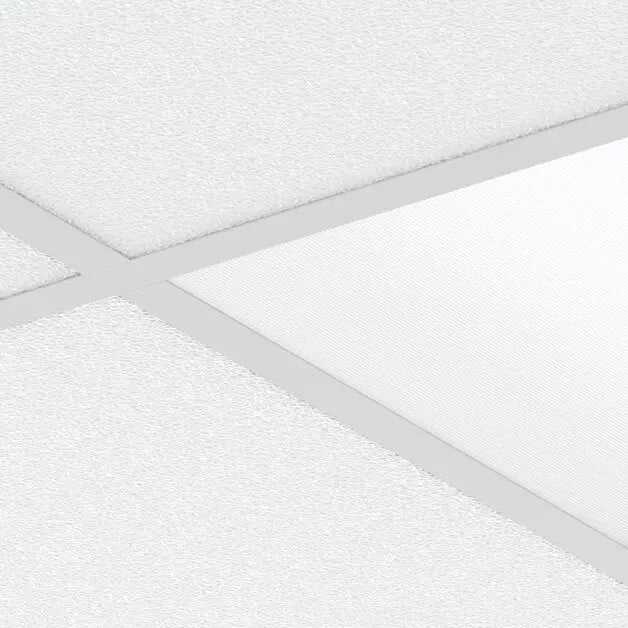

  • Architectural Lay-In Design: Narrow-profile aesthetic fits modular ceiling grids for a sharper, more sophisticated ceiling appearance.​
  • High Luminous Efficacy: Offers up to 130 lm/W, balancing excellent brightness with low operational energy costs.​
  • Visual Comfort: Optimized light distribution with low glare levels, supporting comfortable visual environments for office and educational settings.​
  • Durable Construction: Built with a powder-coated steel housing and high-transparency PMMA diffuser for consistent light quality and robustness.​
  • Driver Flexibility: Available with ON/OFF or DALI dimmable drivers; optional emergency module for safety and compliance in critical installations.​
  • Certified Quality: CE-compliant, ensuring safety, durability, and regulatory approval for commercial projects.​

🏢 Ideal Applications:

  • High-end office environments
  • Educational facilities and universities
  • Retail and boutique interiors
  • Healthcare institutions
  • Government and public sector buildings​

📐 Technical Specifications:

  • Power Consumption: 30W​
  • Luminous Flux: 4,000 lm​
  • Luminous Efficacy: Up to 130 lm/W​
  • Colour Temperature: 3000K or 4000K​
  • CRI: >80​
  • MacAdam SDCM: 3​
  • UGR: <19 (depending on mounting height and ceiling design)​
  • Driver Options: ON/OFF, DALI​
  • Emergency Module: Optional (1h emergency backup available)​
  • Protection Rating: IP40 (below ceiling), IP20 (above ceiling)​
  • Impact Resistance: IK04​
  • Class of Protection: Class I​
  • Housing Material: Steel (powder-coated)​
  • Diffuser Material: PMMA (opal)​
  • Mounting Options: Recessed lay-in installation into modular 600x600mm or 625x625mm grid ceilings​
  • Dimensions: 595mm x 595mm / 620mm x 620mm options​
  • Weight: ~3.2 kg​

⚡ Quick takeaway:

  • The SC1021 is your architectural grid solution — providing clean, refined ceiling layouts while still hitting energy targets and installation simplicity.
  • Ideal when you need lighting that looks more “designed” without losing fast project efficiency. 🎯

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE LUMEN LENGTH (L) WIDTH (W) HEIGHT (H)
31

3,320 llm

 595 595 50
45

4,980 llm

 1195 595 50
