Lay-in

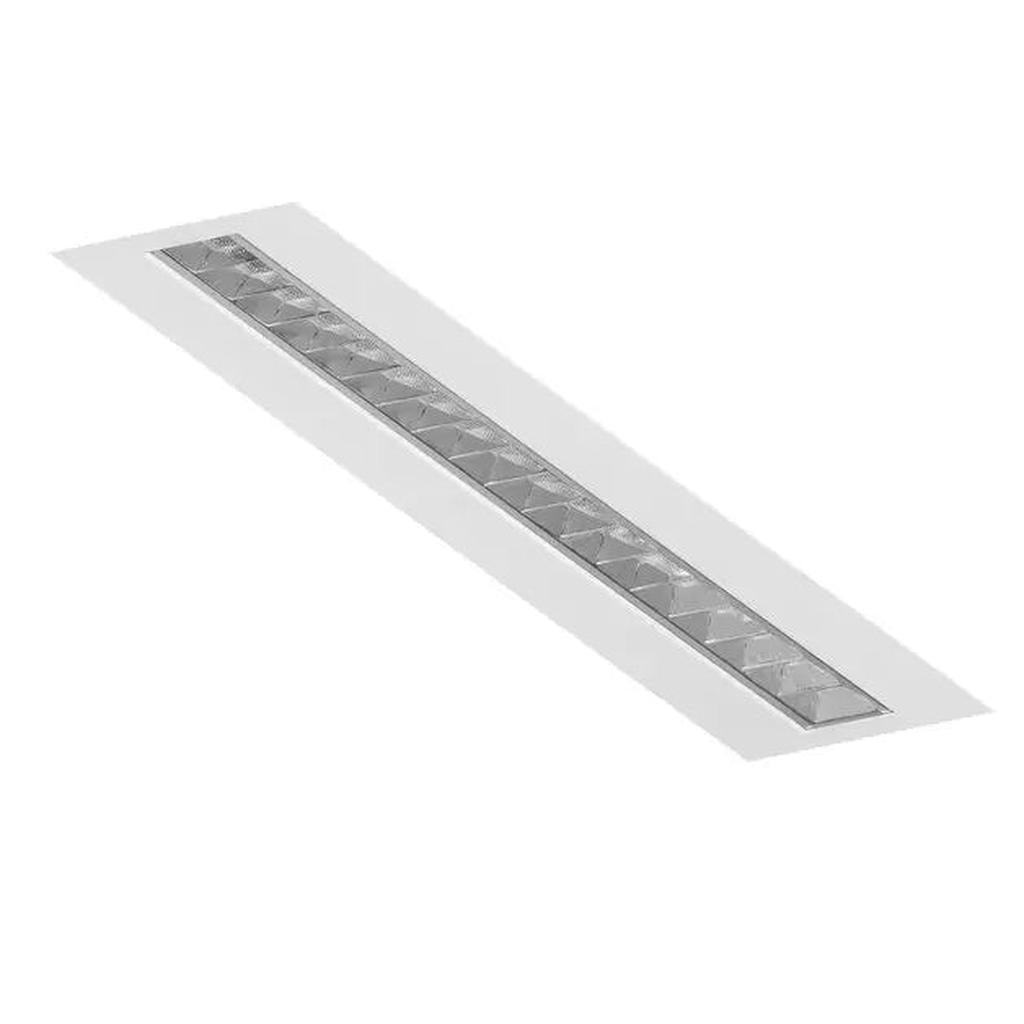

SC1022 This versatile luminaire is designed for universal application in various office environments, including hallways, conference rooms, and computer rooms. Available in two configurations—parabolic louver (PAR) for reduced glare and opal diffuser (OPAL) for softer light diffusion—this fixture ensures optimal lighting conditions for any setting. It incorporates power supplies with a power factor cos φ > 0.95, promoting energy efficiency. Additionally, DALI lighting control is available upon request, enhancing flexibility in managing lighting systems. The luminaire is compatible with T24 ceilings, with T15 ceiling versions also available upon request, making it an ideal choice for modern office spaces.

SC1022 | Recessed Linear LED Luminaire for Seamless Architectural Lighting

The SC1022 is a recessed linear LED luminaire designed to create continuous lines of clean, uninterrupted illumination across walls and ceilings.

Built for seamless architectural integration, it delivers high-efficiency lighting while enhancing spatial design.

🔍 Key Features:

  • Seamless Recessed Profile: Designed for flush integration into walls and ceilings, delivering uniform linear lighting without visible disruption.​
  • High Luminous Efficacy: Achieves up to 125 lm/W, ensuring high light output with optimized energy efficiency.​
  • Continuous Line Capability: Engineered for modular joining, enabling the creation of long, uninterrupted light runs for cohesive architectural effects.​
  • Durable Build: Constructed with a steel body and an opal PMMA diffuser, providing consistent performance and durability across project lifespans.​
  • Driver Flexibility: Available with ON/OFF or DALI dimmable drivers; optional emergency pack for added safety and compliance.​
  • Certified Quality: CE-compliant, ensuring safe, reliable operation for commercial and public sector installations.​

🏢 Ideal Applications:

  • Office corridors and open workspaces
  • Retail environments and boutique displays
  • Hotel receptions and hospitality interiors
  • Public sector buildings and cultural spaces
  • Educational and healthcare facilities​

📐 Technical Specifications:

  • Power Consumption: 22W / 34W / 46W​
  • Luminous Flux: 2,750 lm / 4,250 lm / 5,750 lm​
  • Luminous Efficacy: Up to 125 lm/W​
  • Colour Temperature: 3000K or 4000K​
  • CRI: >80​
  • MacAdam SDCM: 3​
  • UGR: <22 (depending on installation configuration and ceiling height)​
  • Driver Options: ON/OFF, DALI​
  • Emergency Module: Optional (1h emergency backup available)​
  • Protection Rating: IP20​
  • Impact Resistance: IK04​
  • Class of Protection: Class I​
  • Housing Material: Steel (powder-coated)​
  • Diffuser Material: PMMA (opal)​
  • Mounting Options: Recessed into walls or ceilings (modular continuous installation possible)​
  • Dimensions: 1195mm / 1475mm / 1755mm length options​
  • Weight: ~2.5–4.2 kg (depending on length and model)

⚡ Quick takeaway:

  • The SC1022 is your main straight run fitting — the backbone for building powerful, seamless linear light lines across interior architecture.
  • When you want the light to guide people through a space — without shouting about it. 🎯

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE llm/W LENGTH (L) WIDTH (W) HEIGHT (H)
17

1,620 llm

 595 134 87
31

3,190 llm

 595 134 87
32

3,700 llm

 1195 134 87
60

6,600 llm

 1195 134 87
