SC1027

SC1027

SUSPENDED

The SC1027 is a modern luminaire engineered for LED light sources, offering exceptional lighting efficiency without compromising on aesthetic appeal. Its lightweight design allows for quick installation, making it a practical choice for various settings. With a focus on delivering high lighting performance, it maintains a low Unified Glare Rating (UGR) for comfortable illumination. The luminaire is equipped with a power supply boasting a power factor of cos φ > 0.95, ensuring energy efficiency. For added versatility, a DALI ballast is available upon request. Ideal for offices, conference rooms, and passageways, the SC1027 combines functionality with style to enhance any workspace.

  • Materials: Housing made of steel, electrostatically painted in white (standard color: white) with all other RAL colors available. Microprismatic diffuser (MPRM).
  • Installation:

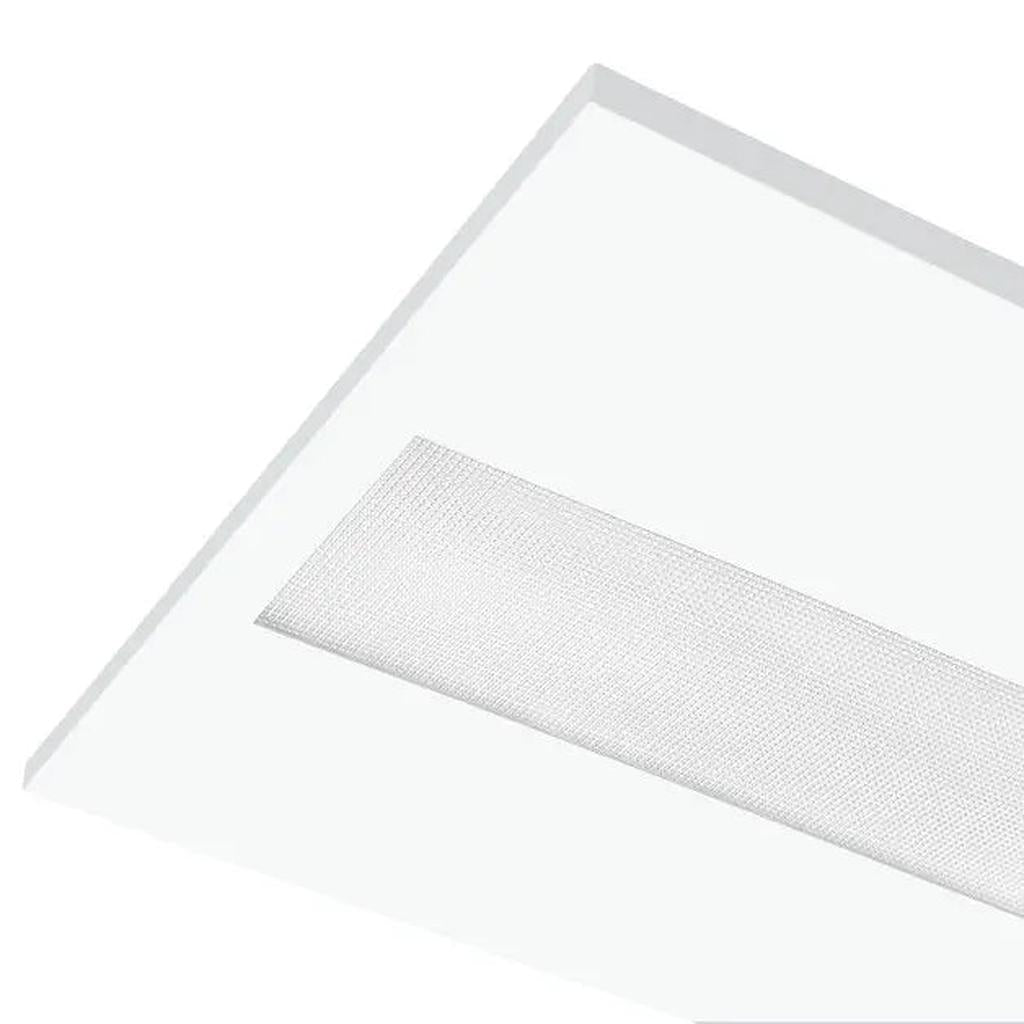

SC1027 | Recessed Lay-In Modular LED Luminaire for Grid Ceiling Installations

The SC1027 is a recessed modular LED luminaire designed for seamless lay-in installation into standard 600x600mm and 625x625mm grid ceilings.

With high luminous efficacy and a clean architectural profile, it offers an ideal lighting solution for modern commercial and public sector spaces.


🔍 Key Features:

Lay-In Grid Compatibility: Designed for direct lay-in fitting into exposed T-bar modular ceilings for fast, simple installation.​

High Luminous Efficacy: Delivers up to 130 lm/W, ensuring excellent light output while maintaining low energy consumption.​

Low Glare Performance: Carefully diffused illumination offers comfortable working environments with reduced glare.​

Durable Construction: Robust steel housing with powder-coated finish and opal PMMA diffuser ensure consistent, long-lasting performance.​

Driver Flexibility: Available with ON/OFF or DALI dimmable drivers; optional emergency version for safety-critical installations.​

Certified Quality: CE-compliant, guaranteeing safe, reliable, and standards-compliant operation.​


🏢 SC1027 Ideal Applications:

Office spaces and conference rooms

Retail and commercial areas

Educational institutions

Healthcare and clinical environments

Government and public service buildings​


📐 Technical Specifications:

Power Consumption: 34W​

Luminous Flux: 4,300 lm​

Luminous Efficacy: Up to 130 lm/W​

Colour Temperature: 3000K or 4000K​

CRI: >80​

MacAdam SDCM: 3​

UGR: <19 (depending on ceiling height and grid layout)​

Driver Options: ON/OFF, DALI​

Emergency Module: Optional (1h emergency backup available)​

Protection Rating: IP40 (below ceiling), IP20 (above ceiling)​

Impact Resistance: IK04​

Class of Protection: Class I​

Housing Material: Steel (powder-coated)​

Diffuser Material: PMMA (opal)​

Mounting Options: Recessed lay-in installation into 600x600mm or 625x625mm modular ceilings​

Dimensions: 595mm x 595mm / 620mm x 620mm options​

Weight: ~3.2–3.5 kg


⚡ Quick takeaway:


The SC1009 is your dependable recessed modular solution — fast to install, visually clean, and built for high-performance commercial lighting projects.


When your ceilings need to look sharp and your lighting needs to work hard — with zero drama. 🎯


DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE llm/W LENGTH (L) WIDTH (W) HEIGHT (H)
30

3,680 llm

 595 595 60
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
