SC1032

SC1032

SUSPENDED

SC1032 is a luminaire distinguished by its excellent luminous parameters, enabling effective lighting in various environments. Its quick installation process ensures minimal disruption, making it ideal for both new setups and renovations. The design guarantees a uniform luminance across the surface of the diffuser, providing consistent and comfortable illumination. This versatility makes SC1032 suitable for a wide range of applications, from office spaces to public facilities, enhancing visibility and aesthetic appeal.

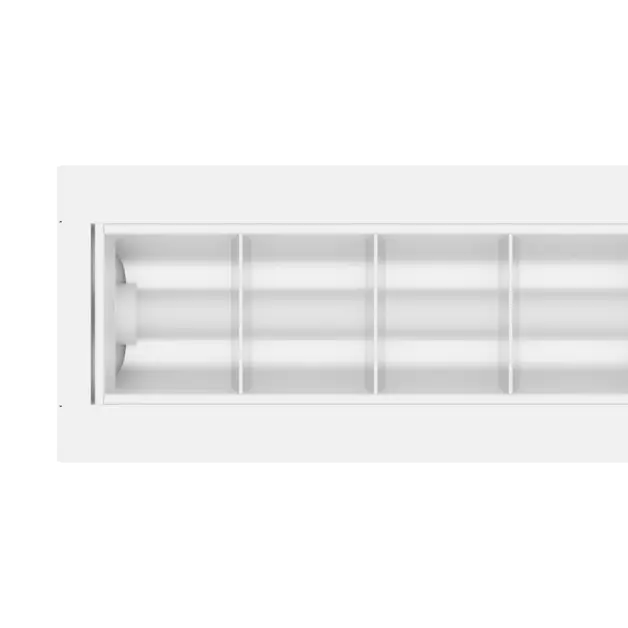

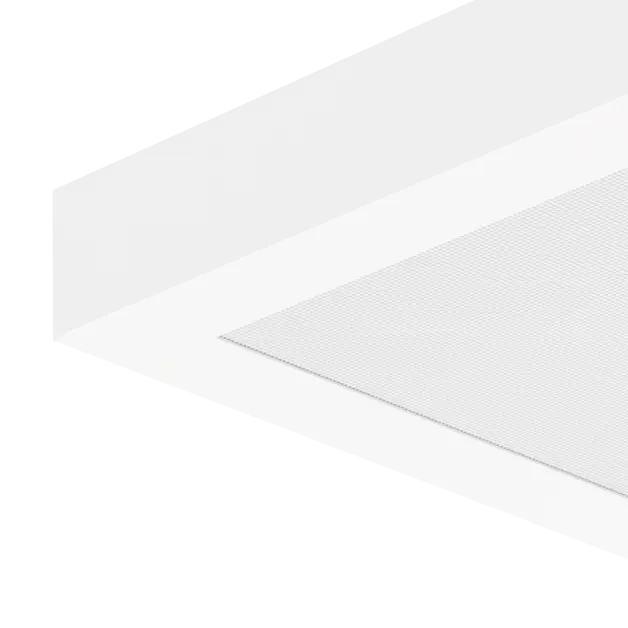

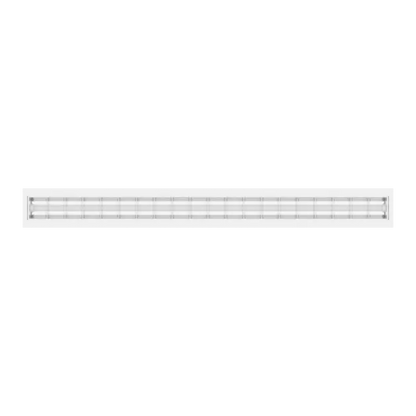

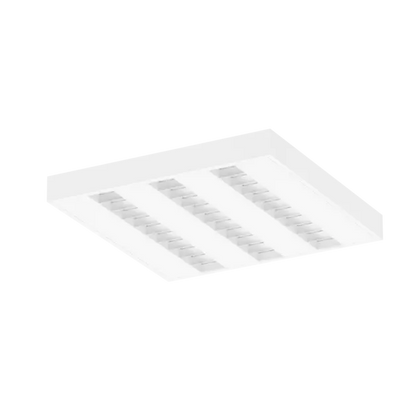

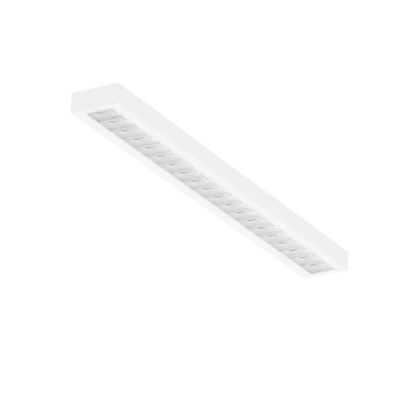

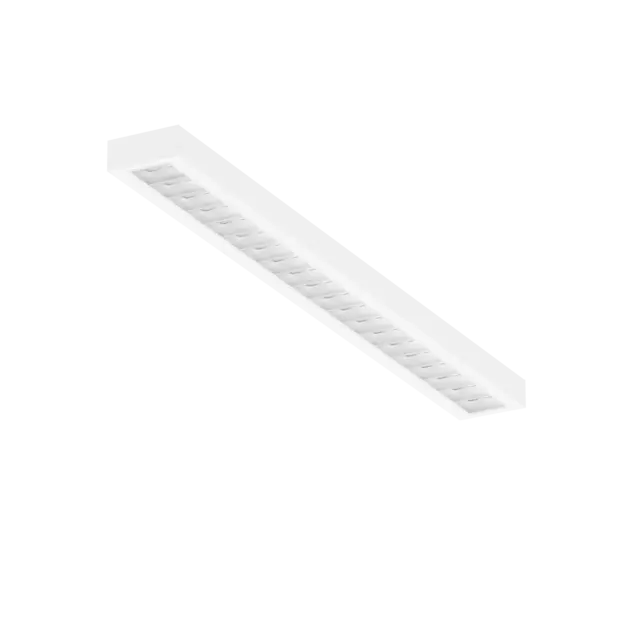

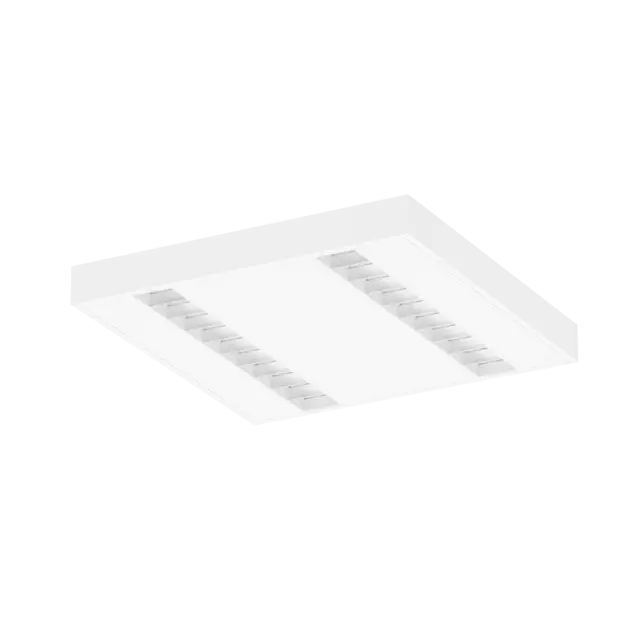

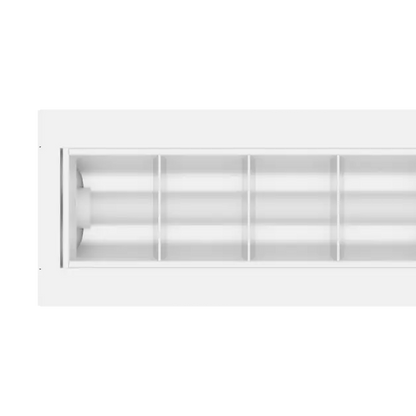

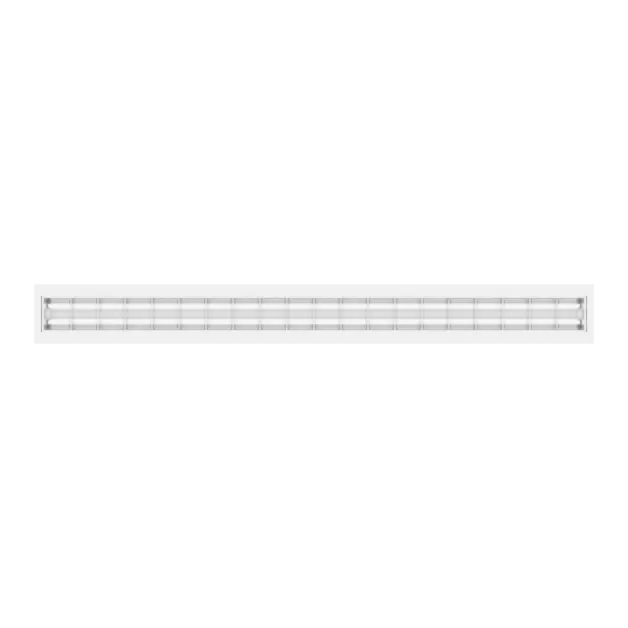

  • Materials: Powder painted steel sheet body (standard colour: white). OPAL, microprismatic (MPRM) diffusers, satin parabolic louver PAR-S
  • Installation:

SC1032 | Surface-Mounted Modular-Style LED Luminaire for Solid Ceiling Installations

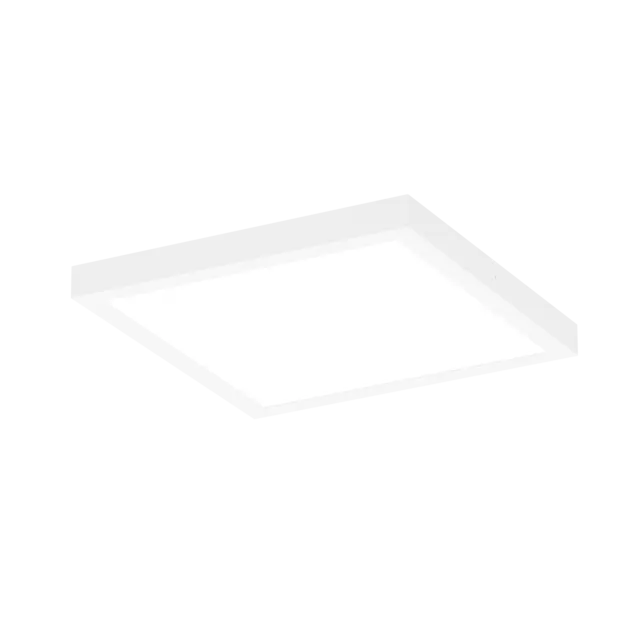

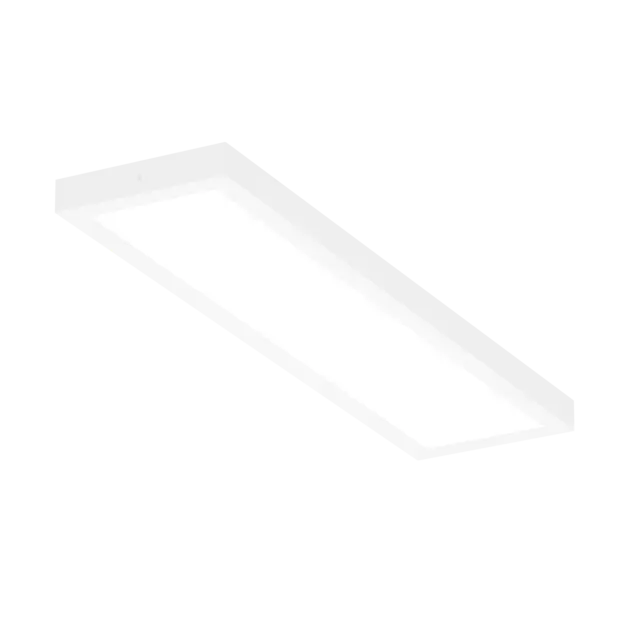

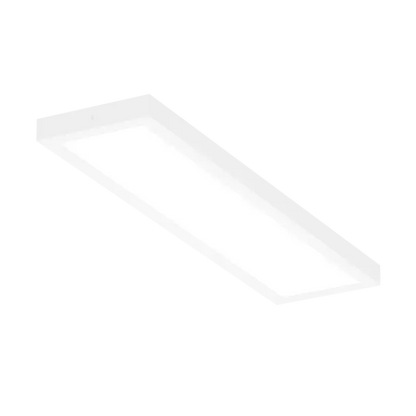

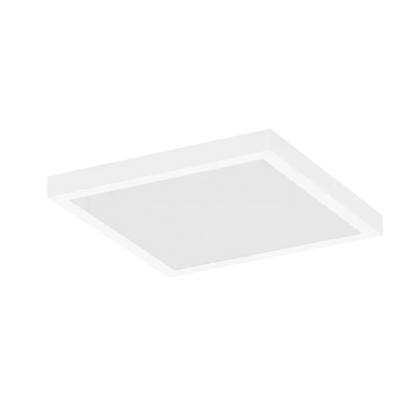

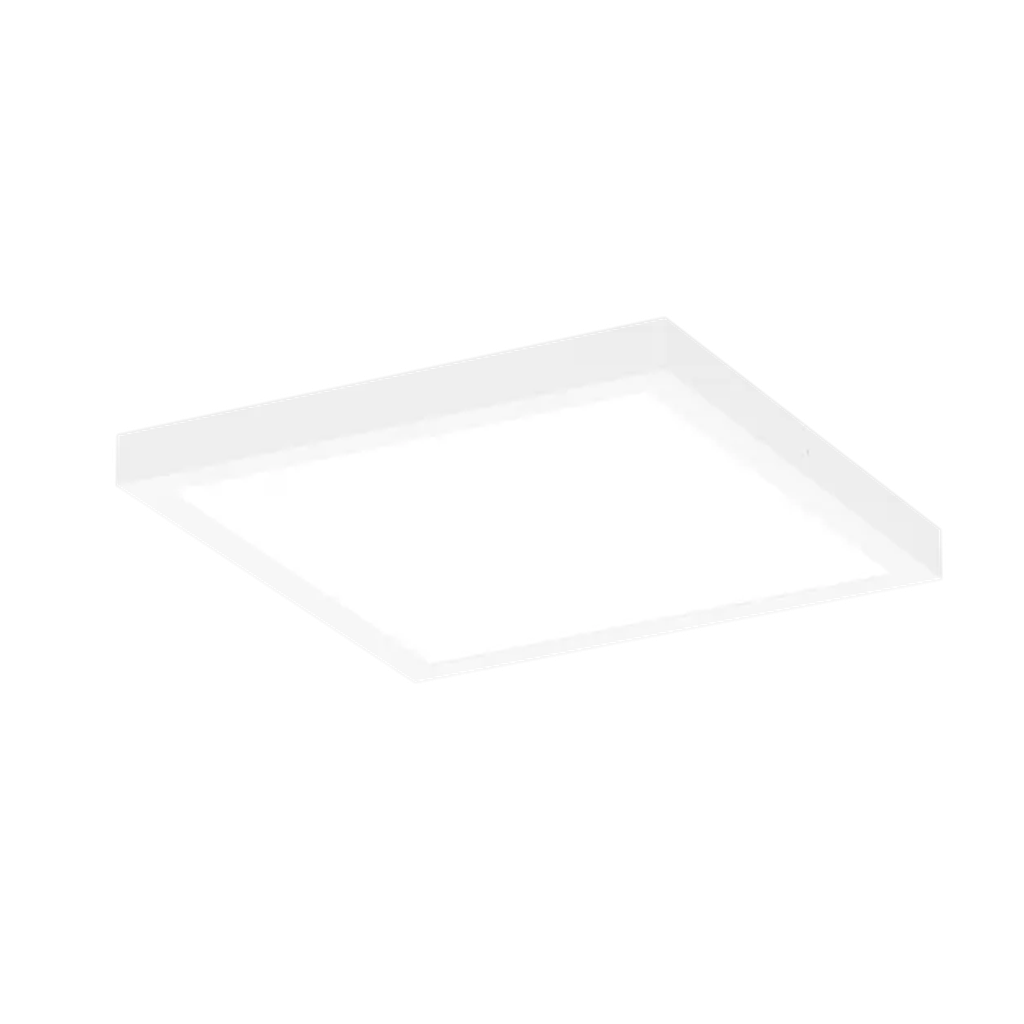

The SC1032 is a surface-mounted modular-style LED luminaire, designed to bring a clean, architectural lighting solution to solid ceilings.

Combining a slim illuminated profile with high luminous efficacy, it delivers energy-efficient, low-glare lighting without the need for recessed installation.

🔍 Key Features:

Surface-Mounted Design: Direct ceiling installation ideal for solid ceilings, exposed slabs, or refurbishments where recessed options are impractical.​

Slimline Architectural Profile: Narrow illuminated section provides a minimalist, high-end appearance for contemporary interiors.​

High Luminous Efficacy: Delivers up to 130 lm/W, combining strong brightness levels with excellent energy efficiency.​

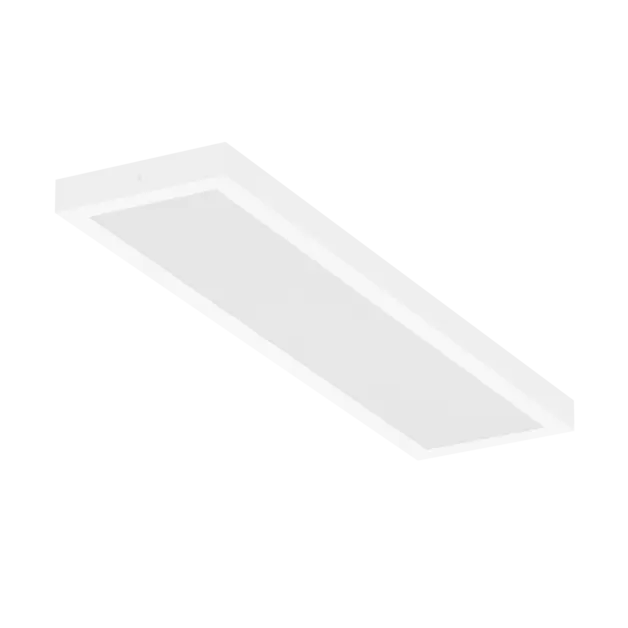

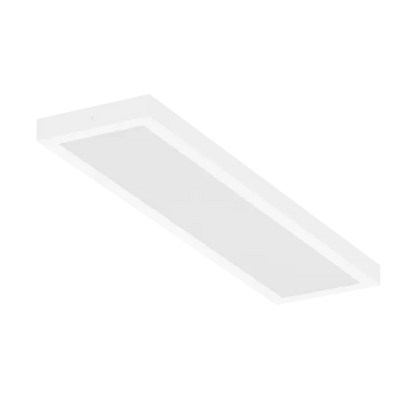

Durable Construction: Manufactured with a powder-coated steel housing and an opal PMMA diffuser to guarantee uniform, comfortable light output.​

Flexible Driver Options: Available with ON/OFF or DALI dimmable drivers; optional emergency pack for safety-critical applications.​

Certified Quality: CE-compliant for safe and reliable operation across all commercial project types.​



🏢 Ideal Applications:

Offices and co-working spaces

Educational institutions

Healthcare centres and clinics

Retail stores and showrooms

Public sector and municipal buildings​


📐 Technical Specifications:

Power Consumption: 34W​

Luminous Flux: 4,250 lm​

Luminous Efficacy: Up to 130 lm/W​

Colour Temperature: 3000K or 4000K​

CRI: >80​

MacAdam SDCM: 3​

UGR: <19 (depending on ceiling height and installation layout)​

Driver Options: ON/OFF, DALI​

Emergency Module: Optional (1h emergency backup available)​

Protection Rating: IP40​

Impact Resistance: IK04​

Class of Protection: Class I​

Housing Material: Steel (powder-coated)​

Diffuser Material: PMMA (opal)​

Mounting Options: Surface-mounted directly to solid ceilings​

Dimensions: 595mm x 595mm​

Weight: ~3.5 kg​

⚡ Quick takeaway:


The SC1032 is the slimline surface-mounted solution, ideal for turning solid ceilings into modern, illuminated environments without structural modifications.


Minimalist look. Maximum performance. Fast, clean installation. 🎯



DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE llm/W LENGTH (L) WIDTH (W) HEIGHT (H)
21

3,070 llm

 595 595 65
30

3,860 llm

 1195 295 65
32

4,340 llm

 595 595 65
45

5,790 llm

 1195 295 65
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
