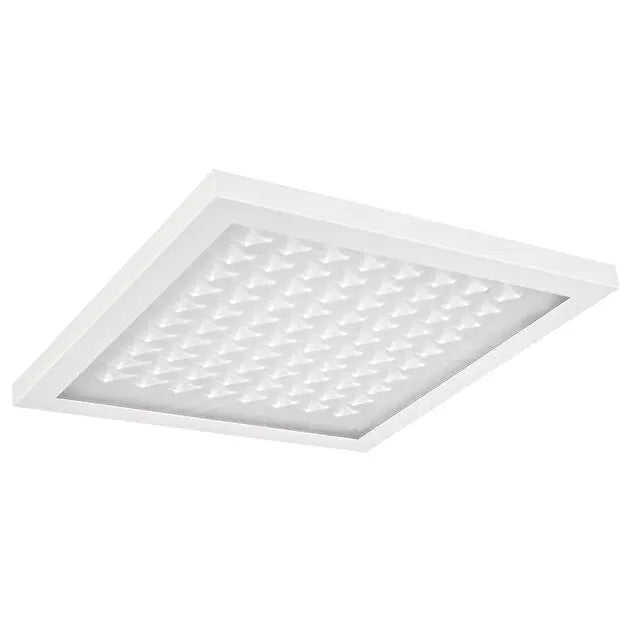

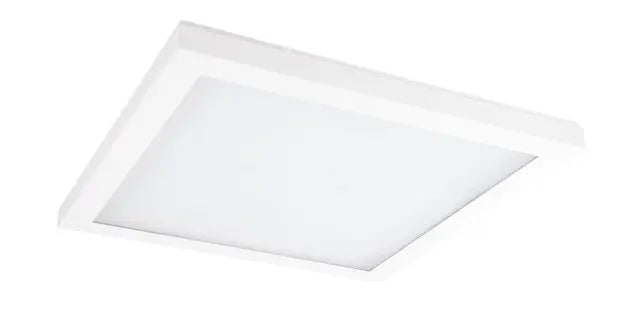

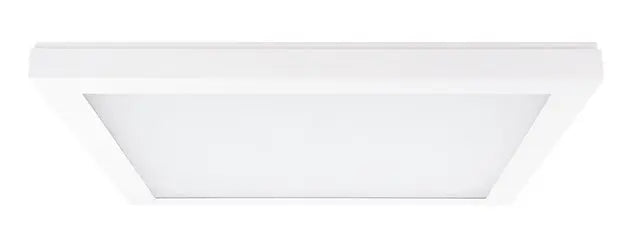

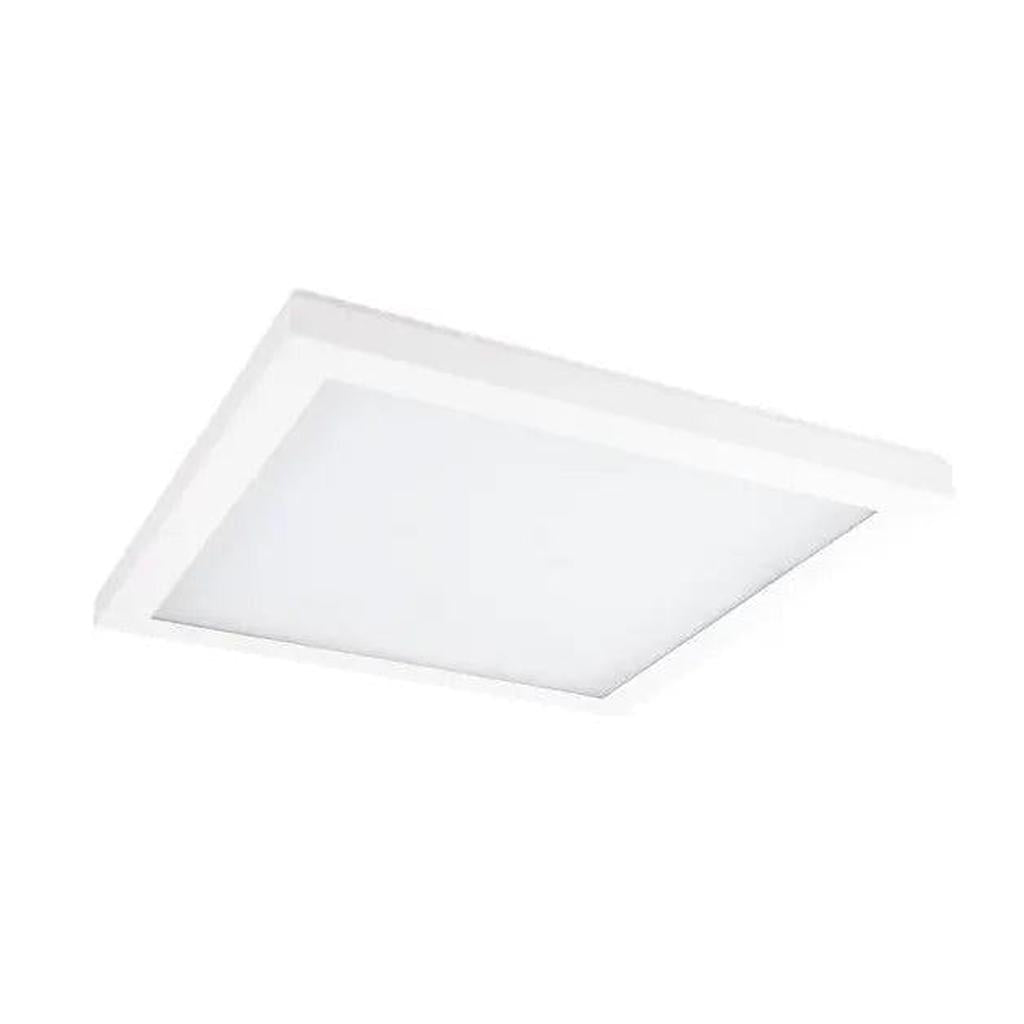

The SC1033 is a versatile luminaire meticulously designed for LED light sources, ensuring high performance and reliability. Its straightforward installation process, combined with high-quality LED chips from reputable manufacturers and a power factor of cos ϕ = 0.97, positions the UNI LED as an exceptional lighting solution. This luminaire is ideally suited for a variety of applications, particularly in office environments, conference rooms, and pedestrian walkways. Additionally, it is available in configurations that include a motion sensor and an emergency module, enhancing its functionality and safety in diverse settings.

  • Materials: Powder painted housing made of galvanized steel (standard color: white), microprismatic diffuser MPRM, prismatic diffuser PRM or OPAL, magnets mounted frame.
  • Installation:

SC1033 | Lay-In Recessed Modular LED Luminaire for Grid Ceiling Systems

The SC1033 is a recessed lay-in modular LED luminaire designed for fast, seamless integration into exposed T-bar grid ceilings.

Offering high luminous efficacy and effortless installation, it is ideal for modern office spaces, retail environments, and public sector projects requiring efficient, low-maintenance lighting solutions.

🔍 Key Features:

  • Lay-In Grid Compatibility: Designed for quick drop-in installation into 600x600mm modular ceiling grids, ensuring rapid, tool-free fitting.​
  • High Luminous Efficacy: Delivers up to 135 lm/W, providing excellent brightness with low energy consumption.​
  • Uniform Light Distribution: Opal PMMA diffuser ensures smooth, glare-controlled illumination across wide areas.​
  • Robust Construction: Powder-coated steel housing offers durability and long-term performance even in high-use environments.​
  • Driver Flexibility: Available with ON/OFF or DALI dimmable drivers; optional emergency module for safety-critical applications.​
  • Certified Quality: CE-compliant, ensuring safety, reliability, and full compliance with modern building standards.​

🏢 Ideal Applications:

  • Offices and open-plan workplaces
  • Retail stores and shopping centres
  • Educational facilities and libraries
  • Healthcare centres and hospitals
  • Government and public sector buildings​

📐 Technical Specifications:

  • Power Consumption: 30W​
  • Luminous Flux: 4,100 lm​
  • Luminous Efficacy: Up to 135 lm/W​
  • Colour Temperature: 3000K or 4000K​
  • CRI: >80​
  • MacAdam SDCM: 3​
  • UGR: <19 (depending on installation and room dimensions)​
  • Driver Options: ON/OFF, DALI​
  • Emergency Module: Optional (1h emergency backup available)​
  • Protection Rating: IP40 (below ceiling), IP20 (above ceiling)​
  • Impact Resistance: IK04​
  • Class of Protection: Class I​
  • Housing Material: Steel (powder-coated)​
  • Diffuser Material: PMMA (opal)​
  • Mounting Options: Lay-in installation into exposed T-bar grid ceilings (600x600mm)​
  • Dimensions: 595mm x 595mm​
  • Weight: ~3.2 kg​

⚡ Quick takeaway:

  • The SC1033 is your fast-fit grid ceiling lighting solution — when you need speed, simplicity, and efficiency, without compromising on aesthetics or quality.
  • Perfect for Cat A fit-outs, refurbishment projects, and rapid deployment office builds. 🎯

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE LUMENS LENGTH (L) WIDTH (W) HEIGHT (H)
38

4,870 llm

 595 595 45

CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
