SC1041

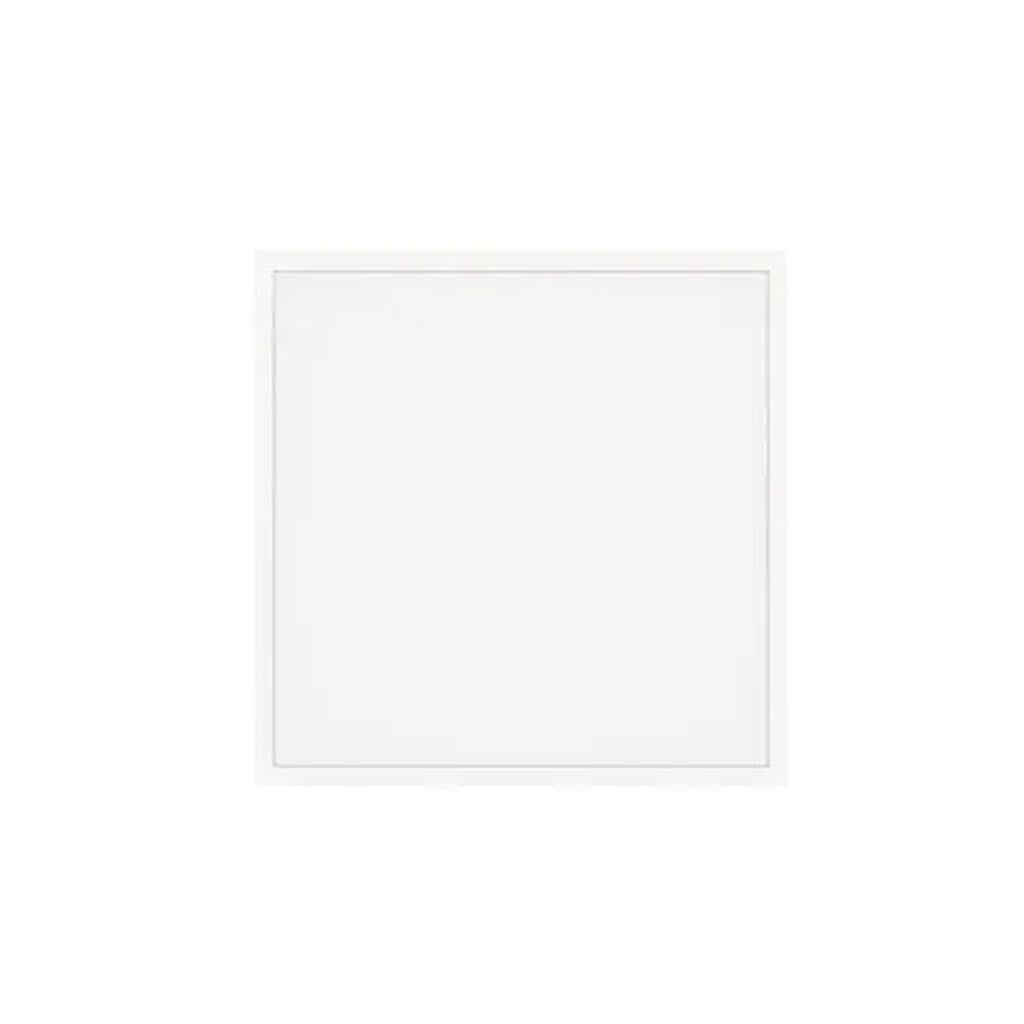

SC1041 | 600x600 Backlit Lay-In LED Panel with UGR<19

SC1041 is a high-performance 600x600 LED panel engineered for lay-in grid ceilings in commercial and educational environments. Featuring a TP(a) rated diffuser and UGR<19 rating, it delivers uniform, low-glare illumination with high efficacy, making it a standout energy-saving alternative to traditional 72W fluorescent troffers.

🧩 Key Features:

• Backlit Panel Design: Ensures even light distribution across the entire surface
• High Efficiency: Produces 3600 lumens from just 30W at 120 lm/W
• Low Glare (UGR<19): Suitable for offices, classrooms, and screen-based workspaces
• TP(a) Rated Diffuser: Flame-retardant, compliant with UK building safety regs
• Cool White Output: 4000K for neutral, task-focused lighting
• Lay-In Installation: Designed for standard 600x600 ceiling grid systems
• Integral 5-Year Warranty: Backed by long-term manufacturer confidence
• Emergency-Ready: Compatible with separate emergency conversion kit

🏢 Ideal Applications:

Offices, schools, meeting rooms, healthcare centres, retail spaces, and commercial interiors using suspended ceiling grids where low-glare and high output are essential.

📐 Technical Specifications:

• Mounting Type: Lay-in (600x600 modular ceiling grid)
• Light Output: 3600 lumens
• Power Consumption: 30W
• Luminous Efficacy: 120 lm/W
• Colour Temperature: 4000K (Cool White)
• UGR: <19
• Diffuser Rating: TP(a) fire-rated polycarbonate
• Driver Type: Non-dimmable
• Finish: Matt white
• Panel Dimensions: 595 mm x 595 mm
• Warranty: 5 years
• Emergency Capability: Requires optional conversion kit
• Certifications: CE, RoHS compliant

Why Specify SC1041?
Because lighting a modern workspace shouldn’t be a compromise, SC1041 delivers glare-free, energy-efficient output in a clean 600x600 form factor with safety and savings built in.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.
