SD1003

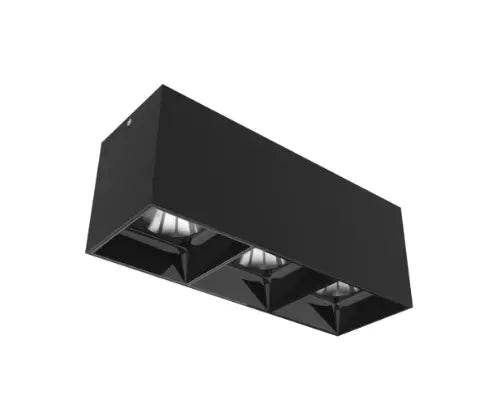

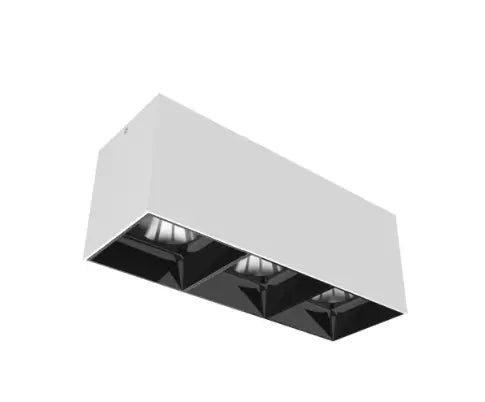

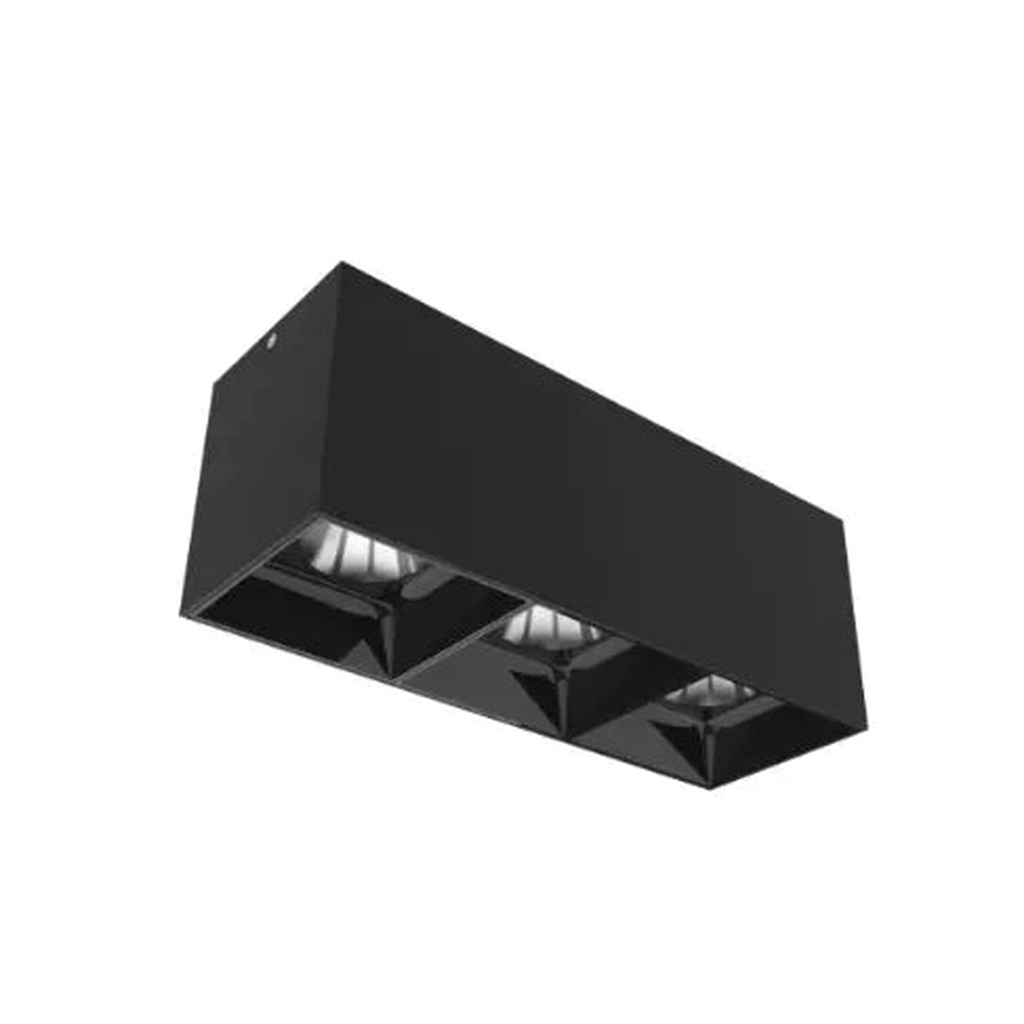

SD1003 | Rectangular Surface Downlight with Uniform Output and Clean Architectural Lines

SD1003 is a sharp-edged, surface-mounted rectangular downlight designed for commercial spaces needing structured, reliable illumination without ceiling recessing. With a deep anti-glare optic and multiple wattage options, it delivers flexibility, comfort, and modern form in equal measure.

🧩 Key Features:

• Rectangular Surface-Mount Body: Modern, clean-edged design complements architectural ceilings

• Multiple Wattages Available: 10W, 15W, 20W, and 25W options allow specifiers to match output to application needs

• Low-Glare Optical Chamber: Deep-recessed light source reduces visual discomfort and enhances comfort

• Beam Angle Options: Choose from 15°, 24°, or 38° to focus or widen illumination

• Colour Temperature Flexibility: 2700K, 3000K, 3500K, or 4000K for tailored ambiance

• Robust Aluminium Housing: Engineered for longevity in commercial use cases

🏢 Ideal Applications:
Retail aisles, corporate corridors, hotel lobbies, circulation zones, and any commercial interior where linear surface-mounted lighting is required but recessing isn't possible.

📐 Technical Summary:

• Power Options: 3x 10W, 3x15W, 3x20W

• Driver Options: Fixed Output, DALI2, CASAMBI

• Input Voltage: AC220-240V

• CRI: ≥90

• CCT Options: 2700K / 3000K / 3500K / 4000K

• Beam Angles: 15°, 24°, 38°

• Luminous Efficacy: Up to 95 lm/W

• Power Factor: ≥0.9

• Material: Aluminium

• Mounting: Surface

• Warranty: 5 years

✅ Why Specify SD1003?
Because not every project calls for round or recessed, sometimes bold lines and surface-mount practicality win the day. With multi-wattage versatility, crisp output, and glare-reduction built in, SD1003 brings understated strength to modern ceilings.
