SD1008

SD1008 | Full-Range Surface-Mount Downlight with Architectural Form and High Output Performance

SD1008 is a bold, performance-driven surface-mounted downlight range crafted for high-output applications where recessed installation isn't feasible. Offered in five diameters and spanning an extensive 10W-60W power range, this fitting delivers professional-grade illumination with photometric precision, uniformity, and visual comfort.

🧩 Key Features:

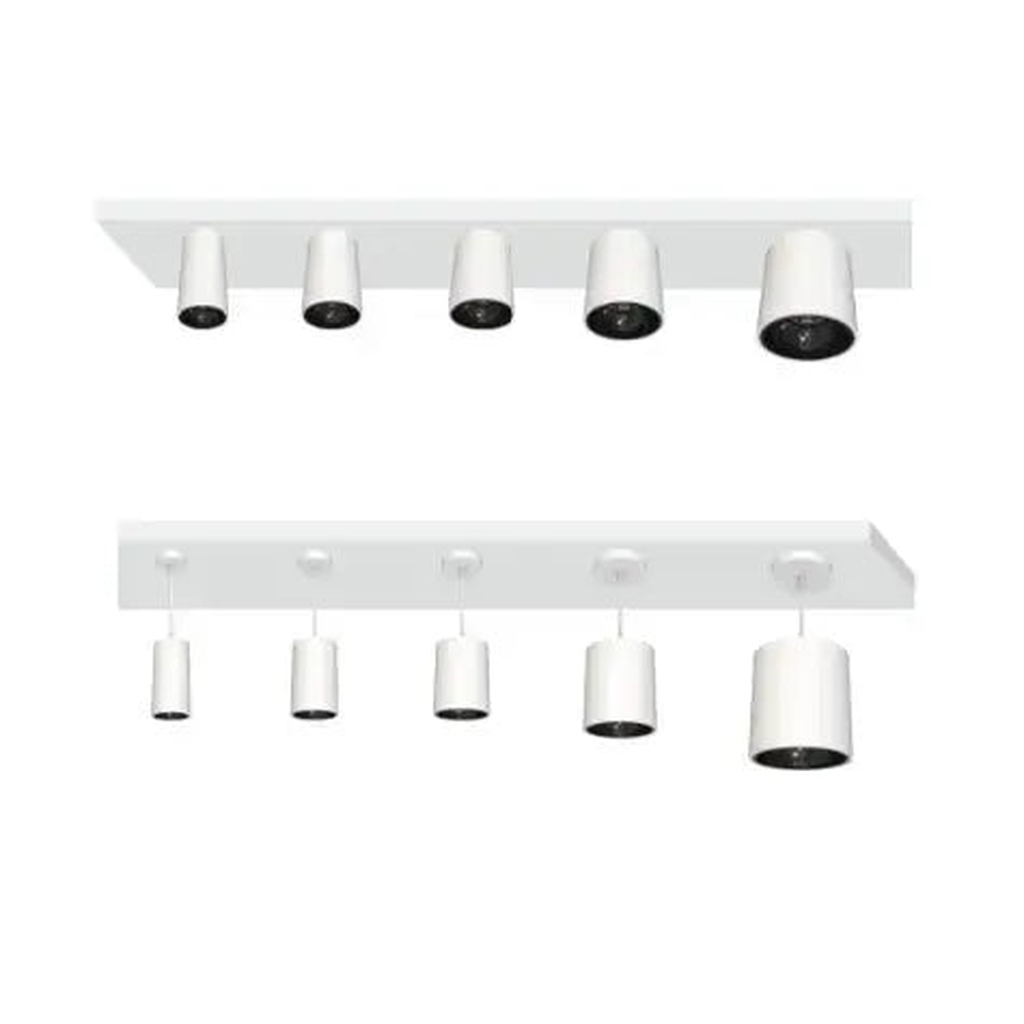

• Scalable Housing Sizes: Available in Ø75mm, Ø95mm, Ø115mm, Ø140mm, and Ø170mm to match your space and light level requirements

• Power Range: 10W, 15W, 20W, 25W, 30W, 40W, 50W, and 60W models for total output flexibility

• Beam Angle Options: Choose from 20°, 40°, or 60° for tight accenting or wide general wash

• IP Rating Flexibility: IP54 for interior applications or IP65 for splash-prone and humid environments

• Deep Recessed Optic: Ensures superior glare control and clean beam shaping

• Architectural Aluminium Body: Precision die-cast with a solid, clean aesthetic

• Integrated Control Gear: Designed for ceilings where recessed luminaires can't be used

• Mounting Options: Surface-mounted as standard; pendant-mount variant available

🏢 Ideal Applications:
Corporate lobbies, luxury retail, hospitality spaces, galleries, atriums, and high-finish commercial interiors where you need power, precision, and presence, without cutting into the ceiling.

📐 Technical Summary:

• Power Options:

  • SD1013: 10W / 15W - ø75

  • SD1014: 15W / 20W - ø95

  • SD1006: 25W / 30W - ø115

  • SD1007: 40W / 50W - ø140

  • SD1008: 50W / 60W - ø170

• Diameter Options: Ø75mm / Ø95mm / Ø115mm / Ø140mm / Ø170mm

• Beam Angles: 20°, 40°, 60°

• CRI: ≥90

• IP Ratings: IP54or IP65

• Input Voltage: AC220-240V

• Material: High-grade die-cast aluminium

• Mounting: Surface (Pendant version also available)

• Warranty: 5 years

✅ Why Specify SD1007?
Because not every project can recess, but that doesn't mean you should compromise. SD1007 offers the full architectural toolkit: scalable form, serious output, beam control, IP options, and top-tier glare performance. It's a luminaire that performs like a downlight but presents like a design feature.
