SD1015

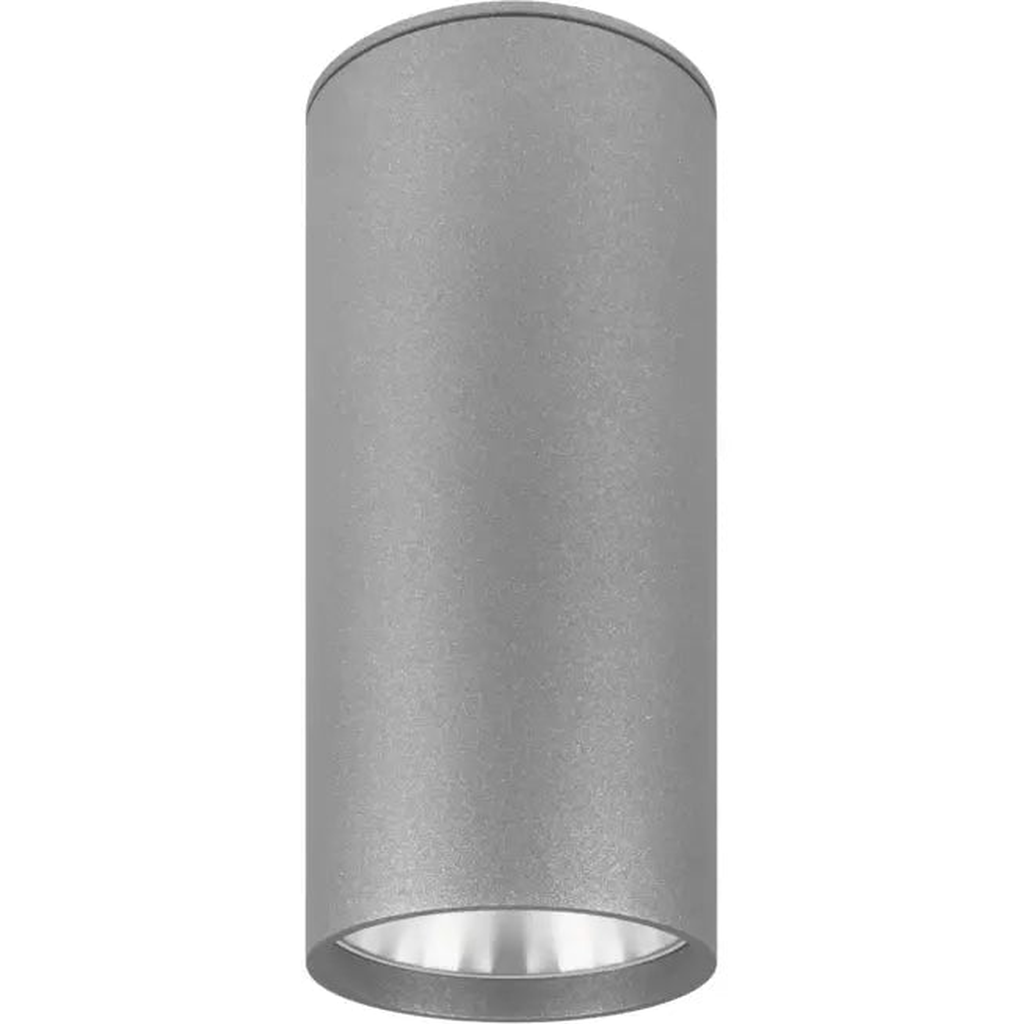

SD1015 | Cylindrical Surface-Mounted LED Downlight for Direct Ceiling Illumination

The SD1015 is a tubular surface-mounted LED downlight designed for direct lighting in modern interior spaces. With its sleek cylindrical body, precision beam angles, and efficient LED output, it brings focused light and architectural clarity to commercial and residential environments alike.

🔦 Key Features:

• Tubular Design: Minimal cylindrical housing for a clean, surface-mounted aesthetic
• Precision Beam Control: Choose from 15°, 25°, or 36° beam angles depending on project needs
• High Efficiency: Up to 120 lm/W for impactful lighting with reduced energy consumption
• Flexible Mounting: Ceiling-mounted for straightforward installation in dry interior spaces
• Smart Control Options: Supports both ON/OFF and DALI driver configurations
• Customisable Finish: Supplied in white or black; RAL colour matching available on request

🏢 Ideal Applications:

Retail spaces, galleries, hotel lobbies, restaurants, reception areas, and design-led residential interiors requiring compact, powerful surface downlighting

📐 Technical Specifications:

• Power Consumption: 10 W, 13 W, 18 W, 26 W
• Luminous Flux: 1,180 lm, 1,530 lm, 2,020 lm, 2,960 lm
• Luminous Efficacy: Up to 120 lm/W
• Beam Angles: 15°, 25°, 36°
• Colour Temperature: 3000 K or 4000 K
• CRI: >80
• UGR: <19
• Driver Options: ON/OFF, DALI
• Mounting Type: Surface-mounted (ceiling)
• Protection Rating: IP20
• Impact Resistance: IK03
• Class of Protection: Class I
• Housing Material: Powder-coated aluminium
• Finish Options: White (RAL 9003), Black (RAL 9005), custom colours available on request

Why Specify SD1015 ?

Because sometimes, subtle is the statement. The SD1015 delivers precision beam control and a clean architectural look, all from a compact, surface-mounted tube.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.
