SD1017

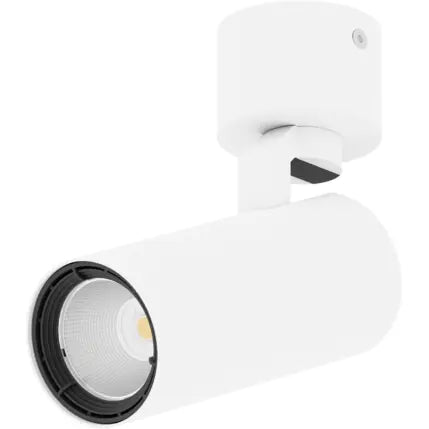

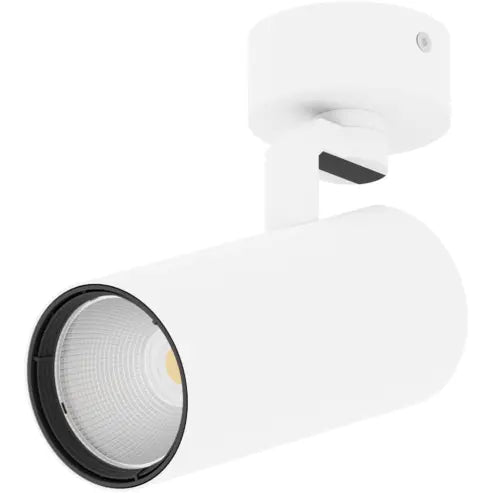

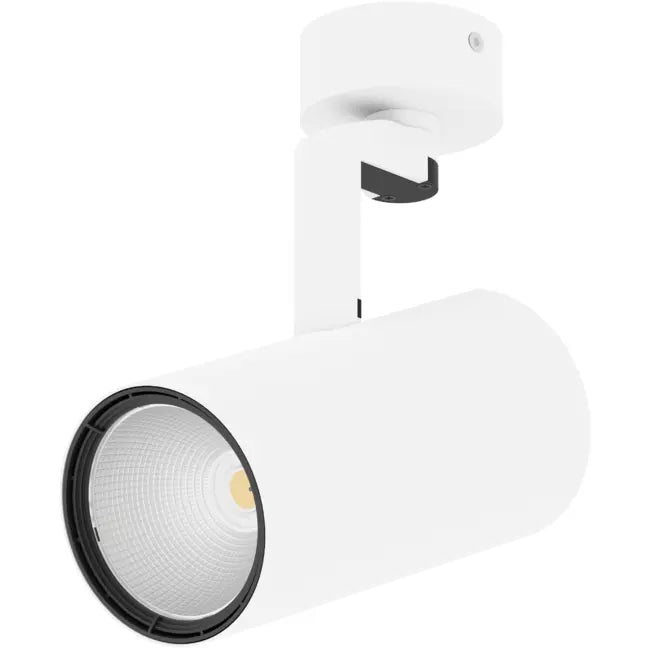

SD1017 | Surface-Mounted Adjustable LED Spotlight with COB Precision

SD1017 is a surface-mounted LED spotlight with full adjustability and high-performance optics, ideal for retail and commercial interiors where precision illumination is a must. Featuring a 350° horizontal rotation and 90° vertical tilt, it delivers targeted light from a compact, architectural form — backed by high-efficiency COB LED output and multiple beam options.

🎯 Key Features:

• Adjustable Aim: 350° rotation and 90° tilt — perfect for accenting displays, walls, or merchandise
• Wide Beam Flexibility: Choose from 8 beam angles: 15°, 18°, 19°, 26°, 36°, 40°, 50°, 55°
• High-Efficiency Output: Up to 4,450 lm and 138 lm/W from advanced COB LEDs
• Driver Options: ON/OFF and DALI available
• Customisable Appearance: White and black finishes standard; grey, anthracite, or custom RAL available
• Optional Modules: Emergency and motion sensor variants available for smart integration

🏢 Ideal Applications:

Retail stores, galleries, commercial receptions, showrooms, feature zones, and offices — anywhere directional lighting enhances visual impact

📐 Technical Specifications:

• Mounting Type: Surface-mounted (ceiling)
• Adjustment Range: 350° rotation / 90° tilt
• Power Consumption: 9 W – 34 W
• Luminous Flux: 775 – 4,450 lm
• Luminous Efficacy: 86 – 138 lm/W
• Beam Angles: 15°, 18°, 19°, 26°, 36°, 40°, 50°, 55°
• Colour Temperature: 3000 K or 4000 K
• CRI: >80 or >90 (830, 840, 930, 940)
• UGR: 21–25
• Driver Options: ON/OFF, DALI
• Housing Material: Powder-coated aluminium
• Reflector: High-gloss polycarbonate
• Diffuser: Transparent (RF)
• Protection Rating: IP20
• Impact Resistance: IK03
• Class of Protection: Class I
• Operating Temp: 0°C to +35°C
• Weight: 0.6 – 1.2 kg

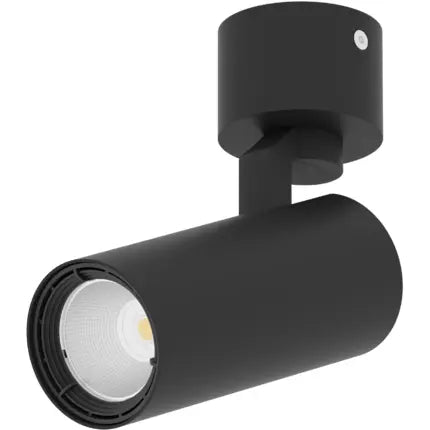

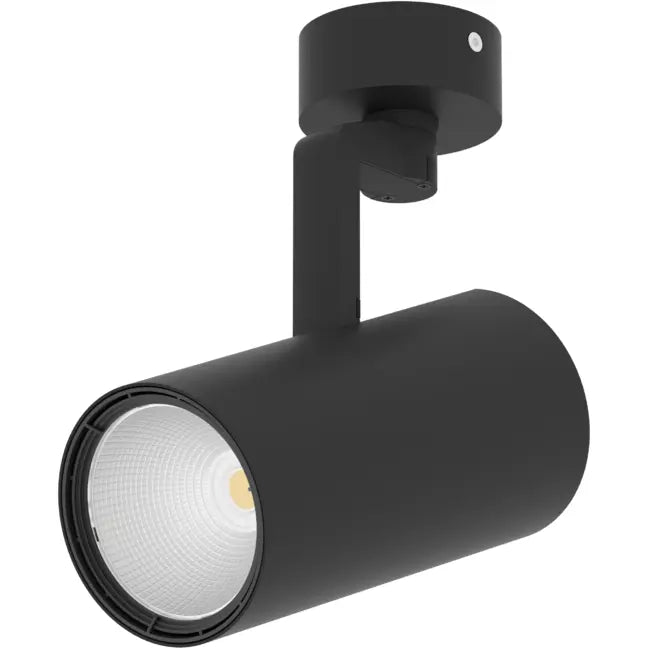

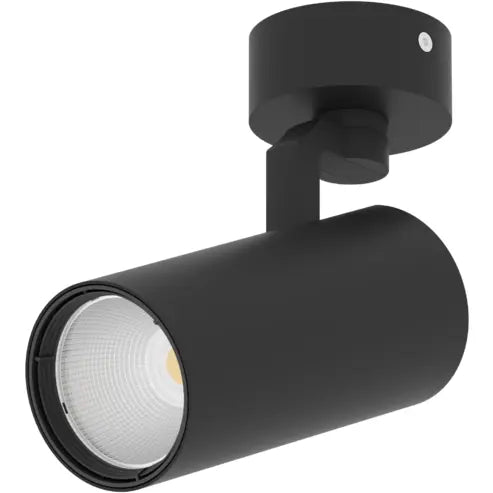

• Finish Options: White (RAL 9003), Black (RAL 9005), Anthracite, Grey, Custom RAL
• Certifications: CE, HACCP+, EAC

Why Specify SD1017?

Because good lighting points attention where it matters. SD1017 brings full beam control, rotational flexibility, and high-output LED tech to ceiling-mounted spotlights — all in a minimal, high-spec shell.
