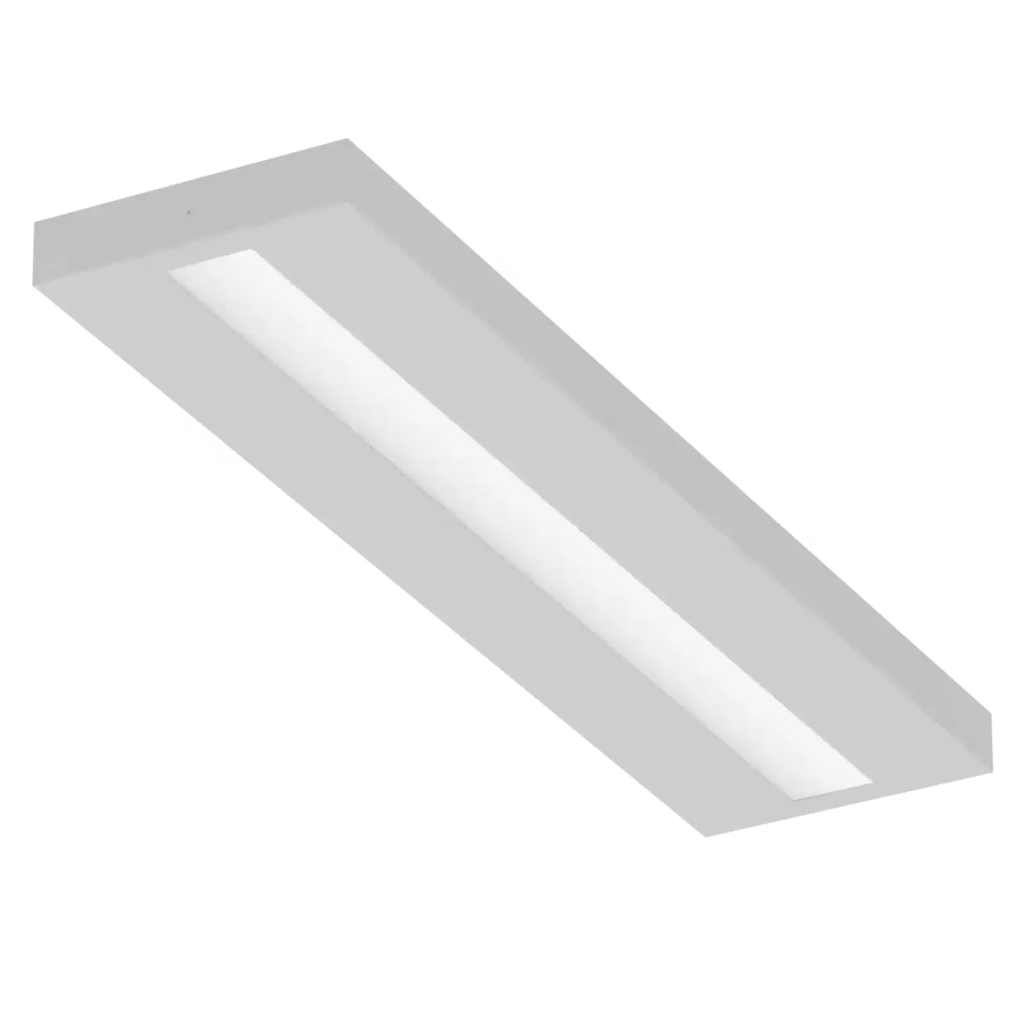

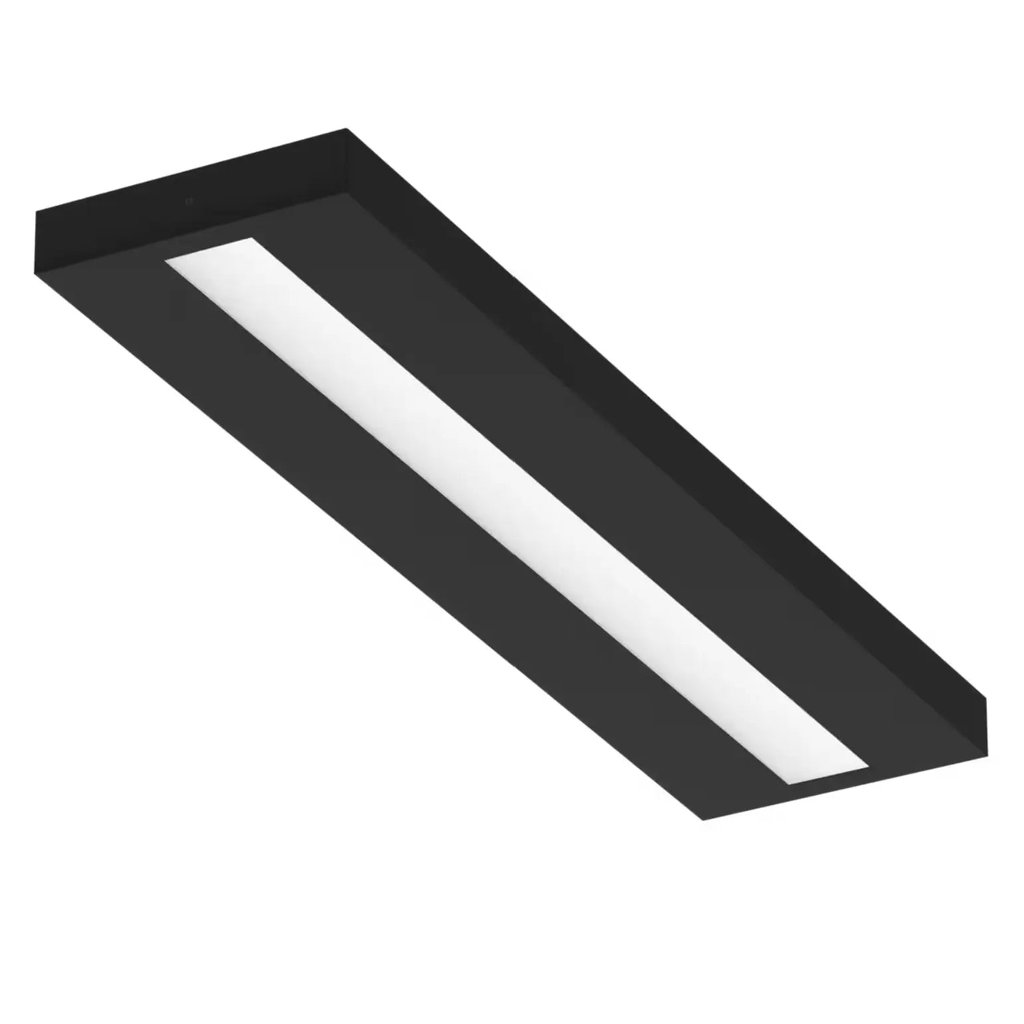

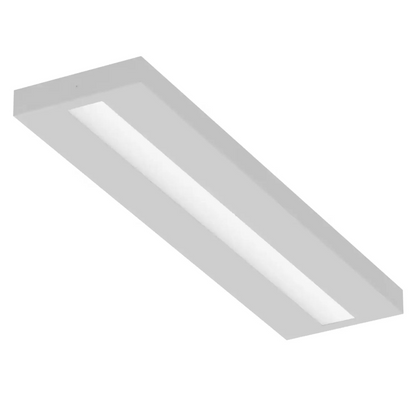

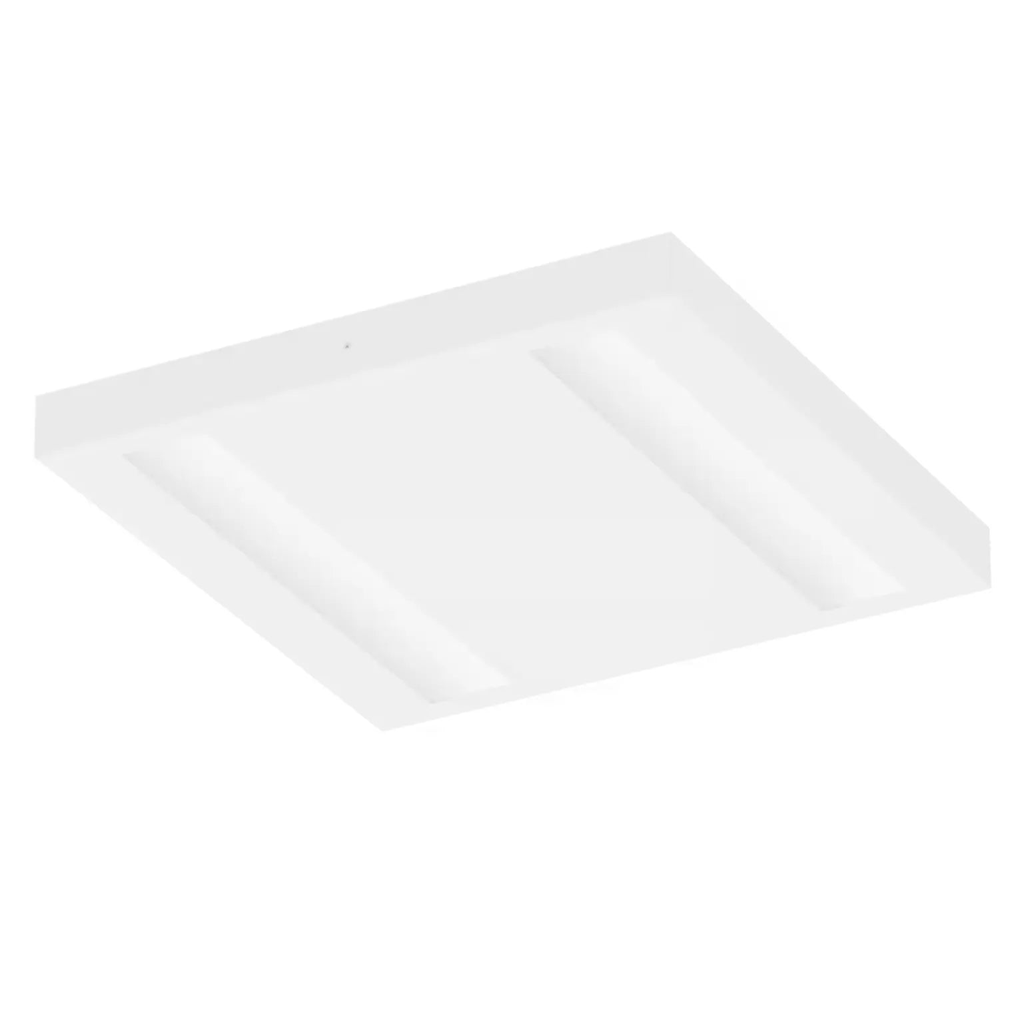

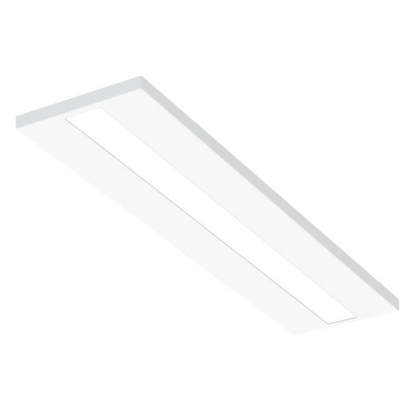

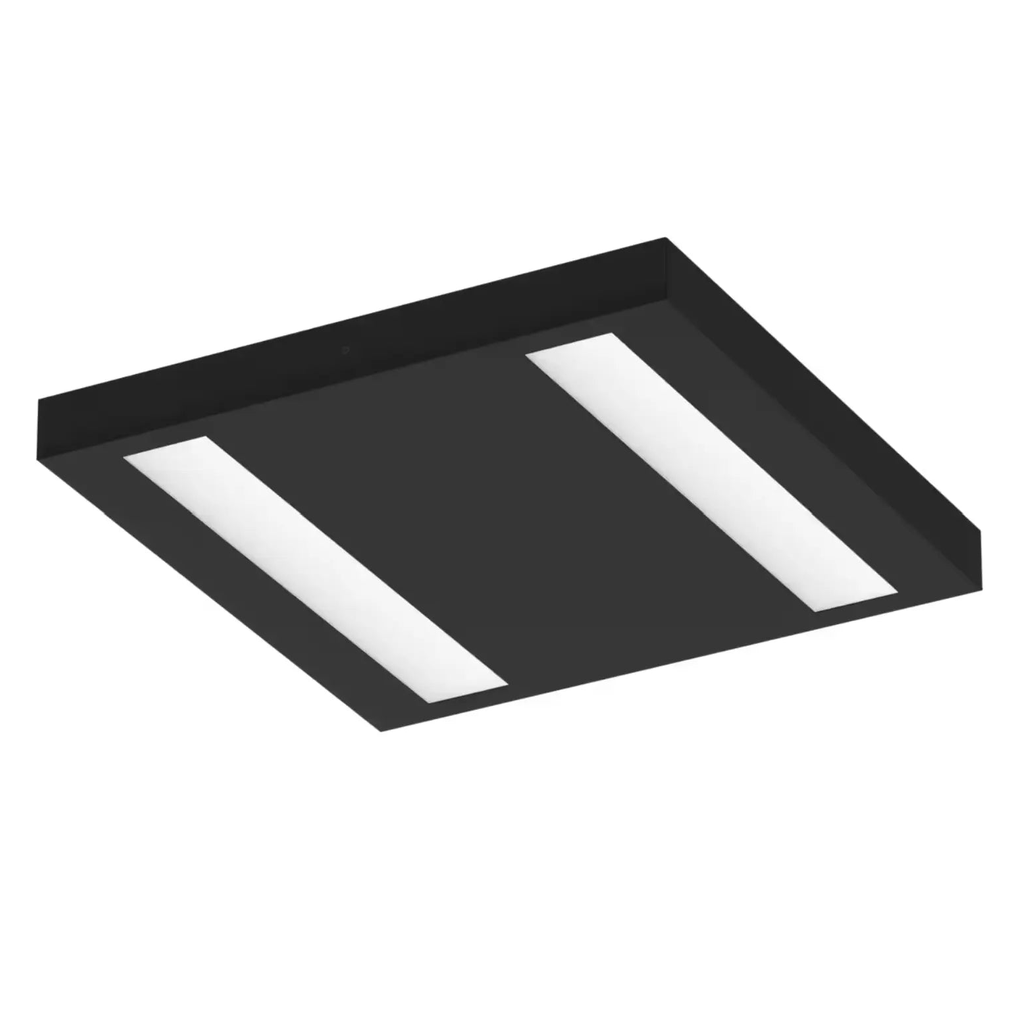

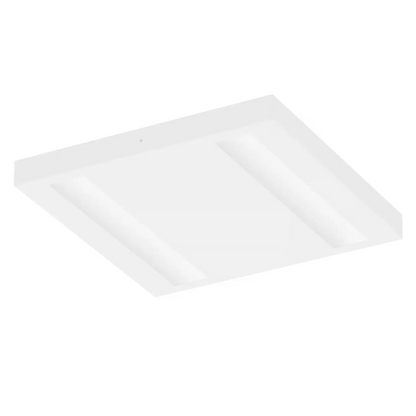

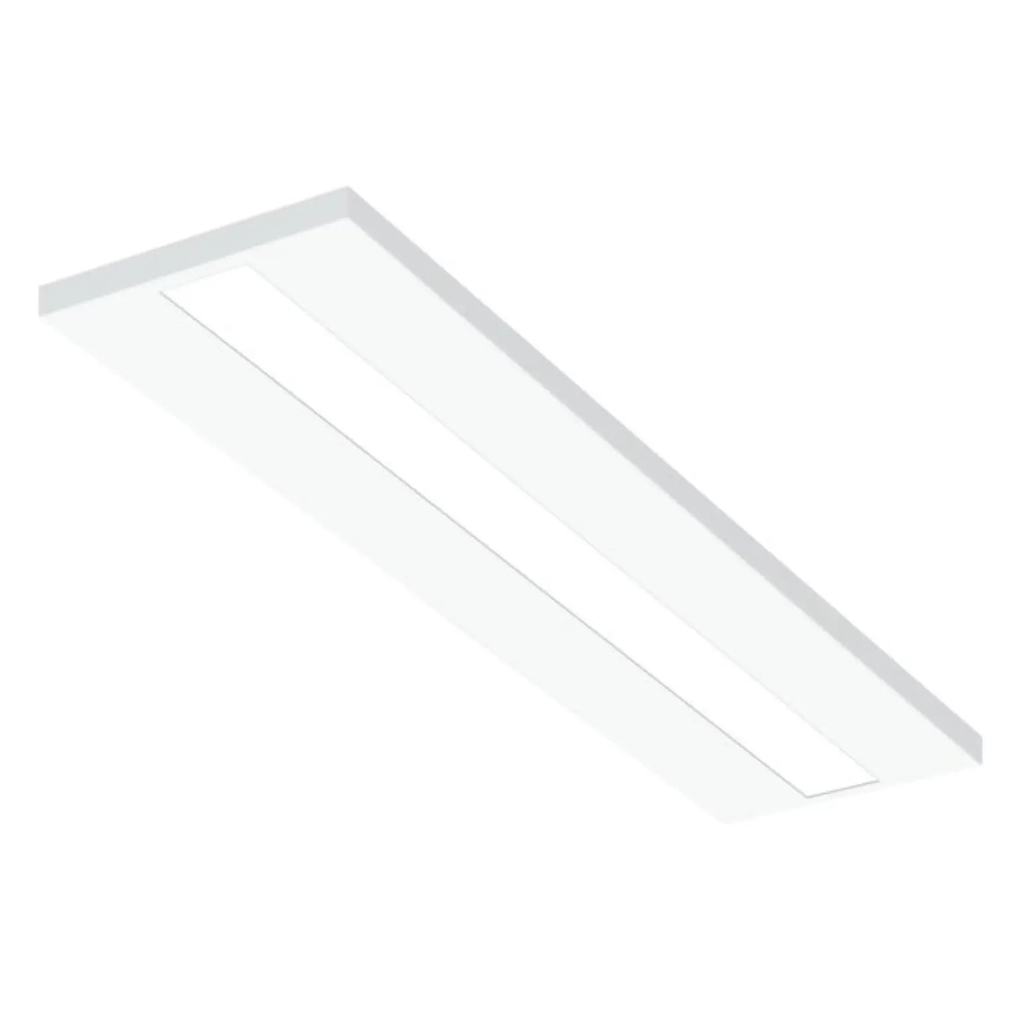

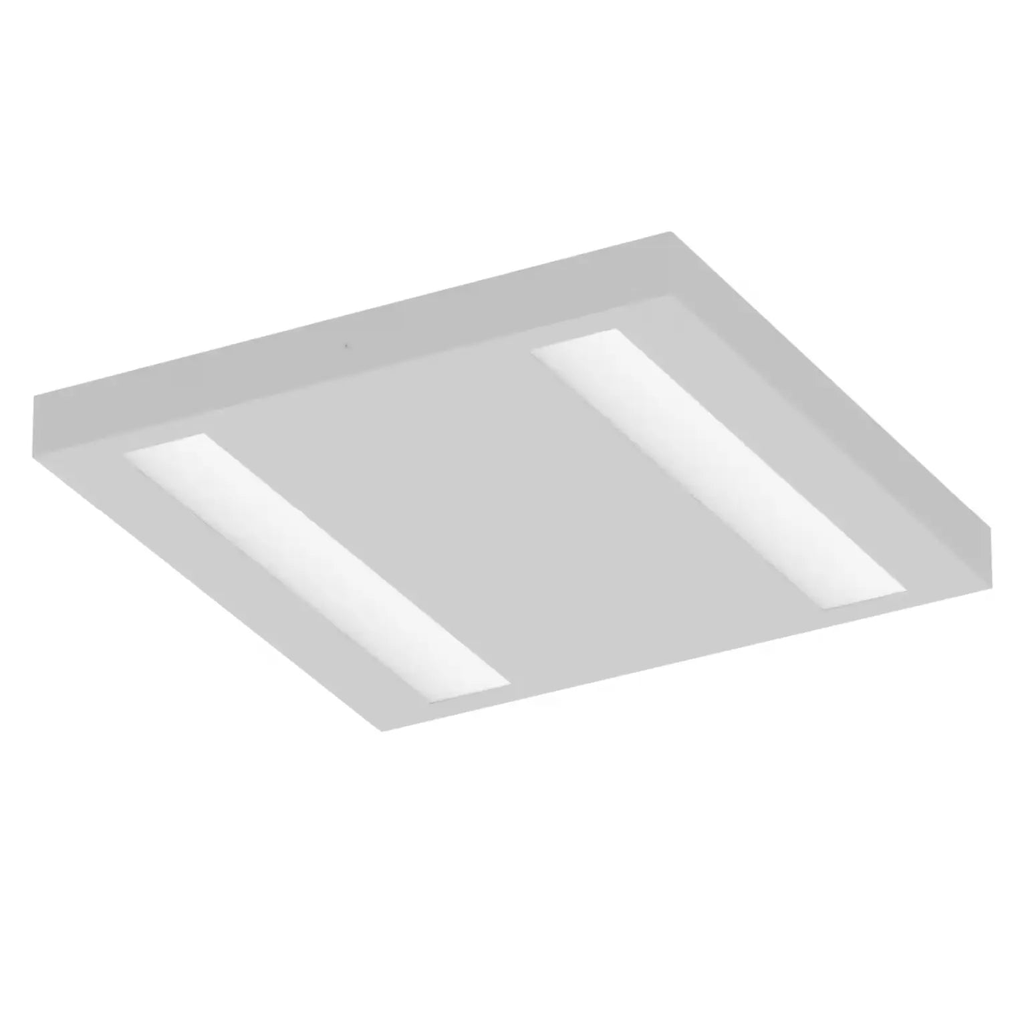

SM1011 | Surface-Mounted Modular-Style LED Luminaire for Solid Ceiling Installations

The SM1011 is a surface-mounted modular-style LED luminaire, engineered for direct installation onto solid ceilings.

Offering high luminous efficacy and low-glare illumination, it is ideal for modern commercial, educational, and public environments requiring efficient and visually comfortable lighting solutions.

🔍 Key Features:

• Surface-Mounted Design: Installs directly onto solid ceilings or slabs, ideal for retrofit projects, exposed ceilings, or spaces without suspended grid systems.
• High Luminous Efficacy: Delivers up to 125 lm/W, ensuring excellent brightness while minimizing energy consumption.
• Low Glare Comfort: Specially designed diffuser achieves low UGR levels, enhancing visual comfort in office and educational settings.
• Durable Construction: Powder-coated steel housing and opal PMMA diffuser provide robust, consistent performance and long service life.
• Flexible Control Options: Available with ON/OFF or DALI dimmable drivers; optional emergency version available for safety-critical installations.
• Certified Quality: CE-compliant, offering dependable operation across a wide range of project types.

🏢 Ideal Applications:

• Offices and open workspaces
• Educational institutions and libraries
• Healthcare facilities
• Retail environments and boutiques
• Hotels and hospitality interiors
• Public sector and municipal buildings

📐 Technical Specifications:

• Power Consumption: 34W
• Luminous Flux: 4,250lm
• Luminous Efficacy: Up to 125lm/W
• Colour Temperature: 3000K or 4000K
• CRI: >80
• MacAdam SDCM: 3
• UGR: <19 (depending on ceiling height and layout)
• Driver Options: ON/OFF, DALI, CASAMBI
• Emergency Module: Optional (1h emergency backup available)
• Protection Rating: IP40
• Impact Resistance: IK04
• Class of Protection: Class I
• Housing Material: Steel (powder-coated)
• Diffuser Material: PMMA (opal)
• Mounting Options: Surface-mounted directly onto solid ceilings
• Dimensions: 595mm x 595mm
• Weight: ~3.5 kg

⚡ Quick takeaway:

• The SM1011 is your low-glare, surface-mounted modular luminaire — delivering clean, efficient lighting without the complexity of suspended ceilings.
• Perfect for projects that need comfort, efficiency, and fast installation — all wrapped in a sharp, modern package. 🎯

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.
