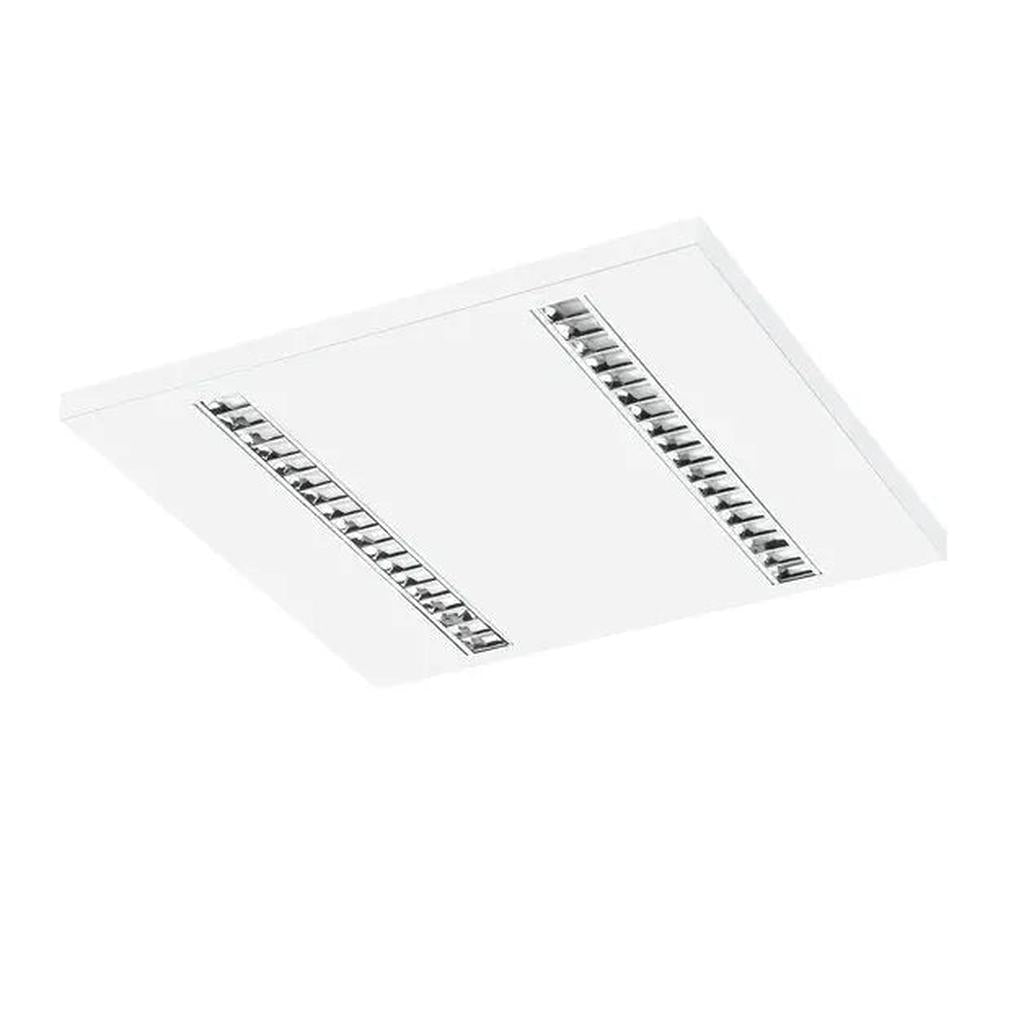

• SC1012.
1 1

SM1012

SM1012

SUSPENDED

This modern louver luminaire is specifically designed for LED light sources, delivering exceptional technical and optical performance. Featuring aluminum parabolic louvers, it achieves a remarkably low glare rate, enhancing visual comfort while reducing eye strain. Its low power consumption compared to traditional light sources makes it an energy-efficient choice, perfect for various applications. The innovative optical system is tailored for illuminating office spaces, particularly beneficial for tasks involving computer work. Additionally, this luminaire offers the option of integrating the "Active+" self-learning energy-saving system. This convenient out-of-the-box solution includes an LED driver and a compact sensor built directly into the luminaire. Luminaires equipped with the Active+ solution are particularly well-suited for refurbishment projects, as well as new offices, corridors, and open-plan areas, providing an adaptable and efficient lighting solution.

  • Materials: White housing made of electrostatically painted steel, parabolic louver made of anodized, polished aluminum of high purity, LED module with additional microprismatic diffuser. Standard version for suspended ceilings has accessories, which make montage of suspensions possible.
  • Installation:

SM1012 | Surface-Mounted Parabolic LED Luminaire for Commercial Ceilings

The SM1012 is a surface-mounted LED luminaire featuring parabolic optics for superior glare control and visual comfort.

Designed for direct installation onto solid ceilings, it combines high luminous efficacy with refined optical performance, making it ideal for professional and public space applications.

🔍 Key Features:

  • Surface-Mounted Design: Direct installation onto solid ceilings — ideal for refurbishments, exposed slabs, or any project where recessed ceilings are not feasible.​
  • Parabolic Reflector Optics: Specialized reflective design ensures precise light control, reducing glare and improving comfort in working environments.​
  • High Luminous Efficacy: Delivers up to 120 lm/W, ensuring energy-efficient, high-performance illumination.​
  • Durable Construction: Robust powder-coated steel housing with parabolic optics for reliable, consistent lighting performance over time.​
  • Flexible Control Options: Available with ON/OFF or DALI dimmable drivers; optional emergency module for enhanced resilience and safety.​
  • Certified Quality: SM1012 CE and ENEC 28 certified, ensuring full compliance with European safety and performance standards.

🏢 Ideal Applications:

  • Office spaces and boardrooms
  • Educational facilities and libraries
  • Healthcare and clinical environments
  • Public sector buildings
  • Retail interiors and commercial fit-outs​

📐 Technical Specifications:

  • Power Consumption: 34W​
  • Luminous Flux: 4,100 lm​
  • Luminous Efficacy: Up to 120 lm/W​
  • Colour Temperature: 3000K or 4000K​
  • CRI: >80​
  • MacAdam SDCM: 3​
  • UGR: <19 (depending on installation height and optic specification)​
  • Driver Options: ON/OFF, DALI​
  • Emergency Module: Optional (1h emergency backup available)​
  • Protection Rating: IP40​
  • Impact Resistance: IK04​
  • Class of Protection: Class I​
  • Housing Material: Steel (powder-coated)​
  • Optics Type: Parabolic reflectors for precise beam control and reduced glare​
  • Mounting Options: Surface-mounted directly onto solid ceilings​
  • Dimensions: 595mm x 595mm​
  • Weight: ~3.5 kg​

⚡ Quick takeaway:

  • The SM1012 is your surface-mount parabolic solution, delivering glare-controlled, comfortable lighting where traditional recessed grid ceilings aren't possible.
  • Perfect for offices, schools, or healthcare projects needing high visual comfort with architectural flexibility — and backed by ENEC 28 certification for total confidence. 🎯

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE LUMEN LENGTH (L) WIDTH (W) HEIGHT (H)
19

3,002 llm

 595 595 45
2-Cell
24

3,792 llm

 595 595 45
2-Cell
27

4,266 llm

 595 595 45
2-Cell

30

4,440 llm

 595 595 45
3-Cell
36

5,688 llm

 595 595 45
3-Cell

42

6,636 llm

 595 595 45
3-Cell
