SC1022

SC1022

SUSPENDED

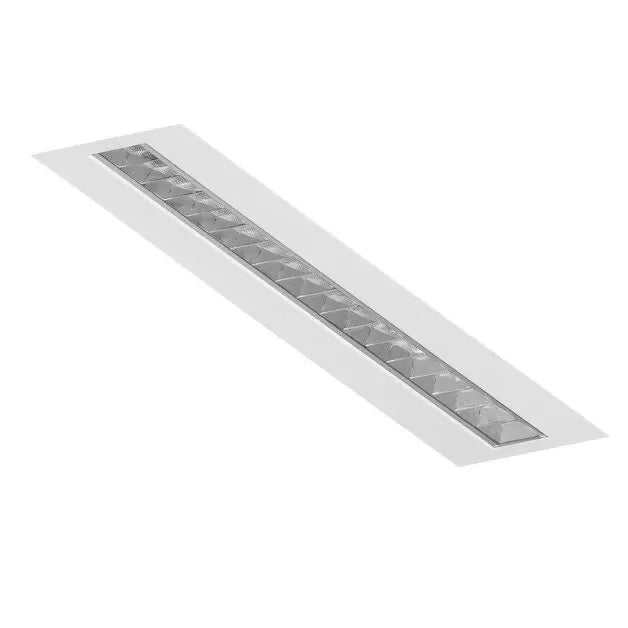

This versatile luminaire is designed for universal application in various office environments, including hallways, conference rooms, and computer rooms. Available in two configurations—parabolic louver (PAR) for reduced glare and opal diffuser (OPAL) for softer light diffusion—this fixture ensures optimal lighting conditions for any setting. It incorporates power supplies with a power factor cos φ > 0.95, promoting energy efficiency. Additionally, DALI lighting control is available upon request, enhancing flexibility in managing lighting systems. The luminaire is compatible with T24 ceilings, with T15 ceiling versions also available upon request, making it an ideal choice for modern office spaces.

  • Materials: Powder painted steel sheet body (standard color: white), parabolic louver (PAR) with microprismatic plate (MPRM), opal diffuser (OPAL) made of polycarbonate
  • Installation: Into modular ceilings 600x600 with a visible supporting structure.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE llm/W LENGTH (L) WIDTH (W) HEIGHT (H)
17
1,620 llm
 595 134 87
31
3,190 llm
 595 134 87
32
3,700 llm
 1195 134 87
60
6,600 llm
 1195 134 87
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
