WL1002

WL1002

WALL LIGHT

This refined bracket is tailored for G9 LED lamps, providing a subtle and sophisticated lighting solution for covered facades and elegant indoor spaces. Its understated design complements a variety of architectural styles, enhancing the visual appeal of any environment. Additionally, the luminaire can be customised in any RAL colour, ensuring it harmoniously integrates into your overall design scheme. Ideal for those seeking a blend of functionality and aesthetic elegance in their lighting choices.

  • Materials: Electrostatically painted aluminium housing (standard colour: anthracite), OPAL diffuser made of plastic. Recommended use of LED bulbs adapted to 230V power supply. Light source not included.
  • Installation:

WL1002 | CIP65 G9 DI-IN Wall Light – Minimalist Architectural Wall Light

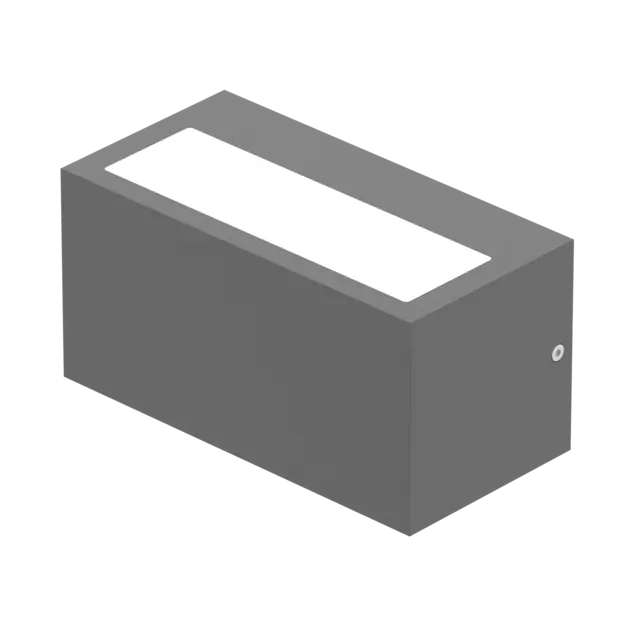

The WL1002 is a sleek, cube-shaped wall luminaire designed to enhance both indoor and covered outdoor spaces. Its minimalist design and durable construction make it an ideal choice for modern architectural applications.​

🔍 Key Features:

Compact Design: Dimensions of 100x100x100 mm, providing a discreet yet effective lighting solution.​

Durable Construction: Crafted from electrostatically painted aluminum with an opal diffuser, ensuring longevity and consistent light diffusion.​

Versatile Light Distribution: Offers both direct and indirect light distribution (DI-IN) to suit various lighting needs.​

Flexible Light Source Compatibility: Supports G9 LED lamps up to 10W, offering flexibility in light source selection.​

Customizable Finish: Standard finish in anthracite, with the option for custom RAL colors to match specific design requirements.​

Easy Installation: Designed for wall-mounted installation with a bracket system, facilitating quick and secure mounting.​

Ingress Protection: IP65-rated, making it suitable for indoor and covered outdoor applications where protection against dust and water jets is required.​

🏢 Ideal Applications:

Perfect for residential buildings, shopping centers, galleries, corridors, offices, hotels, and other commercial spaces seeking a modern lighting solution.​

📐 Technical Specifications:

Dimensions: 100x100x100 mm​

Material: Electrostatically painted aluminum​

Diffuser: Opal​

Light Source: G9 LED lamps up to 10W​

Protection Rating: IP65​

Impact Resistance: IK06

Mounting: Wall-mounted with bracket​

Finish Options: Anthracite (standard), Custom RAL colors available​

Enhance your architectural spaces with the WL1002, combining minimalist design with reliable performance.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

LAMP CAP

 llm/W LENGTH (L) WIDTH (W) HEIGHT (H)
G9
N/A
 200 100 100


CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
