WL1004

WL1004

WALL LIGHT

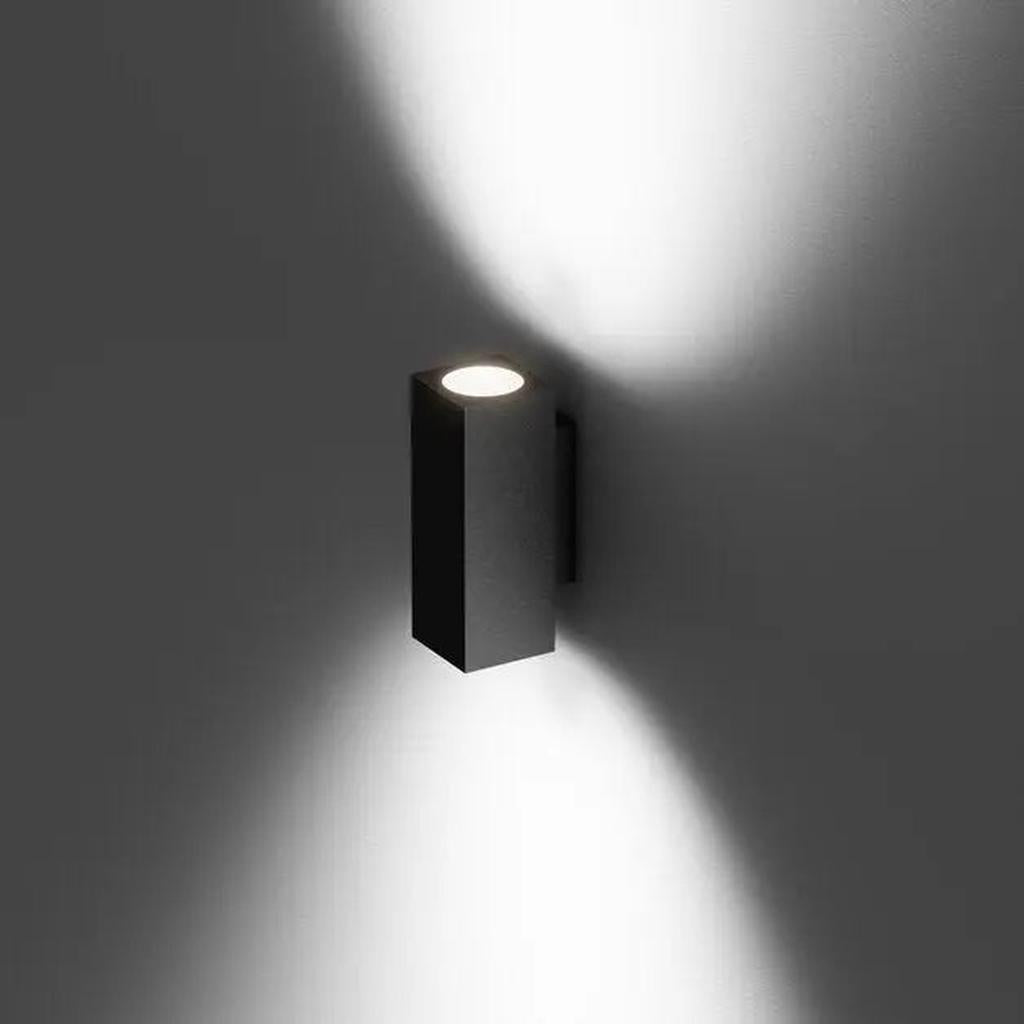

This LED bracket boasts a refined design, making it an excellent choice for illuminating covered facades and distinguished interior spaces. Its understated elegance ensures it blends seamlessly into various environments. Furthermore, there is the option to customise the bracket with a paint finish in any RAL colour, allowing for enhanced versatility and cohesion with your architectural vision.

  • Materials: Electrostatically painted aluminium profile (standard colour: anthracite), diffuser made of transparent tempered glass
  • Installation:

WL1004 | IP65 LED Architectural Outdoor Wall Luminaire

The WL1004 is a minimalist, high-performance LED wall luminaire designed to enhance outdoor architectural spaces.

Its sleek design and robust construction make it ideal for illuminating building facades, entrances, and pathways.​

🔍 Key Features:

  • Modern Design: Rectangular aluminum housing with a high-gloss reflector, providing a contemporary aesthetic that complements various architectural styles.​
  • Efficient Illumination: Equipped with a 10W LED light source delivering up to 1,220 lumens, ensuring energy-efficient lighting with a luminous efficacy of 122 lm/W.​
  • Robust Construction: IP65-rated for protection against dust and water ingress, making it suitable for various outdoor conditions.​
  • Color Temperature Options: Available in 3000K (warm white) and 4000K (neutral white) to create the desired ambiance.​
  • Customizable Finish: Standard finish in white, with the option for custom RAL colors to match specific design requirements.​
  • Easy Installation: Designed for wall-mounted installation, facilitating quick and secure mounting.​

🏢 Ideal Applications:

  • WL1004 Perfect for illuminating building facades, entrances, corridors, and other outdoor areas where both functional lighting and aesthetic enhancement are desired.​

📐 Technical Specifications:

  • Power Consumption: 10W​
  • Luminous Flux: 1,220 lm
  • Luminous Efficacy: 122 lm/W​
  • Color Temperature: 3000K / 4000K​
  • Color Rendering Index (CRI): ≥80​
  • Material: Aluminum housing with high-gloss reflector​
  • Protection Rating: IP65​
  • Mounting: Wall-mounted​
  • Finish Options: White (standard), Custom RAL colors available​

Elevate your outdoor spaces with the WL1005, combining minimalist design with reliable performance for effective and stylish illumination.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE LUMEN LENGTH (L) WIDTH (W) HEIGHT (H)
10

565(DI)
565(ID)

 85 85 232
15

815(DI)
815(ID)

 85 85 232


CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
