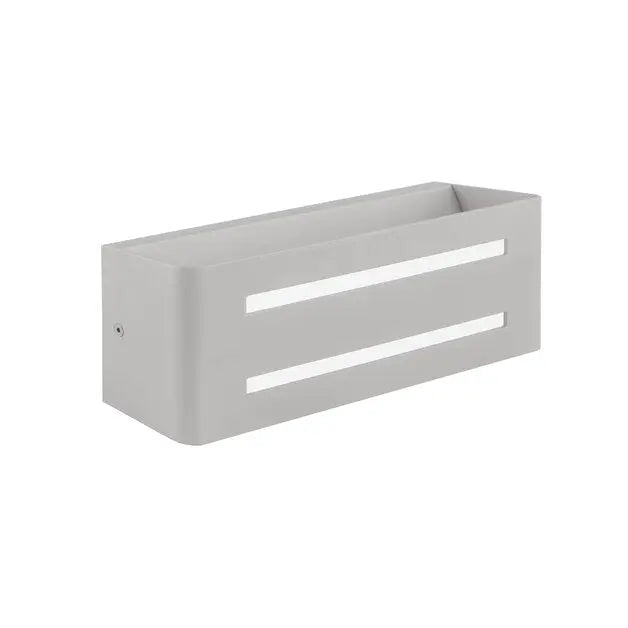

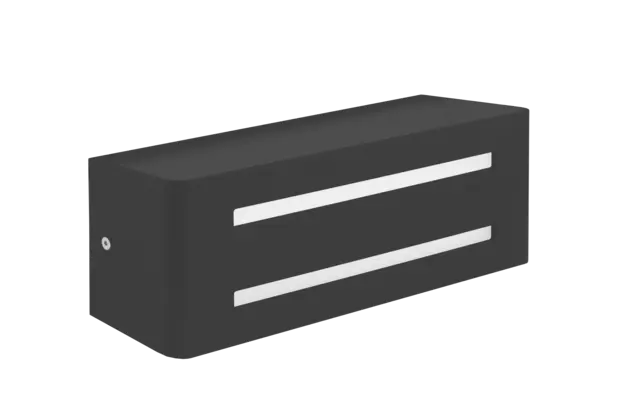

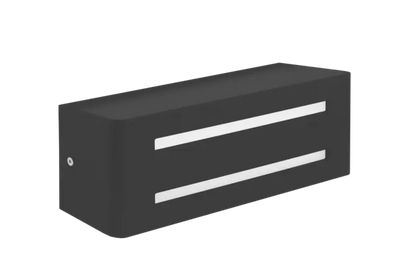

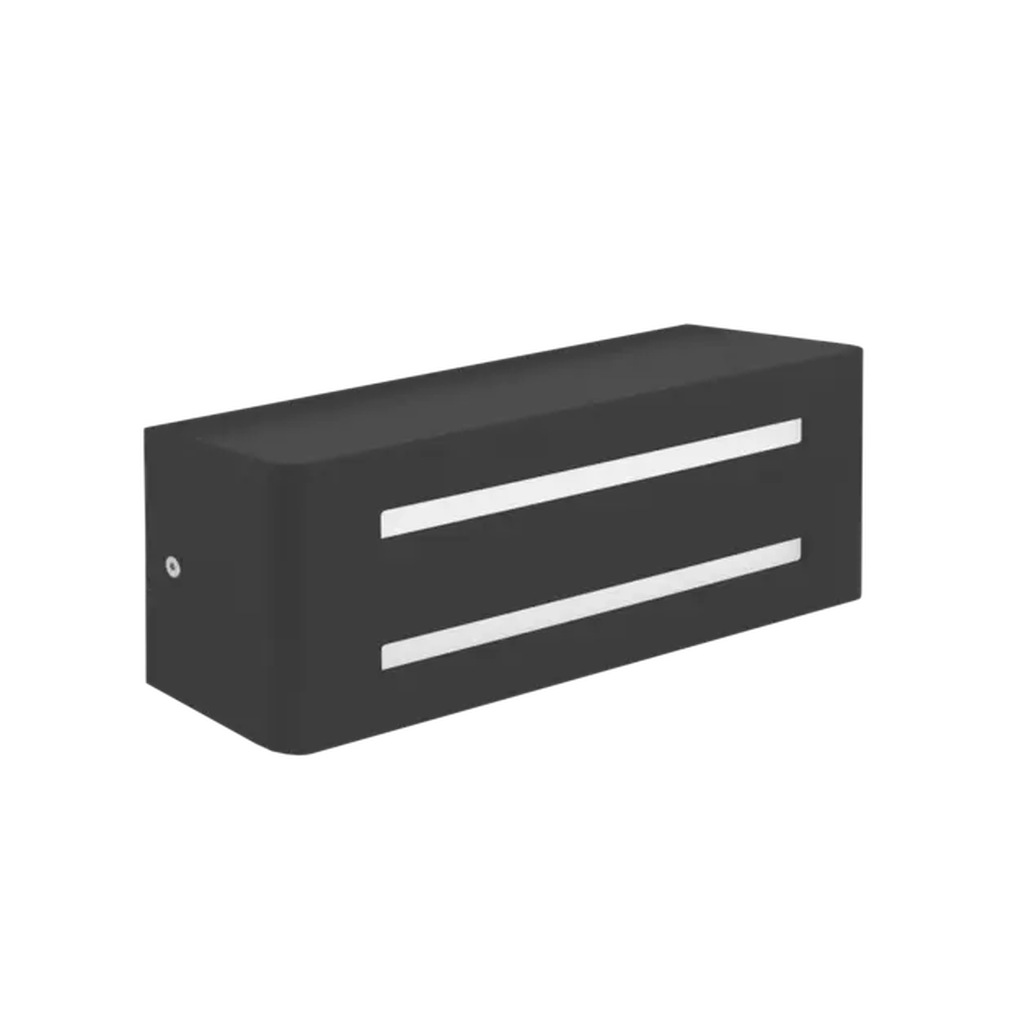

WL1016

WL1016

WALL LIGHT

This decorative bracket is specifically designed for use with LED light sources, offering a stylish and functional solution for your lighting needs. Its elegant design not only enhances the aesthetic appeal of any space but also provides versatile mounting options. Ideal for both residential and commercial settings, this bracket ensures a seamless integration of modern LED technology while adding a touch of sophistication to your lighting scheme. Perfect for accentuating features or providing ambient lighting, it combines practicality with contemporary design.

  • Materials: Housing made of powder painted aluminium (standard colour: white, grey, black), steel sheet body, DECO version with OPAL diffuser
  • Installation: Wall mounted

WL1016 | Decorative Feature LED Wall Light Luminaire

The WL1016 is a sleek, wall-mounted LED luminaire designed to enhance interior spaces with its minimalist design and efficient performance.

Its clean lines and soft illumination make it an ideal choice for modern environments seeking both style and functionality.​

🔍 Key Features:

Contemporary Design: Constructed from powder-coated aluminium, available in standard finishes of white, grey, or black. Custom RAL colours are available upon request.​

Efficient Illumination: Equipped with a 9W integrated LED module, delivering a luminous flux of up to 680 lumens, achieving an efficacy of 76 lm/W.​

Uniform Light Distribution: Features an opal diffuser that ensures even light distribution, enhancing visual comfort.​

Durable Construction: IP20-rated for protection against dust ingress, making it suitable for various indoor conditions.​

Flexible Installation: Designed for wall-mounted installation, facilitating quick and secure mounting.​

Control Options: Available with ON/OFF or DALI drivers. Optional motion sensor and emergency module integrations.​

🏢 Ideal Applications:

Perfect for corridors, staircases, receptions, offices, and other indoor spaces where both functional lighting and aesthetic enhancement are desired.​

📐 Technical Specifications:

Power Supply: 220–240V​

Light Source: Integrated LED​

Power Consumption: 9W​

Luminous Flux: 660–680 lm​

Luminous Efficacy: 73–76 lm/W​

Colour Temperature: 3000K or 4000K​

CRI: ≥80​

MacAdam SDCM: 3​

Light Distribution: Wide beam

Driver Options: ON/OFF, DALI​

Emergency Module: Optional​

Motion Sensor: Optional​

Protection Rating: IP20

Impact Resistance: IK05​

Class of Protection: Class I

Housing Material: Powder-coated aluminium​

Diffuser Material: Opal/matt plastic​

Dimensions: Length: 307 mm​

Weight: 1 kg​

The WL1016 combines modern design with high-performance lighting, making it a versatile choice for enhancing contemporary interiors with both style and functionality.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE llm/W LENGTH (L) WIDTH (W) HEIGHT (H)
9

680 llm

 307 74 100
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
