WL1018

Name: WL1018
Brand: M-Light UK
Availability: InStock

WL1018

WALL LIGHT

The WL1018 is an elegant and efficient luminaire designed for illuminating offices, conference rooms, receptions, and various working environments. It offers versatile options, including versions with direct or direct-indirect light distribution, ensuring optimal lighting conditions tailored to your needs. Its sophisticated design enhances the aesthetic of any workspace while providing high-quality illumination, making it an ideal choice for both productivity and comfort in professional settings.

WL1018 | Direct Output Linear Wall LED Luminaire for Architectural Ambient Lighting

WL1018 is a sleek wall-mounted LED profile designed to deliver efficient, direct illumination across commercial interiors. Its compact, refined form integrates seamlessly into architectural spaces, while offering a wide range of diffuser options and lumen packages to suit corridor, reception, and office environments.

🧩 Key Features:

Direct Wall-Mounted Illumination: Emits controlled downward light for general or feature lighting
Flexible Sizing: Available in five lengths from 306 mm to 2176 mm for tailored installations

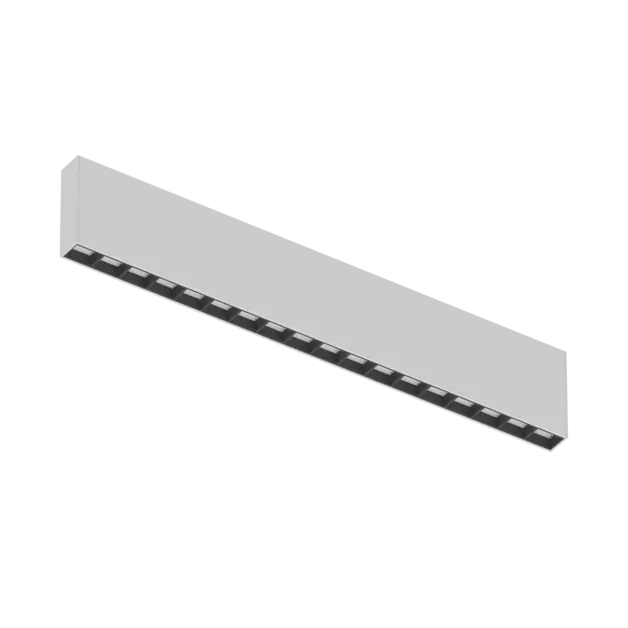

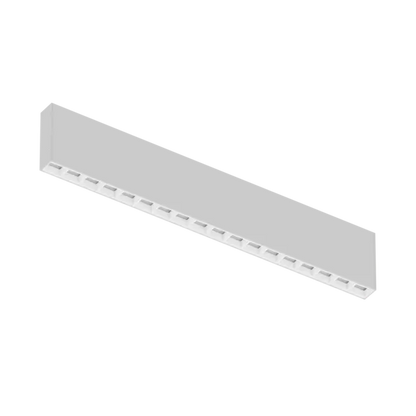

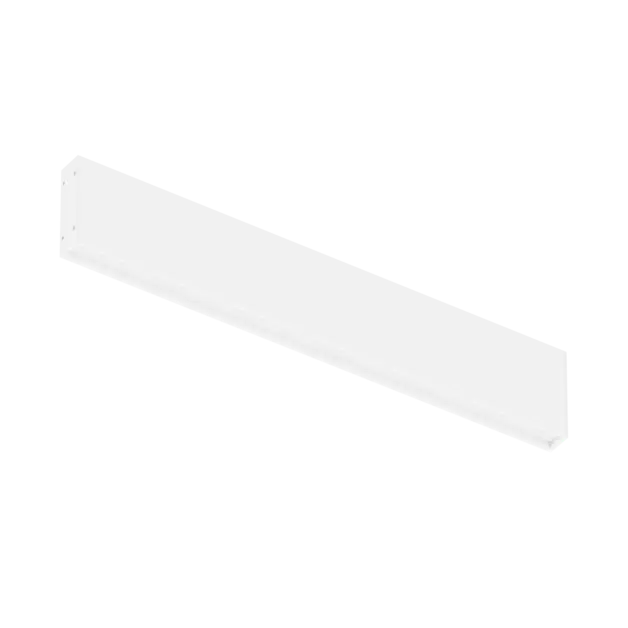

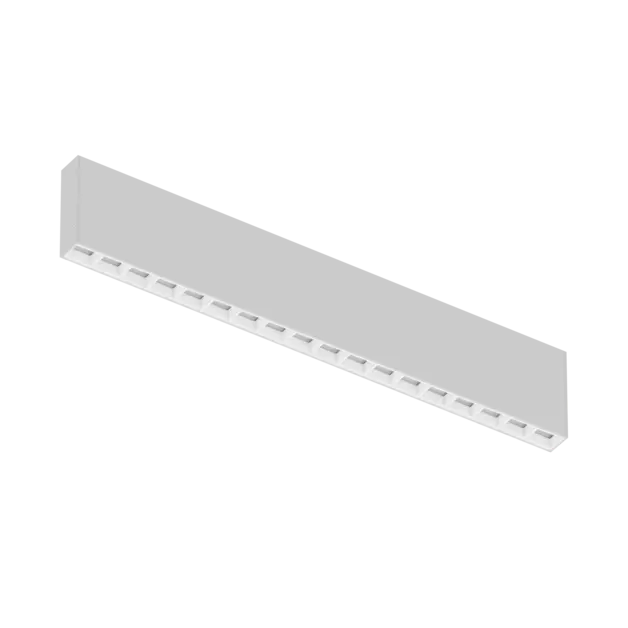

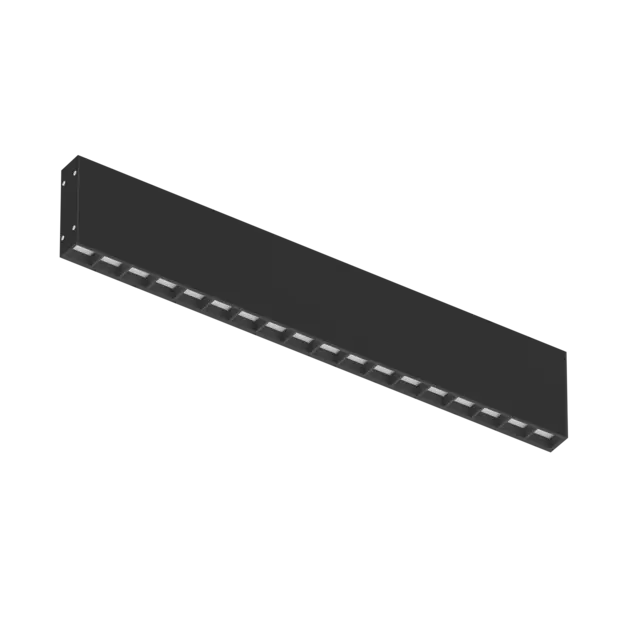

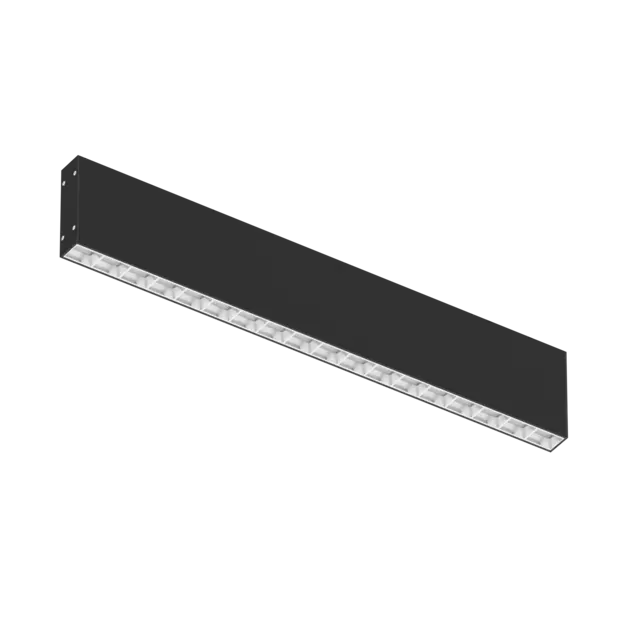

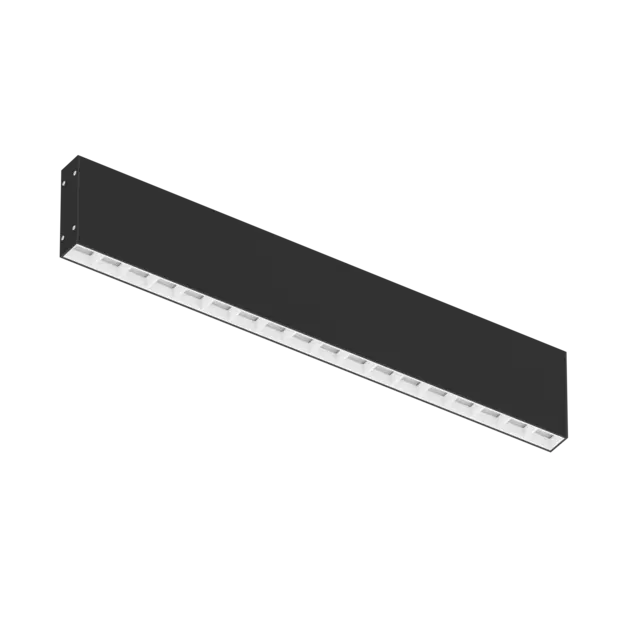

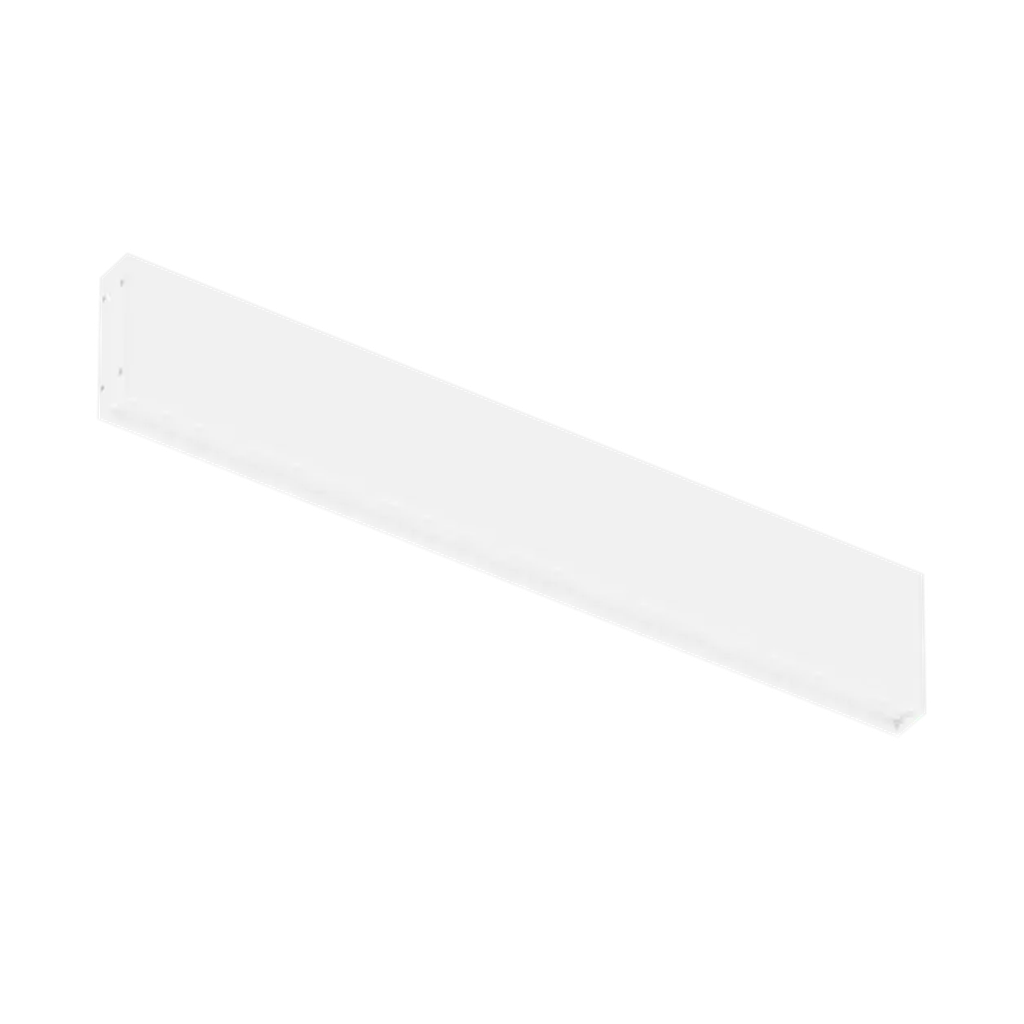

Optical Variants: Choose from opal or recessed parabolic louver diffusers (mPARM, mPARB, mPARW)
Energy Efficient: Up to 5,370 lm from just 48 W, delivering up to 112 lm/W
Control Options: Available with ON/OFF or DALI drivers

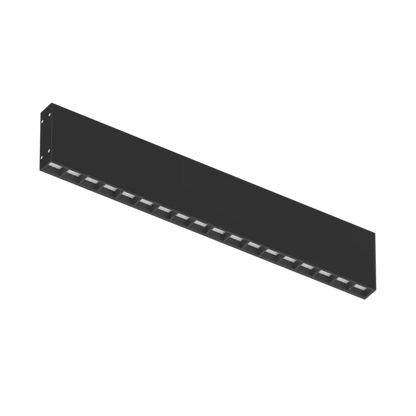

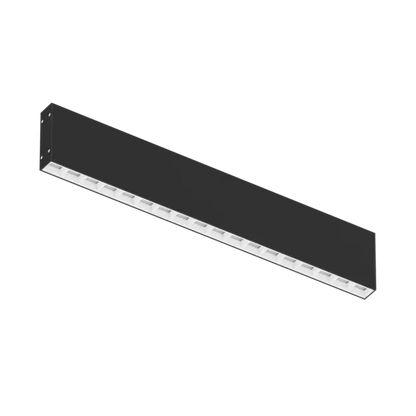

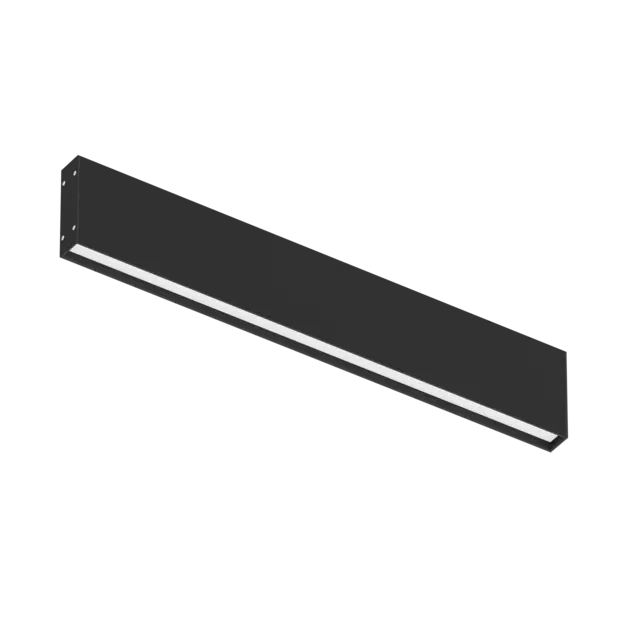

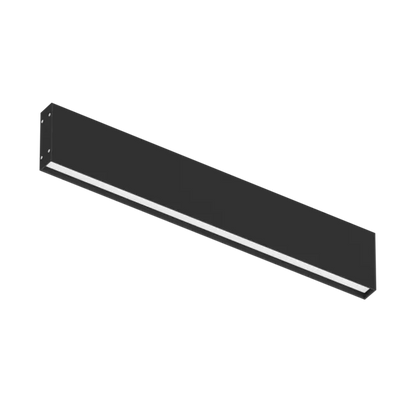

Finish Customisation: Standard in white, grey, black — with RAL colour matching available
Low Glare Optics: UGR options down to 13 for comfort in task-oriented spaces

🏢 Ideal Applications:

Office corridors, feature walls, reception zones, meeting rooms, staircases, and commercial interiors seeking compact, efficient wall lighting with a clean design aesthetic.

📐 Technical Specifications:

Mounting Type: Wall-mounted
Form: Linear LED wall luminaire (direct output)
Length Options: 306 mm, 551 mm, 1091 mm, 1631 mm, 2176 mm
Power Range: 8 – 48 W
Luminous Flux: 630 – 5,370 lm
Luminous Efficacy: 53 – 112 lm/W
UGR: 13, 16, 19, 22
Driver Options: ON/OFF, DALI
Diffuser Options: OPAL, mPARM, mPARB, mPARW
CRI: >80 or >90 (830, 840, 930, 940)
Colour Temperature: 3000 K or 4000 K
MacAdam Step: SDCM 3
Housing Material: Powder-coated aluminium
Finish Options: White, Grey, Black, or any RAL
Protection Rating: IP20
Impact Resistance: IK04
Class of Protection: Class I
Net Weight: 0.85 – 4 kg
Operating Temperature: -20 to +40°C
Power Factor: 0.96
Emergency Module: Optional
Motion Sensor: Optional
Flicker: ≤3%
Lifespan: 100,000 h (L80B10), 64,000 h (L90B10)
Certifications: CE, HACCP+, EAC

Why Specify WL1018?

Because great wall lighting doesn’t shout — it works quietly in the background, delivering function with form. WL1018 provides sleek, glare-controlled illumination in a range of formats built for commercial design.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE	LUMEN	LENGTH (L)	WIDTH (W)	HEIGHT (H)
14	780 (DI) 760 (ID) llm	306	28	100
24	1125 (DI) 1125 (ID) llm	551	28	100
25	1340 (DI) 1340 (IN) llm	551	28	100
46	2240 (DI) 2240 (ID) llm	1091	28	100
48	2690 (DI) 1690 (ID) llm	1091	28	100
67	3365 (DI) 3365 (ID) llm	1631	28	100
74	4030 (DI) 4030 (ID) llm	1631	28	100
88	4480 (DI) 4480 (ID) llm	2176	28	100
97	5370 (DI) 5370 (ID) llm	2176	28	100
