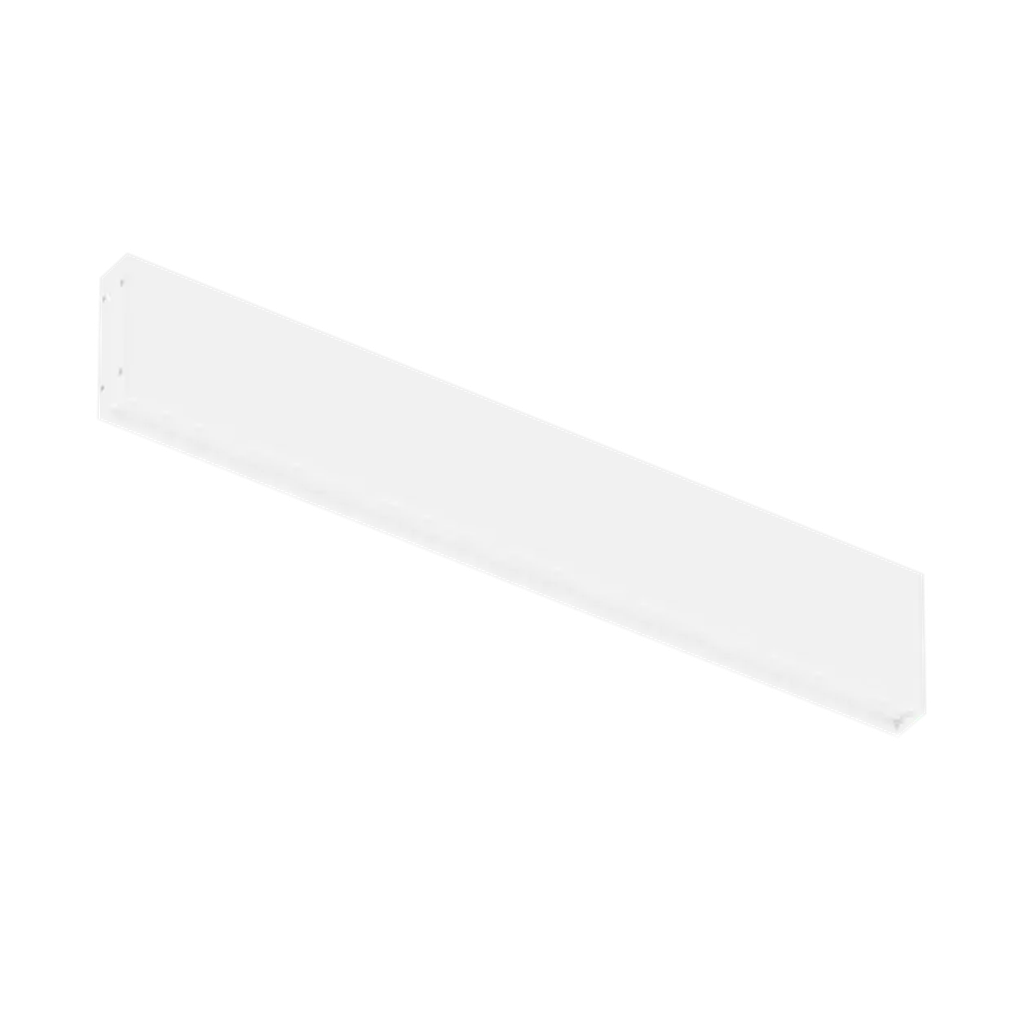

WL1019

WL1019 | Architectural Wall-Mounted LED Profile with Direct and Indirect Light Distribution

WL1019 is a clean-lined, wall-mounted LED profile designed for ambient lighting with optional upward and downward illumination. With flexible output ranges, refined optics, and a minimalist aesthetic, it’s ideal for commercial interiors requiring visual comfort and architectural elegance.

🧩 Key Features:

• Direct/Indirect Wall Wash: Offers both downward and upward illumination for layered ambient lighting
• Range of Sizes: Available in five lengths from 306 mm to 2176 mm, scaling easily across project needs
• Optical Flexibility: Choose from opal or parabolic louver (mPARM, mPARB, mPARW) diffusers
• Efficient Output: Up to 5,370 lm (direct) and 5,200 lm (indirect) at a maximum of 97 W
• Control Options: Compatible with ON/OFF or DALI drivers, plus optional emergency and motion sensor integration
• RAL Colour Matching: Standard white, grey, black, or custom RAL finishes available
• Low UGR Variants: UGR ratings as low as 8 for high-visual-comfort applications

🏢 Ideal Applications:

Office walls, corridors, stairwells, classrooms, receptions, and public-facing interiors that demand high-quality ambient illumination and architectural integration.

📐 Technical Specifications:

• Mounting Type: Wall-mounted
• Form: Linear wall luminaire
• Length Options: 306 mm, 551 mm, 1091 mm, 1631 mm, 2176 mm
• Power Range: 14 – 97 W
• Luminous Flux (Direct): 630 – 5,370 lm
• Luminous Flux (Indirect): 560 – 5,200 lm
• Luminous Efficacy: 71 – 110 lm/W
• UGR: 8, 11, 15, 19
• Driver Options: ON/OFF, DALI
• Diffuser Options: Opal, mPARM, mPARB, mPARW
• CRI: >80 or >90 (830, 840, 930, 940)
• Colour Temperature: 3000 K or 4000 K
• MacAdam Step: SDCM 3
• Housing Material: Powder-coated aluminium
• Finish Options: White, Grey, Black, or any RAL
• Protection Rating: IP20
• Impact Resistance: IK04
• Class of Protection: Class I
• Net Weight: 0.85 – 4 kg
• Operating Temperature: -20 to +40°C
• Power Factor: 0.96
• Emergency Module: Optional
• Motion Sensor: Optional
• Flicker: ≤3%
• Lifespan: 100,000 h (L80B10), 64,000 h (L90B10)
• Certifications: CE, HACCP+

Why Specify WL1019?
Because when lighting blends architecture and performance, WL1019 delivers both — enhancing vertical spaces with glare-controlled, dual-directional light in a form that’s as subtle as it is efficient.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.
