WL1021

WL1021

WALL LIGHT

This wall bracket is designed specifically for the WL1021 lighting system, offering versatile installation options. It can be mounted separately or configured for inline installation, providing flexibility to suit various space requirements. The bracket supports an elegant and efficient luminaire, ideal for illuminating offices, conference rooms, receptions, and similar environments. Its sleek design complements contemporary interiors while delivering high-quality lighting to enhance productivity and comfort in professional settings.

  • Materials: Electrostatically painted aluminum profile (standard color: grey), OPAL diffusers made of polycarbonate.
  • Installation:

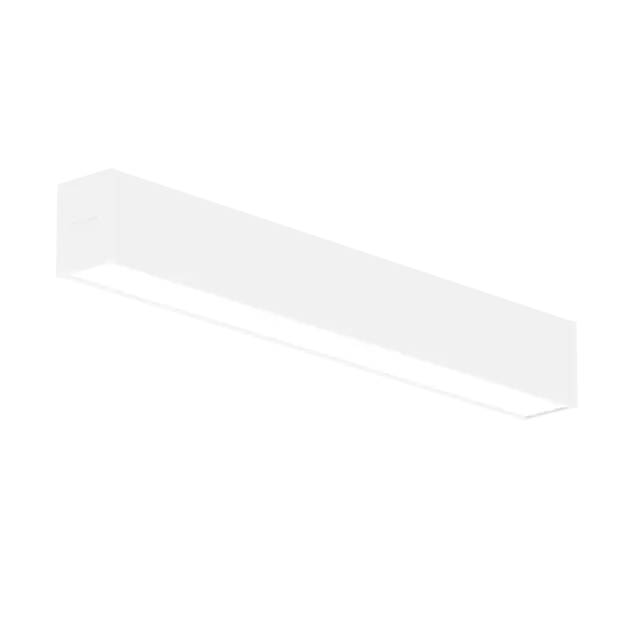

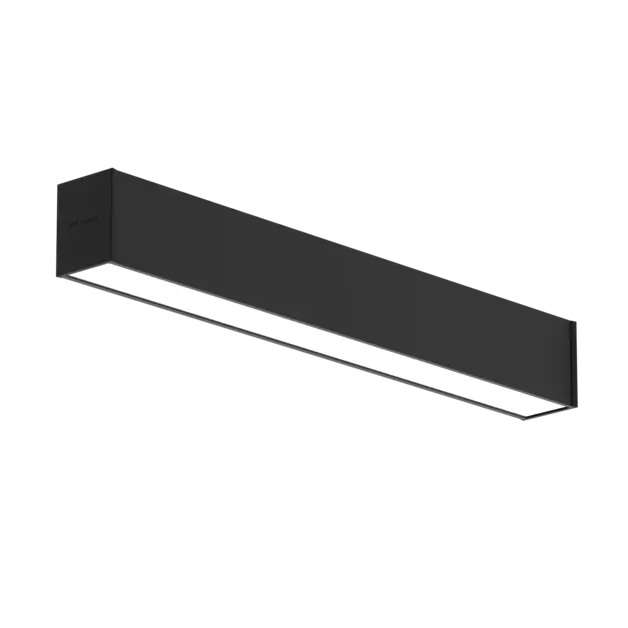

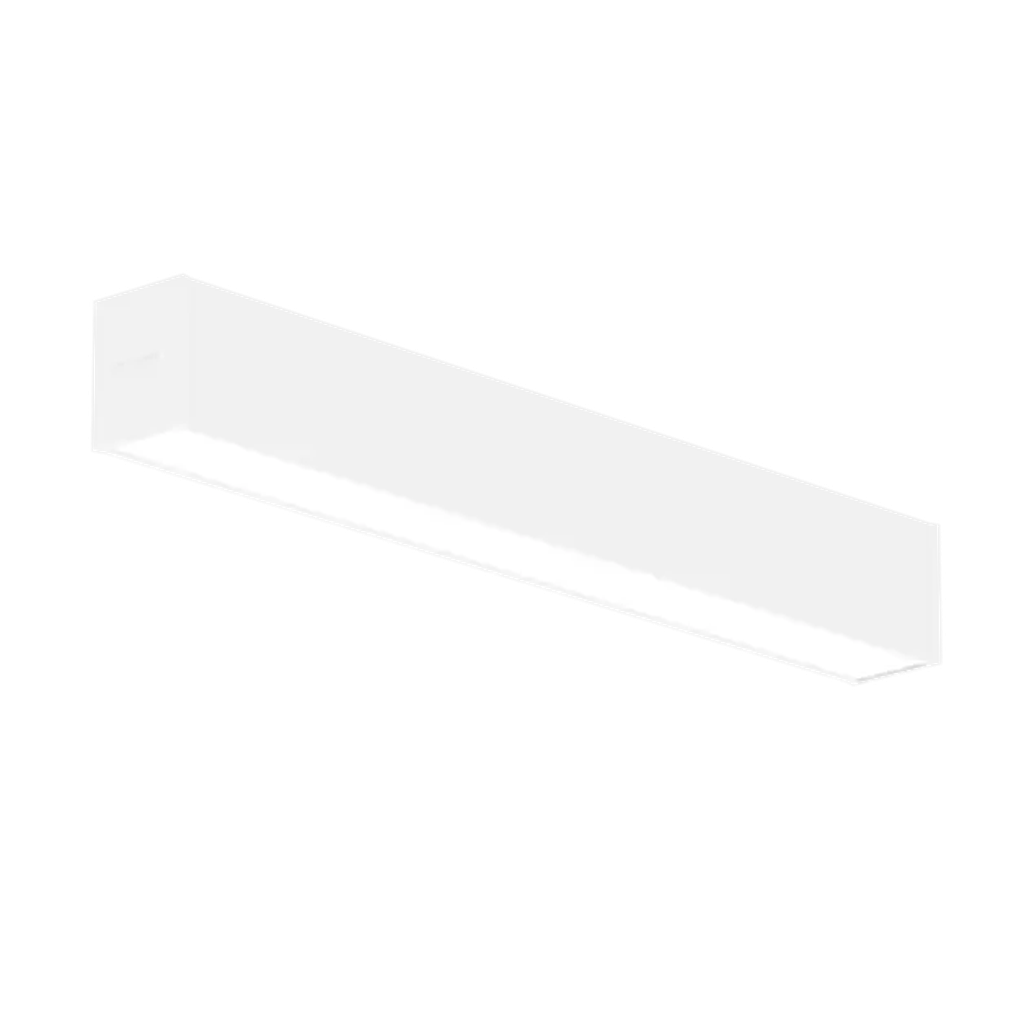

WL1021 | Architectural Wall-Mounted Linear LED Luminaire with Dual Beam Output

WL1021 is a precision-engineered wall-mounted linear LED luminaire designed to deliver both direct and indirect illumination—perfect for elevating ambient lighting in commercial and educational environments. With a sleek anodised aluminium body and OPAL polycarbonate diffusers, this profile enhances vertical surfaces while casting a balanced uplight and downlight for visual depth and comfort.

Available in multiple lengths from 545mm to 2170mm and outputs ranging up to 5900 lumens, WL1021 combines clean aesthetics with smart functionality. Whether used standalone or in seamless runs, it delivers efficiency, glare control, and architectural finesse.

🧩 Key Features:

  • Direct/Indirect Light Distribution: Creates balanced ambient and task lighting
  • Multiple Output Variants: DI up to 5900 lm, IN up to 4880 lm for enhanced versatility
  • Efficient Performance: Efficacy up to 120 lm/W depending on configuration
  • Diffuser Options: OPAL or MPRM for glare reduction (UGR ≤18)
  • Smart Driver Options: Available with DALI or ON/OFF control, sensor-ready
  • RAL Colour Flexibility: Standard grey, black or white with custom finishes available
  • Long Life LED System: 100,000h (L80B10) and 64,000h (L90B10) ensures futureproof ROI

🏢 Ideal Applications:

Commercial offices, reception areas, corridors, lecture halls, and breakout zones where vertical architectural lighting with visual interest and energy savings is essential.

📐 Technical Specifications:

  • Mounting Type: Wall mounted
  • Light Output: DI: 970 – 5900 lm / IN: 1010 – 4880 lm
  • Power Consumption: 25 – 90W
  • Luminous Efficacy: Up to 120 lm/W
  • Colour Temperatures: 3000K / 4000K
  • CRI: 80 / 90
  • UGR: ≤18
  • Diffuser Options: OPAL, MPRM
  • Driver Type: DALI / ON-OFF
  • Dimmable: Optional
  • Emergency Capability: Optional emergency module
  • Body Finish: Grey, white, black (custom RAL available)
  • Material: Powder-coated aluminium
  • Impact Resistance: IK04
  • IP Rating: IP30
  • Operating Temp: 0°C to +40°C
  • Lifetime: 100,000h (L80B10)
  • Certifications: CE, EAC

💡 Why Specify WL1021?
Because effective architectural lighting doesn’t stop at ceilings. WL1021 adds depth, balance, and visual comfort with dual-beam performance, smart controls, and a form factor designed to elevate modern commercial spaces.

DIMENSIONS
NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE
LUMEN
LENGTH (L)
WIDTH (W)
HEIGHT (H)
25
1170 (DI) / 1220 (ID) llm
545
60
75
48
2340 (DI) / 2440 (ID) lm
1085
60
75
68
3510 (DI) / 3660 (ID) llm
1625
60
75
90
4680 (DI) / 4880 (ID) llm
2170
60
75
