WL1022

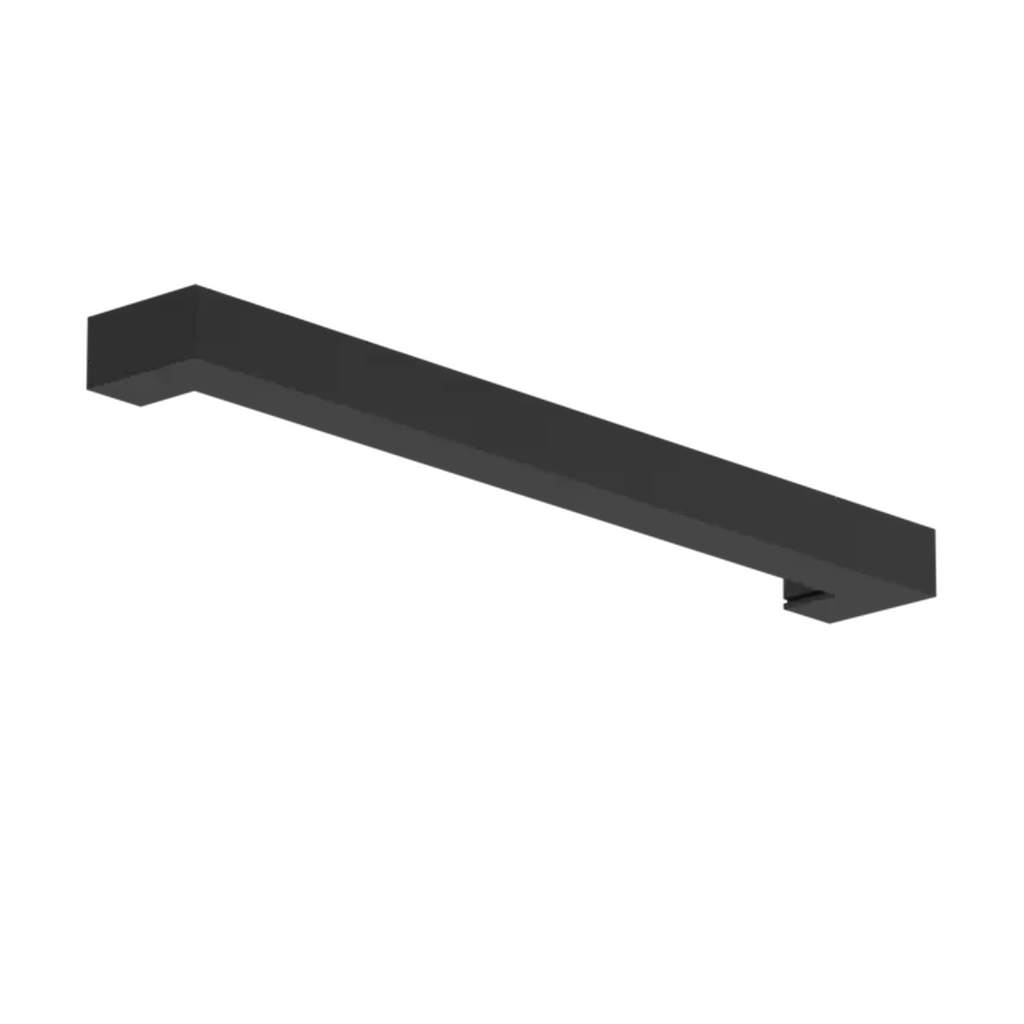

WL1022 | Compact Linear LED Wall Luminaire for Architectural Interiors

The WL1022 is a sleek, surface-mounted wall luminaire offering a minimalist solution for dry interior spaces. Ideal for mirror lighting, corridor accents, or architectural feature walls, this compact LED delivers uniform illumination and timeless design in a slim, unobtrusive form.

🧱 Key Features:

• Space-Saving Design: Compact linear profile perfect for smaller spaces or installations requiring subtle, refined lighting.
• Wall-Mounted Flexibility: Can be installed horizontally or vertically for design adaptability.
• Uniform Light Output: Opal diffuser delivers soft, ambient illumination with no glare.
• Energy Smart: Up to 112 lm/W — combines performance with low energy consumption.
• Customisable Finishes: Available in white or black as standard, with custom RAL colours available on request.
• Smart Control Options: Supports both ON/OFF and DALI drivers for full system integration.

🏨 Ideal Applications:

Bathroom mirrors (dry zones only), corridor walls, hotel rooms, residential interiors, retail display backdrops, and soft ambient lighting installations.

📐 Technical Specifications:

• Power Consumption: 9–17W
• Luminous Flux: 470 - 960 lm
• Luminous Efficacy: Up to 112 lm/W
• Colour Temperature: 3000K or 4000K
• CRI: >80
• UGR: <19
• Driver Options: ON/OFF, DALI
• Mounting Type: Surface wall-mounted (horizontal or vertical)
• Protection Rating: IP20
• Impact Resistance: IK03
• Class of Protection: Class I
• Housing Material: Powder-coated aluminium
• Diffuser: Opal
• Dimensions: L: 600 mm / 900 mm / 1200 mm | H: 45 mm | D: 68 mm
• Finish Options: White (RAL 9003), Black (RAL 9005), custom on request

💡 Why Choose the WL1022?

Because great design doesn’t need to shout. The WL1022 is small in form, big on impact — delivering refined, energy-efficient illumination for spaces where size and style both matter.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.
