WL1024

WL1024

WALL LIGHT

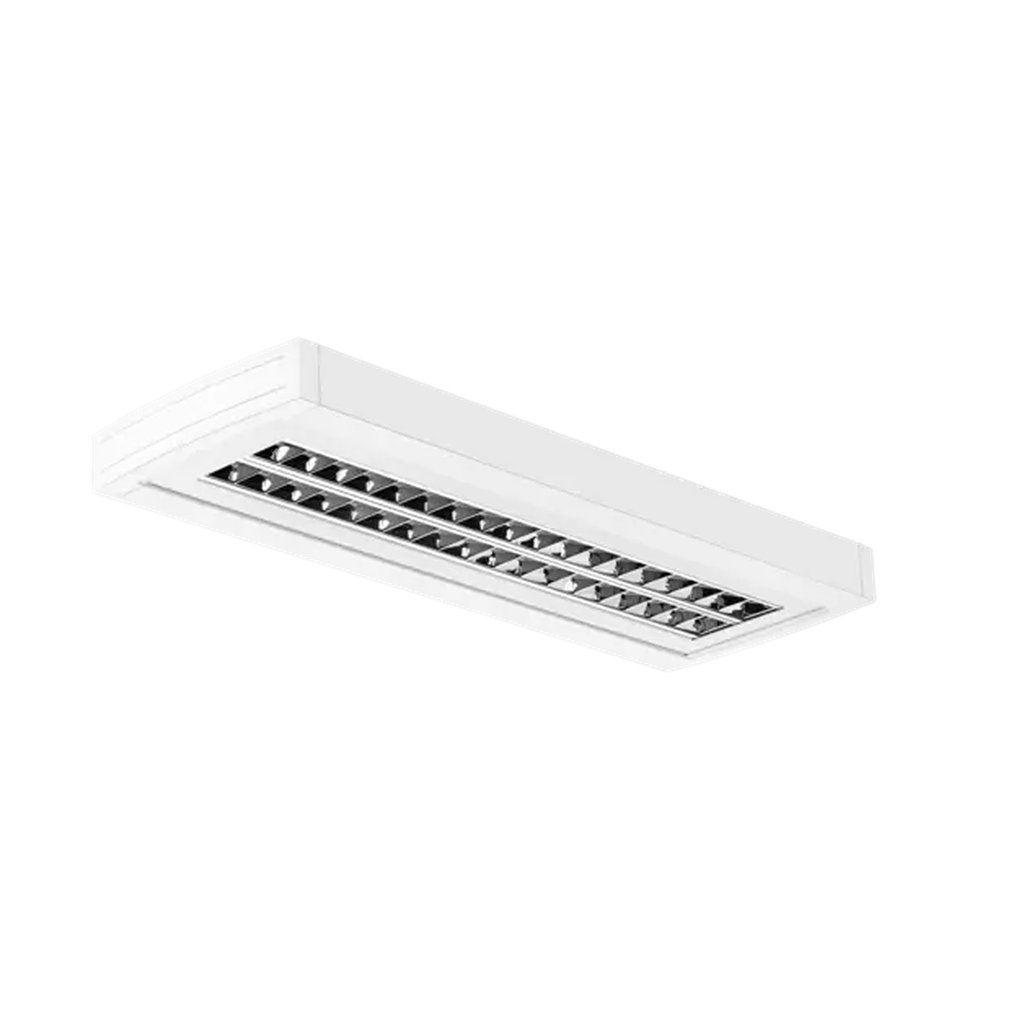

Introducing the WL1024, a new luminaire featuring a modern design that utilizes LED technology, making it ideal for both ceiling and suspended mounting. Its compact and adjustable structure makes the WL1024 a versatile solution for a wide range of environments, from small offices to larger spaces such as corridors and meeting rooms. This luminaire incorporates LED diodes from reputable manufacturers, ensuring reliability and longevity. Additionally, the high-quality power supply offers an impressive power factor of ϕ > 0.95, contributing to energy efficiency and optimal performance. The WL1024 not only enhances the aesthetic appeal of any space but also provides superior illumination for enhanced productivity.

  • Materials: Powder painted body made od steel sheets and durable polycarbonate, OPAL and microprismatic diffusers made of PMMA.
  • Installation:

WL1024 | Wall-Mounted LED Luminaire for Durable Indoor and Outdoor Applications

The WL1024 is a robust wall-mounted LED luminaire engineered for modern commercial and architectural spaces.

Designed for both indoor and sheltered outdoor use, it combines high performance with durable construction and clean, minimalist aesthetics.​

🔍 Key Features:

  • Modern Minimalist Design: Sleek rectangular profile complements a wide range of architectural styles and environments.​
  • High Luminous Efficacy: Provides up to 113 lm/W, delivering strong illumination while maintaining energy efficiency.​
  • Durable Construction: Features a powder-coated aluminum body with a polycarbonate diffuser, offering impact and weather resistance for sheltered external areas.​
  • Versatile Mounting: Designed for wall-mounted applications, suitable for corridors, entrances, facades, and architectural accent lighting.​
  • Control Flexibility: Available with ON/OFF or DALI dimmable drivers; optional emergency version for added safety.​
  • Certified Quality: CE compliant, ensuring safe and reliable operation in demanding environments.​

🏢 Ideal Applications:

  • Commercial building entrances
  • Hotel exteriors and corridors
  • Office reception areas
  • Educational and healthcare facilities
  • Architectural facade lighting (sheltered outdoor)​

📐 Technical Specifications:

  • Power Consumption: 22W / 44W​
  • Luminous Flux: 2,500 lm / 5,000 lm​
  • Luminous Efficacy: Up to 113 lm/W​
  • Colour Temperature: 3000K or 4000K​
  • CRI: >80​
  • MacAdam SDCM: 3​
  • UGR: <25 (depending on mounting height and layout)​
  • Driver Options: ON/OFF, DALI​
  • Emergency Module: Optional (1h emergency pack)​
  • Protection Rating: IP54​
  • Impact Resistance: IK06​
  • Class of Protection: Class I​
  • Housing Material: Aluminum (powder-coated)​
  • Diffuser Material: Polycarbonate (opal)​
  • Mounting Options: Wall-mounted (direct to surface)​
  • Dimensions: 310mm / 610mm length options​
  • Weight: ~1.5–2.8 kg (depending on model)​

⚡ Quick comment:

The WL1024 hits the sweet spot when you need wall luminaires that look clean but take a knock, ideal for specifiers who want something more architectural than a basic bulkhead but still care about robustness and compliance.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE LUMEN LENGTH (L) WIDTH (W) HEIGHT (H)
15

1,660 llm

 650 223 50
27
3320 lm
 830 223 50
28
3490 llm
 1180 223 50
35
4210 llm
 640 223 50
42
5270 llm
 1080 223 50
51
6980 llm
 1180 223 50
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
