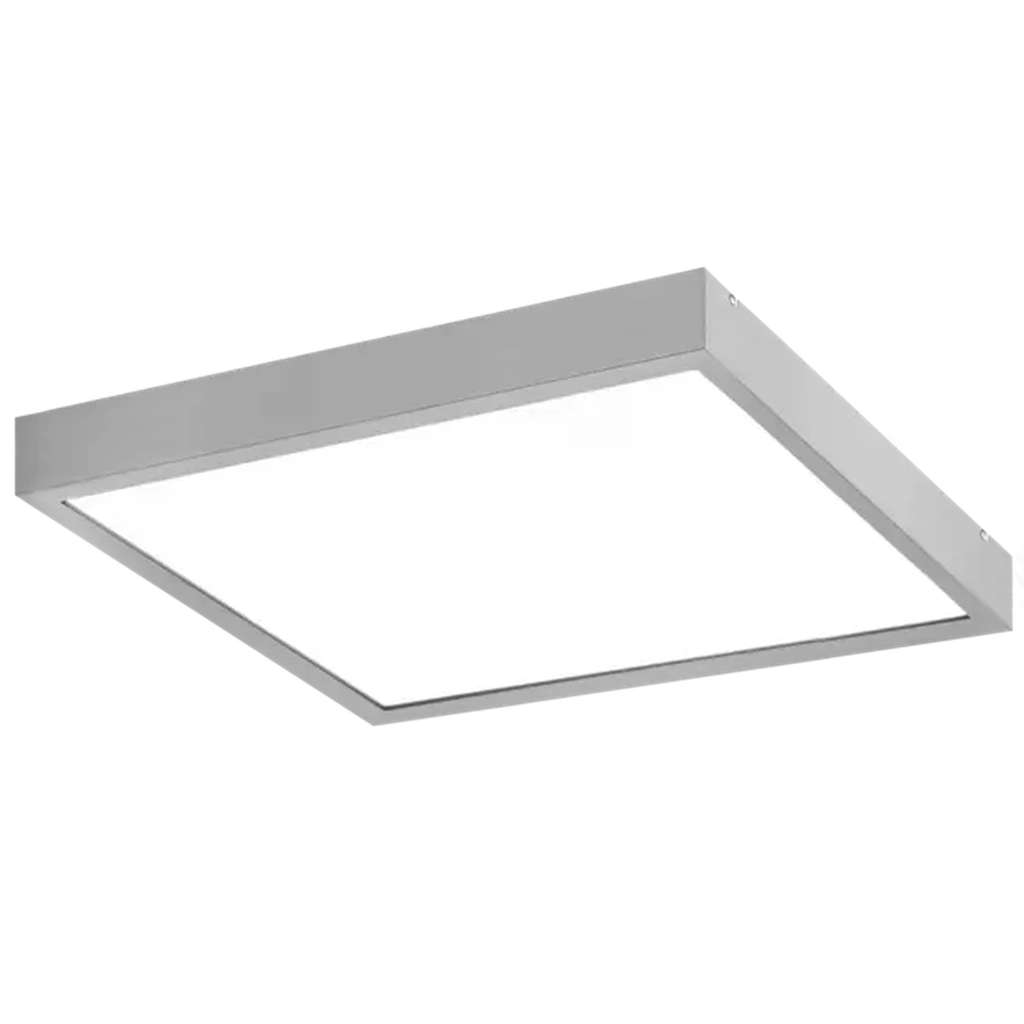

WL1025

WL1025

WALL LIGHT

The WL1025 is an energy-saving decorative lighting luminaire characterized by its modern and elegant design, equipped with high-quality LED light sources from renowned manufacturers. Its versatile form and mounting options make it suitable for a variety of public spaces, including conference rooms, offices, corridors, halls, and stairways. Featuring a top-tier AC power supply from reputable brands, the WL1025 achieves an impressive power factor of cos ϕ > 0.95, ensuring excellent energy efficiency. This luminaire not only enhances the aesthetic of any environment but also complements the rest of the series beautifully. Notably, the WL1025 offers the option for "Active+" installation—an innovative self-learning energy-saving system. This out-of-the-box solution combines an LED driver with a small sensor integrated into the luminaire, making it ideal for both refurbishment projects and new installations in offices, corridors, open-plan areas, and more. The Active+ system allows for intelligent lighting control, further enhancing energy savings and operational efficiency.

  • Materials: Steel sheet body, electrostatically painted (standard color: grey), microprismatic (MPRM) or OPAL diffuser.
  • Installation:

WL1025 | Architectural Wall/Ceiling Bulkhead Luminaire

The WL1025 is a sleek and durable LED luminaire designed to provide discreet yet effective illumination for indoor environments.

Its minimalist design and robust construction make it an ideal choice for enhancing the ambiance and safety of corridors, staircases, and reception areas.​

🔍 Key Features:

  • Modern Design: Constructed from a powder-painted aluminum profile housing with a steel sheet base, featuring an OPAL diffuser (PMMA) or microprismatic MPRM diffuser, offering a contemporary aesthetic that complements various architectural styles.​
  • Efficient Illumination: Offers a luminous flux ranging from 1,450 to 13,700 lumens, with a luminous efficacy between 91 and 137 lm/W, depending on the model.​
  • Color Temperature Options: Available in 2700K to 6500K, including tunable white options, to create the desired ambiance.​
  • Robust Construction: IP20-rated for protection against dust ingress, and IK04-rated for impact resistance, making it suitable for various indoor conditions.​
  • Flexible Installation: Designed for surface-mounted, suspended, or plasterboard recessed installation (only for 320mm, 440mm, and 520mm versions), facilitating quick and secure mounting on ceilings or walls.​
  • Finish Options: Standard finishes include white, grey, and black, with the option for custom RAL colors to match specific design requirements.​
  • Control Options: Available with FIXED OUTPUT, DALI,, WIRELESS or Corridor Function (CF) drivers to accommodate different control systems.​
  • Optional Features: Can be equipped with motion sensors and emergency modules for enhanced functionality.​

🏢 Ideal Applications:

  • WL1025 Perfect for illuminating corridors, staircases, reception areas, and other indoor spaces where both functional lighting and aesthetic enhancement are desired.​

📐 Technical Specifications:

  • Power Consumption: 16–100W​
  • Luminous Flux: 1,450–13,700 lm​
  • Luminous Efficacy: 91–137 lm/W​
  • Color Temperature: 2700K, 3000K, 4000K, including tunable white options​
  • Color Rendering Index (CRI): ≥80 or ≥90​
  • Material: Aluminum housing with OPAL or MPRM diffuser​
  • Protection Rating: IP20​
  • Impact Resistance: IK04​
  • Mounting: Surface-mounted, suspended, or plasterboard recessed (only for 320mm, 440mm, and 520mm versions)​
  • Finish Options: White, Grey, Black (Custom RAL colors available)​
  • Driver Options: ON/OFF, DALI, Corridor Function (CF), CASAMBI​
  • Optional Features: Motion sensor, Emergency module​

Enhance your indoor spaces with the WL1025, combining minimalist design with reliable performance for effective and stylish illumination.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE (W) LUMEN LENGTH (L) WIDTH (W) HEIGHT (H)
10

1010 llm

 307 307 65
19

2070 llm

 307 307 65
32

3460 llm

 407 407 65
38

4100 llm

 407 407 65
39

4200 llm

 595 595 65
44

4200 llm

 1195 295 65
67

7000 llm

 595 595 65
71

7000 llm

 1195 295 65
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
