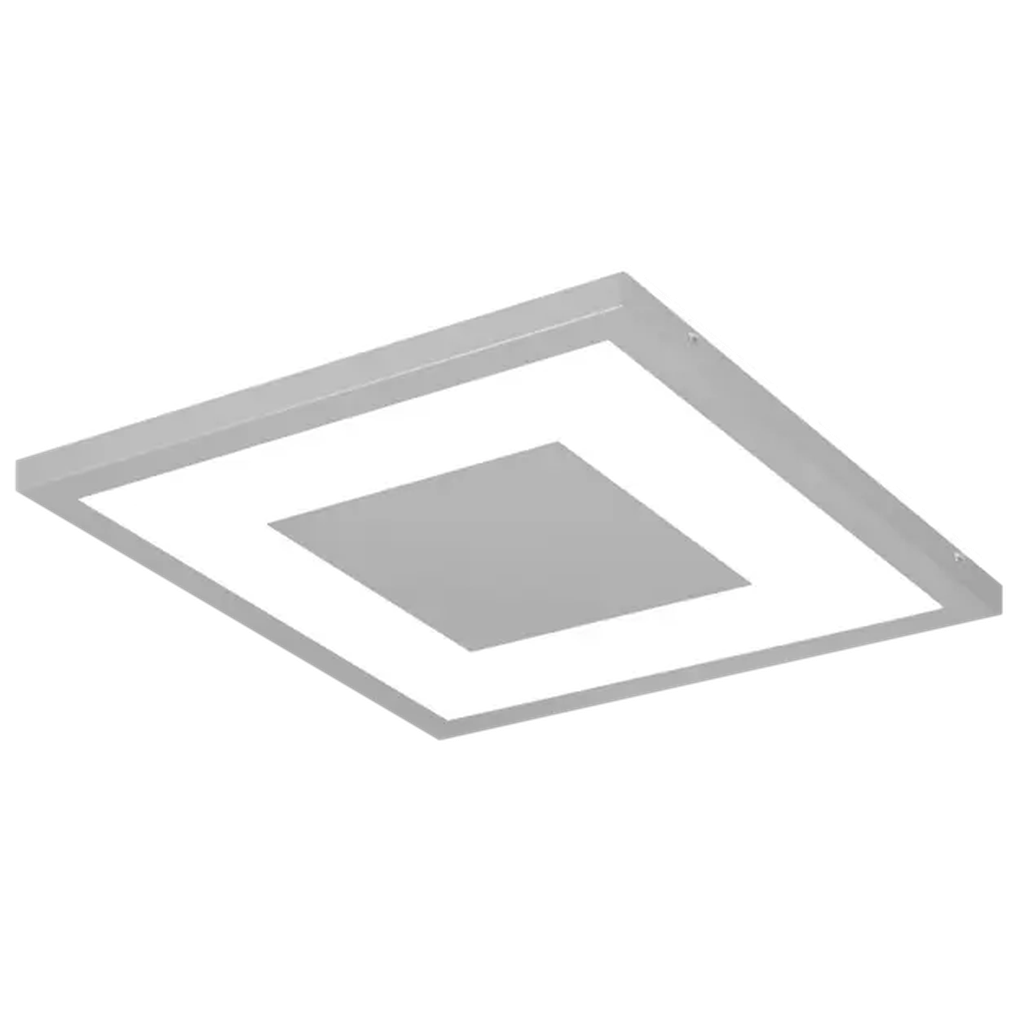

WL1027

WL1027

WALL LIGHT

The WL1027 is an energy-saving decorative lighting luminaire distinguished by its modern and elegant design, featuring high-quality LED light sources from reputable manufacturers. Its adaptable form and various mounting options make it suitable for a wide range of public spaces, including conference rooms, offices, corridors, halls, and stairways. Equipped with a premium AC power supply from well-known brands, the WL1027 achieves an impressive power factor of cos ϕ > 0.95, ensuring outstanding energy efficiency. This luminaire not only elevates the aesthetic appeal of any environment but also harmonizes beautifully with the rest of the series. Additionally, the WL1027 offers the innovative "Active+" installation option—an intelligent self-learning energy-saving system. This out-of-the-box solution combines an LED driver with a compact sensor integrated into the luminaire, making it ideal for both refurbishment projects and new installations in offices, corridors, open-plan areas, and more. The Active+ system enhances energy savings and operational efficiency through intelligent lighting control, making the WL1027 a smart choice for modern spaces.

  • Materials: Steel sheet body, electrostatically painted, microprismatic (MPRM) or OPAL diffuser.
  • Installation:

WL1027 | Architectural Wall/Ceiling Square Bulkhead Luminaire

The WL1027 is a sleek and durable LED luminaire designed to provide discreet yet effective illumination for indoor environments.

Its minimalist design and robust construction make it an ideal choice for enhancing the ambiance and safety of corridors, staircases, and reception areas.​

🔍 Key Features:

  • Modern Design: Constructed from electrostatically painted steel with an OPAL diffuser, offering a contemporary aesthetic that complements various architectural styles.​
  • Efficient Illumination: Equipped with a 31W LED light source delivering up to 2,920 lumens, ensuring energy-efficient lighting with a luminous efficacy of 94 lm/W.​
  • Color Temperature Options: Available in 3000K (warm white) to create the desired ambiance.​
  • Robust Construction: IP20-rated for protection against dust ingress, and IK04-rated for impact resistance, making it suitable for various indoor conditions.​
  • Flexible Installation: Designed for surface-mounted, wall-mounted, or suspended installation, facilitating quick and secure mounting on ceilings or walls.​
  • Finish Options: Standard finish in grey, with the option for custom RAL colors to match specific design requirements.​
  • Control Options: Available with ON/OFF drivers to accommodate different control systems.​

🏢 Ideal Applications:

  • Perfect for illuminating corridors, staircases, reception areas, and other indoor spaces where both functional lighting and aesthetic enhancement are desired.​

📐 Technical Specifications:

  • Power Consumption: 31W​
  • Luminous Flux: 2,920 lm​
  • Luminous Efficacy: 94 lm/W​
  • Color Temperature: 3000K, 4000K​
  • Color Rendering Index (CRI): ≥80​
  • Material: Steel housing with OPAL diffuser​
  • Protection Rating: IP20​
  • Impact Resistance: IK04​
  • Mounting: Surface-mounted, wall-mounted, or suspended​
  • Finish Options: Grey (Custom RAL colors available)​
  • Driver Options: FIXED OUTPUT, DALI, WIRELESS​

Enhance your indoor spaces with the WL1027, combining minimalist design with reliable performance for effective and stylish illumination.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE (W) LUMEN LENGTH (L) WIDTH (W) HEIGHT (H)
31

2980 llm

 407 407 45
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
