WL1030

WL1030

WALL LIGHT

This universal ceiling light is designed for use with LED light sources, offering a versatile lighting solution suitable for various environments. Its sleek and modern design allows it to blend seamlessly into a range of interiors, from residential spaces to commercial settings. Ideal for providing ambient or task lighting, this ceiling light ensures efficient illumination while enhancing the overall aesthetic of any room. With straightforward installation options, it serves as a practical and stylish choice for those looking to incorporate energy-efficient lighting into their spaces.

  • Materials: Powder painted housing made of aluminum profile (standard color: grey), base made of steel sheet, OPAL diffuser (PMMA) or microprismatic MPRM diffuser.
  • Installation:

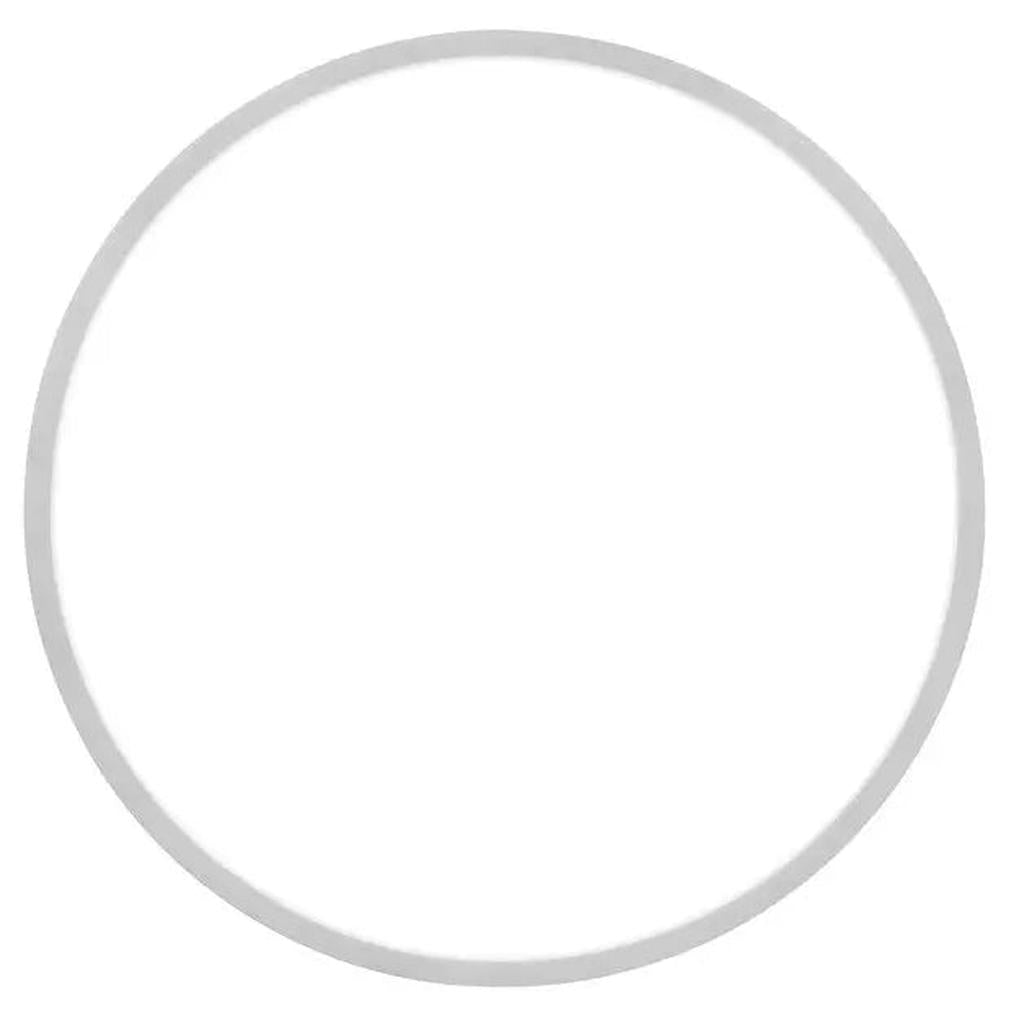

WL1030 | Architectural Wall/Ceiling Bulkhead Luminaire

The WL1030 is a sleek and durable LED luminaire designed to provide discreet yet effective illumination for indoor environments.

Its minimalist design and robust construction make it an ideal choice for enhancing the ambiance and safety of corridors, staircases, and reception areas.​

🔍 Key Features:

  • Modern Design: Constructed from an aluminum profile painted with weather-resistant paint, featuring an OPAL or MPRM diffuser for uniform light distribution.​
  • Efficient Illumination: Offers a luminous flux ranging from 1,450 to 13,700 lumens, with a luminous efficacy between 91 and 137 lm/W, depending on the model.​
  • Color Temperature Options: Available in 3000K (warm white) and 4000K (neutral white) to create the desired ambiance.​
  • Robust Construction: IP20-rated for protection against dust ingress, making it suitable for various indoor conditions.​
  • Flexible Installation: Designed for surface-mounted or suspended installation, facilitating quick and secure mounting on ceilings or walls.​
  • Finish Options: Standard finishes include white, grey, and black, with the option for custom RAL colors to match specific design requirements.​

🏢 Ideal Applications:

  • Perfect for illuminating corridors, staircases, reception areas, and other indoor spaces where both functional lighting and aesthetic enhancement are desired.​

📐 Technical Specifications:

  • Power Consumption: 16–100W​
  • Luminous Flux: 1,450–13,700 lm​
  • Luminous Efficacy: 91–137 lm/W​
  • Color Temperature: 3000K / 4000K​
  • Color Rendering Index (CRI): ≥80​
  • Material: Aluminum housing with OPAL diffuser​
  • Protection Rating: IP20​
  • Mounting: Surface-mounted or suspended​
  • Finish Options: White, Grey, Black (Custom RAL colors available)​

Enhance your indoor spaces with the WL1030, combining minimalist design with reliable performance for effective and stylish illumination.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE LUMEN DIAMETER Ø HEIGHT (H)
16 1960 llm 320 66
32 3870llm 440 66
37 4650 llm 520 66
57 7130 llm 800 66
100 12,250 llm 1065 66
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
