EXTERIOR BOLLARDS

This monolithic lighting pole is equipped with LED technology, offering a sleek and modern solution for outdoor illumination. It is available with two types of optics: asymmetric and street, allowing for tailored lighting to suit specific applications. This versatile pole is ideal for discreetly lighting building surroundings, pathways, and gardens, seamlessly integrating into various landscapes. Its minimalist design enhances the aesthetic of outdoor spaces while providing effective illumination for safety and visibility. Perfect for both residential and commercial environments, this lighting solution combines functionality with contemporary style.

  • Materials: Housing made of aluminum profile painted with paint resistant to external conditions (standard color: graphite, other colors on request), transparent plastic diffuser
  • Installation: For the ground

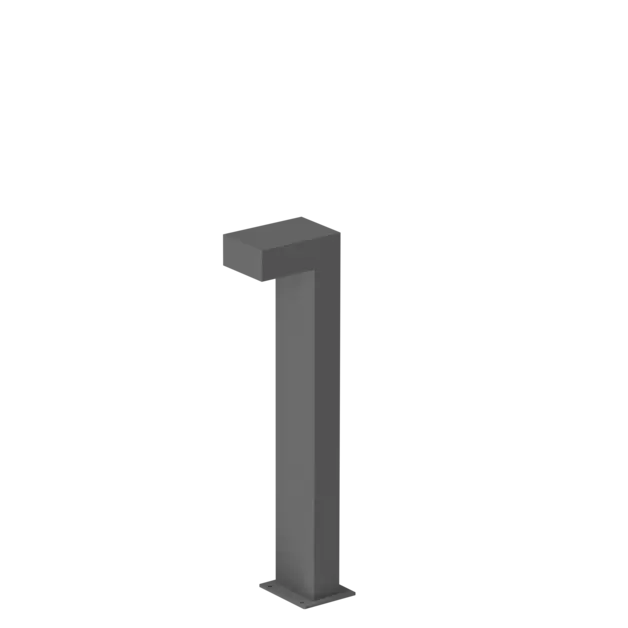

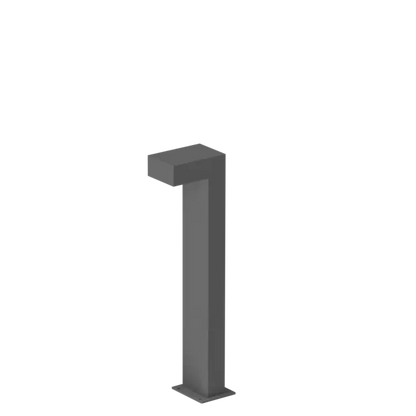

XB1001 |  Architectural Outdoor LED 50x100 Bollard

The XB1001 is a sleek and durable LED bollard luminaire designed to provide discreet yet effective illumination for outdoor environments. Its minimalist design and robust construction make it an ideal choice for enhancing the ambiance and safety of pathways, gardens, and building perimeters.​

🔍 Key Features:

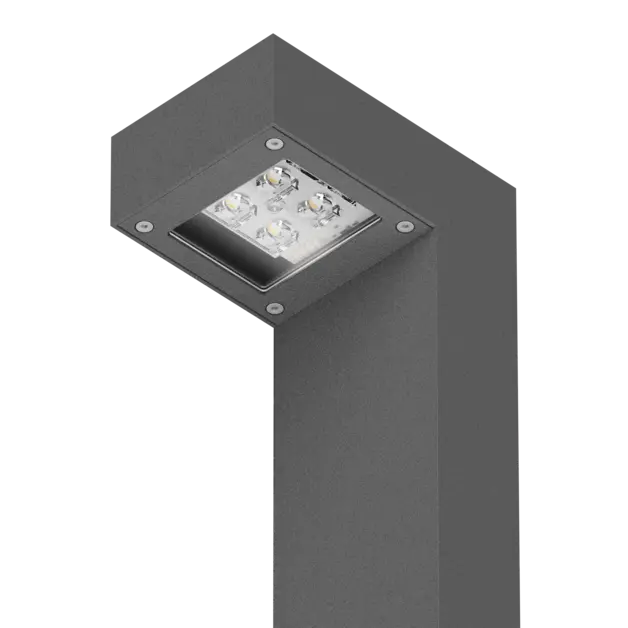

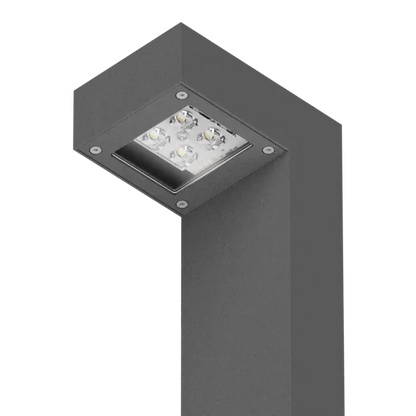

Modern Design: Features a rectangular aluminum profile with a frosted tempered glass diffuser, offering a contemporary aesthetic that complements various architectural styles.​

Efficient Illumination: Equipped with a 9W LED light source delivering up to 490 lumens, ensuring energy-efficient lighting with a luminous efficacy of 53–54 lm/W.​

Versatile Beam Angles: Available with 90° or 115° beam angles to suit different lighting requirements.​

Robust Construction: IP65-rated for protection against dust and water ingress, and IK08-rated for impact resistance, making it suitable for various outdoor conditions.​

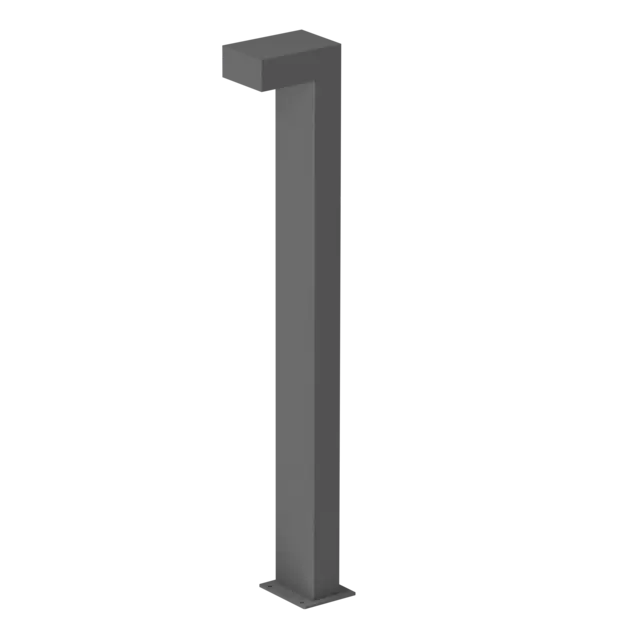

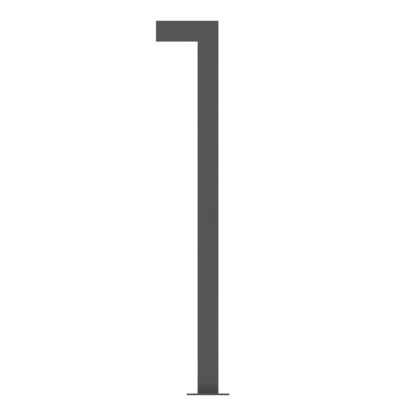

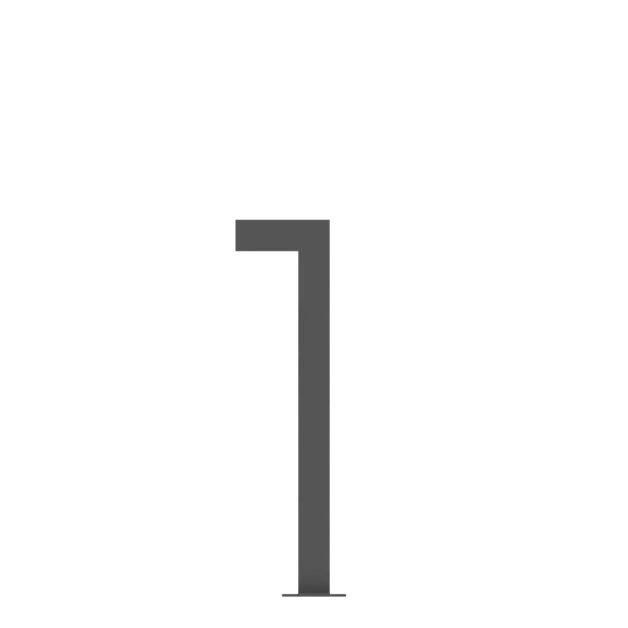

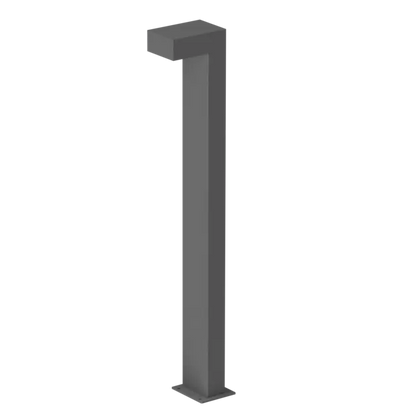

Flexible Installation: Designed for ground mounting with optional pole heights of 500mm, 1000mm, or 1800mm, allowing customization based on project needs.​

Color Temperature Options: Available in 3000K (warm white) and 4000K (neutral white) to create the desired ambiance.​

Finish Options: Standard finish in anthracite, with options for black or grey upon request.​

🏢 Ideal Applications:

Perfect for illuminating pathways, gardens, building surroundings, parking areas, and parks, providing both functional lighting and aesthetic enhancement.​

📐 Technical Specifications:

Power Consumption: 9W​

Luminous Flux: 480–490 lm​

Luminous Efficacy: 53–54 lm/W​

Color Temperature: 3000K / 4000K​

Color Rendering Index (CRI): ≥80​

Beam Angles: 90° / 115°​

Material: Aluminum housing with frosted tempered glass diffuser​

Protection Rating: IP65​

Impact Resistance: IK08​

Operating Temperature Range: -20°C to +40°C​

Mounting: Ground-mounted with optional pole heights (500mm, 1000mm, 1800mm)​

Finish Options: Anthracite (standard), Black, Grey​

Enhance your outdoor spaces with the XB1001, combining minimalist design with reliable performance for effective and stylish illumination.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE llm/W DIAMETER Ø HEIGHT (H)
5

400 llm

 100 50
10

745 llm

 100 50
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
