XB1002
XB1002
EXTERIOR BOLLARDS
This luminaire, designed for LED light sources in the form of a round pillar, offers a sophisticated solution for discreetly illuminating building surroundings, pathways, and gardens. Its sleek, minimalist design allows it to integrate seamlessly into various outdoor settings while providing effective and subtle lighting. Ideal for enhancing safety and visibility, this luminaire enhances the aesthetic appeal of any landscape, making it suitable for both residential and commercial applications.
- Materials: Housing made of aluminum profile painted with paint resistant to external conditions (standard color: graphite, other colors on request), transparent plastic diffuser.
- Installation: In ground
Link to this
XB1002 | Contemporary Dark Skies Compliant Outdoor Bollard

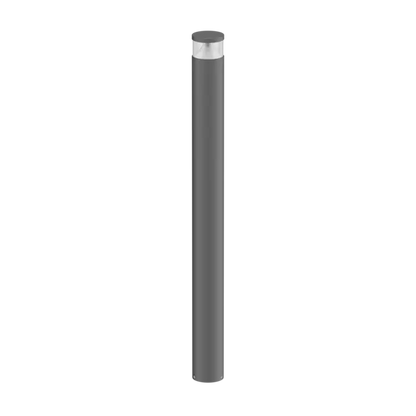

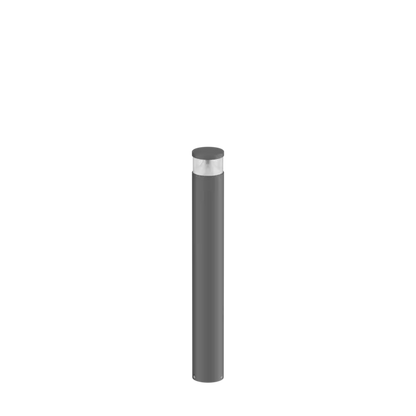

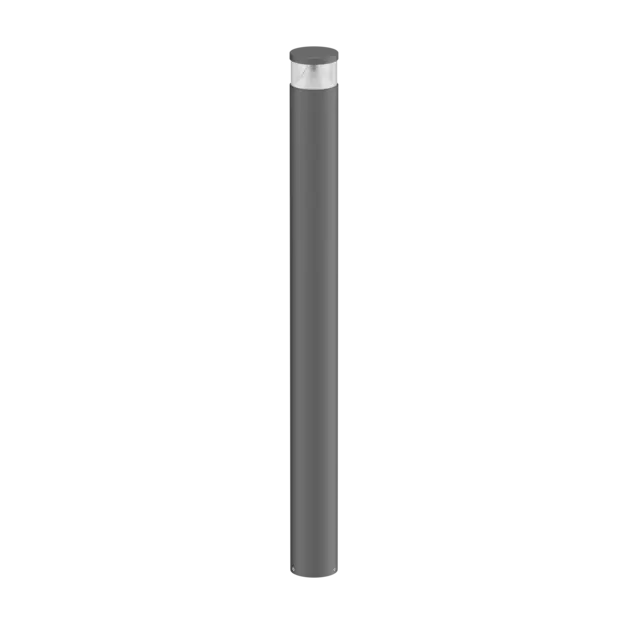

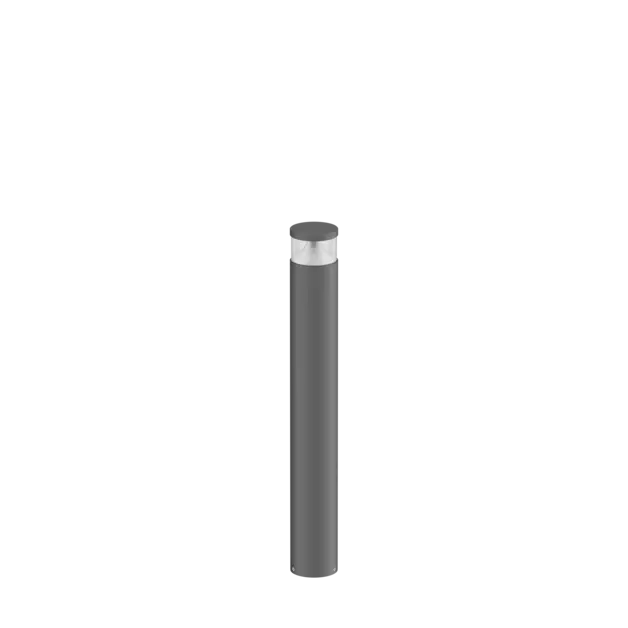

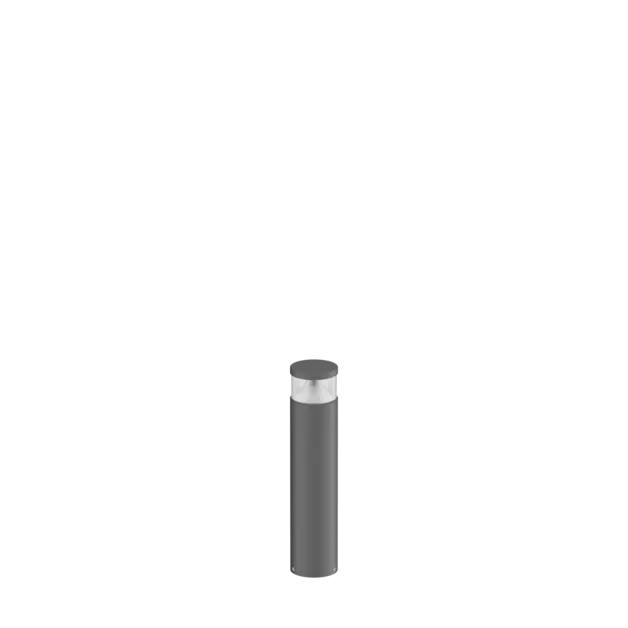

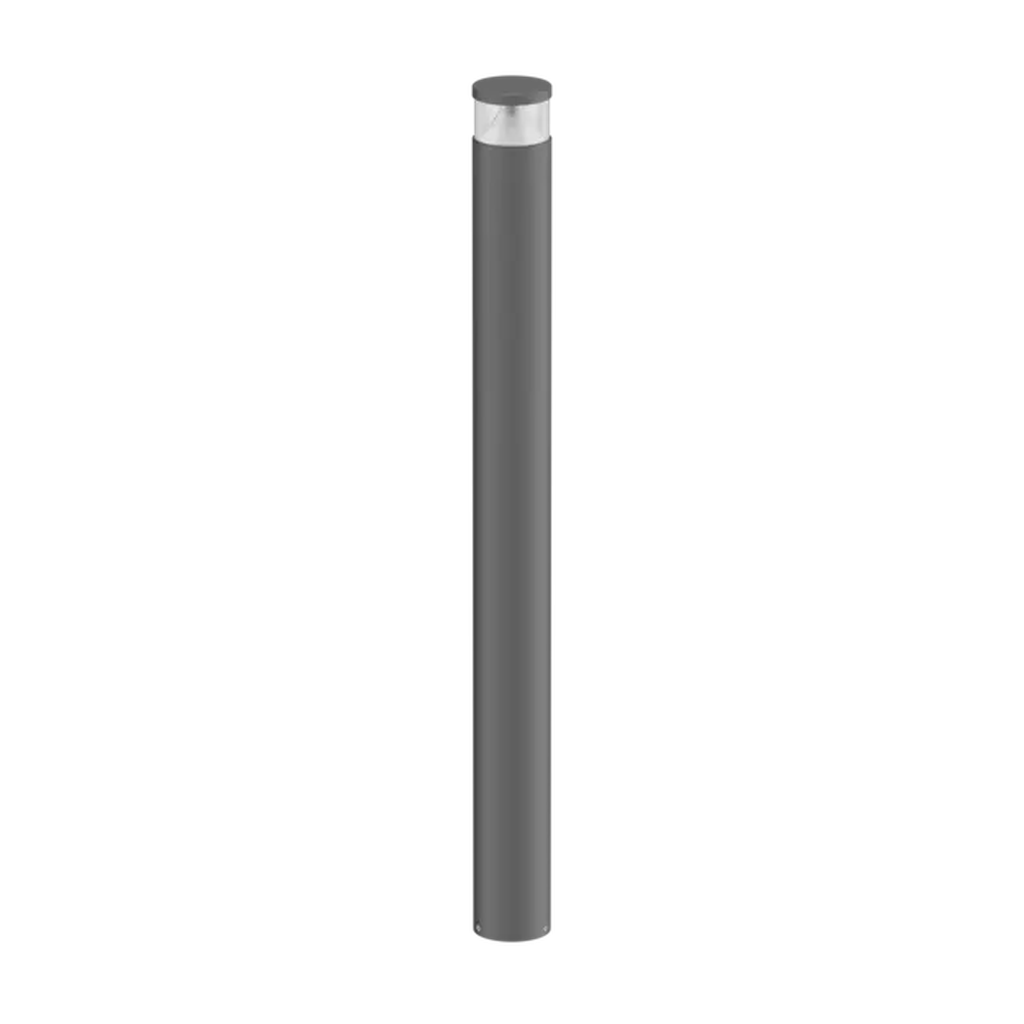

The XB1002 is a sleek, cylindrical LED bollard luminaire designed to provide discreet yet effective illumination for outdoor environments. Its minimalist design and robust construction make it an ideal choice for enhancing the ambiance and safety of pathways, gardens, and building perimeters.
🔍 Key Features:
Modern Design: Constructed from an aluminum profile painted with weather-resistant paint, featuring a transparent plastic diffuser.
Efficient Illumination: Available in 5W and 10W versions, delivering luminous flux ranging from 435 to 900 lumens, ensuring energy-efficient lighting with a luminous efficacy up to 90 lm/W.
Versatile Beam Angles: Offers light distribution options of 90°, 180°, and 360° to suit various lighting requirements.
Color Temperature Options: Available in 3000K (warm white) and 4000K (neutral white) to create the desired ambiance.
Robust Construction: IP65-rated for protection against dust and water ingress, and IK08-rated for impact resistance, making it suitable for various outdoor conditions.
Flexible Installation: Designed for ground mounting with a standard height of 360mm and a diameter of 80mm, facilitating quick and secure installation.
Control Options: Available with ON/OFF or DALI drivers to accommodate different control systems.
Finish Options: Standard finishes include grey, black, and anthracite, with the option for custom RAL colors to match specific design requirements.
🏢 Ideal Applications:
Perfect for illuminating pathways, gardens, building surroundings, parking areas, and parks, providing both functional lighting and aesthetic enhancement.
📐 Technical Specifications:
Power Consumption: 5W / 10W
Luminous Flux: 435–900 lm
Luminous Efficacy: Up to 90 lm/W
Color Temperature: 3000K / 4000K
Color Rendering Index (CRI): ≥80
Beam Angles: 90°, 180°, 360°
Material: Aluminum housing with transparent plastic diffuser
Protection Rating: IP65
Impact Resistance: IK08
Dimensions: Height: 360mm; Diameter: 80mm
Mounting: Ground-mounted
Driver Options: ON/OFF, DALI, CASAMBI
Finish Options: Grey, Black, Anthracite (Custom RAL colors available)
Enhance your outdoor spaces with the XB1002, combining minimalist design with reliable performance for effective and stylish illumination.
DIMENSIONS
NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.
WATTAGE (W) | LUMINAIRE llm/W | DIAMETER Ø | HEIGHT (H) |
---|---|---|---|
5 |
450 llm |
360 | 80 |
10 |
520 llm |
360 | 80 |
