EXTERIOR BOLLARDS

This LED architectural luminaire is an excellent choice for discreetly illuminating building surroundings, pathways, and gardens. Its refined design allows it to blend harmoniously with various outdoor environments while providing effective lighting. Additionally, the luminaire can be customised with a paint finish in any RAL colour, ensuring it complements the aesthetic of its surroundings. Ideal for enhancing safety and ambiance, this versatile lighting solution is suitable for both residential and commercial applications.

  • Materials: Housing made of aluminum painted with paint resistant to external conditions (standard color: graphite, other colors on request), diffuser made of tempered glass.
  • Installation:

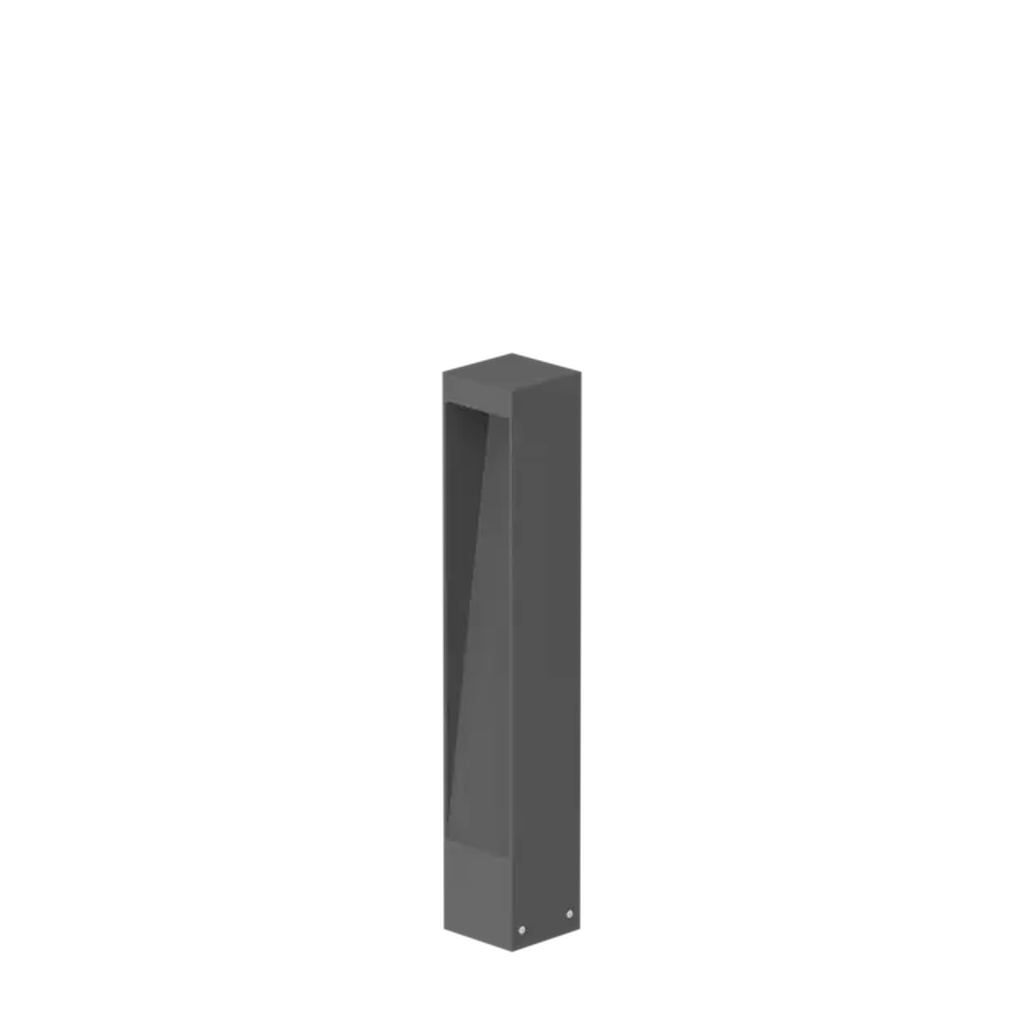

XB1003 | Contemporary LED Dark Skies Compliant Bollard Luminaire

The XB1003 is a sleek and robust LED bollard luminaire designed to enhance outdoor environments with both functionality and aesthetic appeal.

Its durable construction and high ingress protection rating make it ideal for pathways, gardens, and building surroundings.​

🔍 Key Features:

Durable Construction: Crafted from aluminum painted with weather-resistant paint, ensuring longevity and resistance to environmental factors.​

  • High Ingress Protection: IP65-rated for protection against dust and water ingress, suitable for challenging outdoor environments.​
  • Impact Resistance: IK10-rated, offering high resistance to mechanical impacts.​
  • Versatile Mounting Options: Designed for ground installation with available accessories for concrete or ground bases, providing flexibility in installation.​
  • Energy-Efficient Performance: Offers a power range of 5–10W, delivering luminous flux between 460–880 lm with an efficacy of up to 100 lm/W.​
  • Advanced Optical Systems: Equipped with LNS optics, providing uniform light distribution for enhanced visibility.​
  • Smart Control Compatibility: Available with ON/OFF drivers, facilitating integration with modern lighting control systems.​
  • Color Temperature Options: Available in 3000K and 4000K, catering to different ambiance requirements.​
  • Customization: Standard finish in anthracite, with the option for custom RAL colors to match specific design needs.​

🏢 Ideal Applications:

  • Perfect for illuminating building surroundings, paths, gardens, parks, and other architectural settings where both form and function are paramount.​

📐 Technical Specifications:

  • Power Consumption: 5–10W​
  • Luminous Flux: 460–880 lm​
  • Efficacy: Up to 100 lm/W​
  • Color Temperatures: 3000K / 4000K​
  • CRI: ≥80​
  • Driver Options: FIXED OUTPUT, DALI, WIRELESS​
  • IP Rating: IP65​
  • Impact Resistance: IK10​
  • Operating Temperature: -25°C to +40°C​
  • Finish Options: Anthracite, Custom RAL

Enhance your outdoor lighting design with the XB1003, where durability meets elegance in perfect harmony.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE (W) LUMEN DIAMETER (Ø) HEIGHT (H)
5

210 llm

 100 65
10

400 llm

 100 65
