XB1004

XB1004

EXTERIOR BOLLARDS

This LED architectural luminaire is the perfect solution for discreetly illuminating building surroundings, pathways, and gardens. Its sleek and unobtrusive design ensures it integrates seamlessly into various outdoor environments while delivering effective lighting. Furthermore, the luminaire offers the option of being customised with a paint finish in any RAL colour, allowing it to match or enhance the aesthetic of its surroundings. Ideal for both residential and commercial settings, this versatile lighting solution enhances safety and ambiance in outdoor spaces.

  • Materials: Housing made of aluminum painted with paint resistant to external conditions (standard color: graphite, other colors on request), diffuser made of tempered glass.
  • Installation:

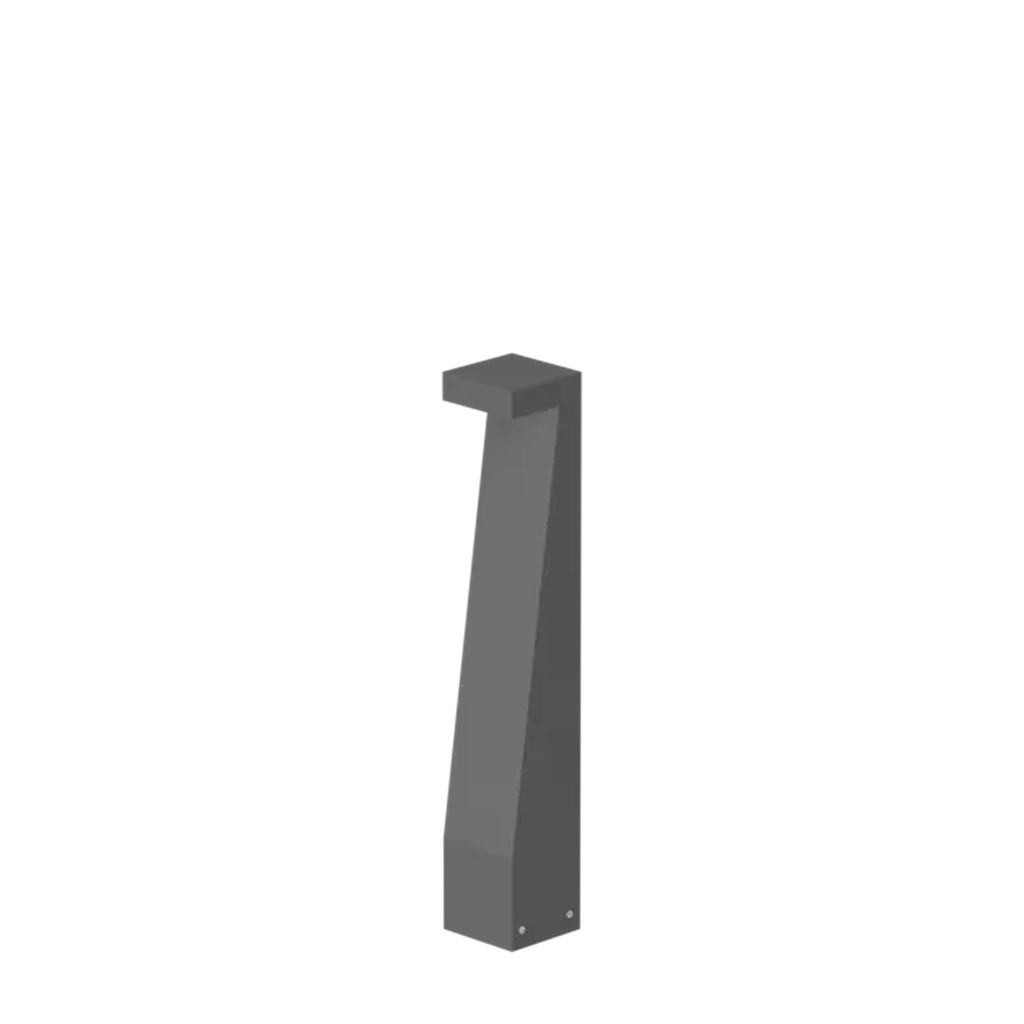

XB1004 | Architectural LED Dark Skies Compliant Bollard Luminaire

The XB1004 is a sleek and robust LED bollard luminaire designed to enhance outdoor environments with both functionality and aesthetic appeal.

Its durable construction and high ingress protection rating make it ideal for pathways, gardens, and building surroundings.​

🔍 Key Features:

  • Durable Construction: Crafted from aluminum painted with weather-resistant paint, ensuring longevity and resistance to environmental factors.​
  • High Ingress Protection: IP65-rated for protection against dust and water ingress, suitable for challenging outdoor environments.​
  • Impact Resistance: IK10-rated, offering high resistance to mechanical impacts.​
  • Versatile Mounting Options: Designed for ground installation with available accessories for concrete or ground bases, providing flexibility in installation.​
  • Energy-Efficient Performance: Offers a power range of 5–10W, delivering luminous flux between 460–880 lm with an efficacy of up to 100 lm/W.​pxf.pl+1pxf.pl+1
  • Advanced Optical Systems: Equipped with LNS optics, providing uniform light distribution for enhanced visibility.​
  • Smart Control Compatibility: Available with ON/OFF drivers, facilitating integration with modern lighting control systems.​
  • Color Temperature Options: Available in 3000K and 4000K, catering to different ambiance requirements.​
  • Customization: Standard finish in anthracite, with the option for custom RAL colors to match specific design needs.​

🏢 Ideal Applications:

  • Perfect for illuminating building surroundings, paths, gardens, parks, and other architectural settings where both form and function are paramount.​

📐 Technical Specifications:

  • Power Consumption: 5–10W​
  • Luminous Flux: 460–880 lm​
  • Efficacy: Up to 100 lm/W​
  • Color Temperatures: 3000K / 4000K​
  • CRI: ≥80​
  • Driver Options: ON/OFF​
  • IP Rating: IP65​
  • Impact Resistance: IK10​
  • Operating Temperature: -25°C to +40°C​
  • Finish Options: Anthracite, Custom RAL​

Enhance your outdoor lighting design with the XB1004, where durability meets elegance in perfect harmony.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE (W) LUMEN DIAMETER Ø HEIGHT (H)
5

210 llm

 100 65
10

400 llm

 100 65
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
